Deep groove ball bearing 6010-RZ – 50×80×16 mm

2 offers · 2 manufacturers · net prices from PLN 46.23 · dispatch in 2 working days

6010-RZ is a deep groove ball bearing with a 50 mm bore, 80 mm outside diameter and 16 mm width, with one non-contact rubber seal (RZ). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 50 mm
outside D: 80 mm
width B: 16 mm
sealing: RZ
mass: 0.25 kg
net price from: PLN 46.23

Dimension drawing 6010-RZ – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	50 mm
D – outside diameter	80 mm
B – width	16 mm
dynamic load rating C	22.9 kN (per SKF catalogue)
static load rating C₀	16 kN (per SKF catalogue)
mass	0.25 kg

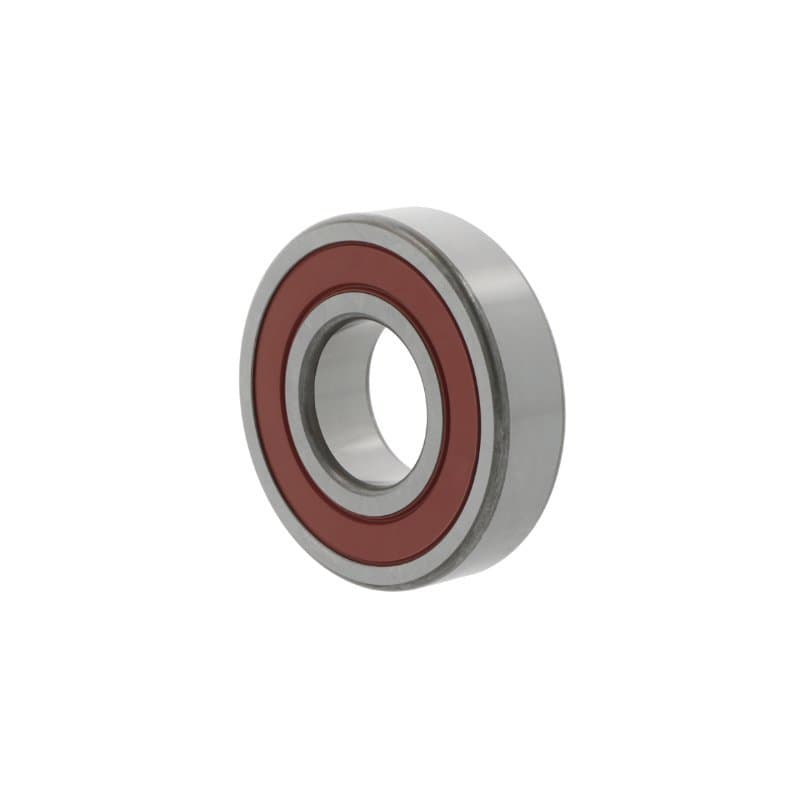

Pictured: NTN 6010-LB. Every brand has its own product page with photo and full description.

Brands and prices 6010-RZ

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NTN	6010-LB	CN	PLN 46.23PLN 56.86 gross	supplier stockdispatch in 2 working days
SNR	6010 HVZZ	CN	PLN 88.88PLN 109.32 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6010

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6010-RZ

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NTN	6010-LB	RZ – rubber non-contact seal, one side
SNR	6010 HVZZ	RZ – rubber non-contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6010-RZ are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6010-RZ

What are the dimensions of bearing 6010-RZ?

Bore 50 mm, outside diameter 80 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.

Are 6010-RZ bearings from different brands interchangeable?

Yes. 6010-LB NTN, 6010 HVZZ SNR are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6010-RZ cost?

At Castomer from PLN 46.23 to PLN 88.88 net per piece depending on the manufacturer (NTN, SNR). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6010-RZ?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
