Deep groove ball bearing 6013-Z – 65×100×18 mm
8 offers · 5 manufacturers · net prices from PLN 47.03 · dispatch in 2 working days
6013-Z is a deep groove ball bearing with a 65 mm bore, 100 mm outside diameter and 18 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 65 mm
- outside D
- 100 mm
- width B
- 18 mm
- sealing
- Z
- mass
- 0.44 kg
- net price from
- PLN 47.03
Brands and prices 6013-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

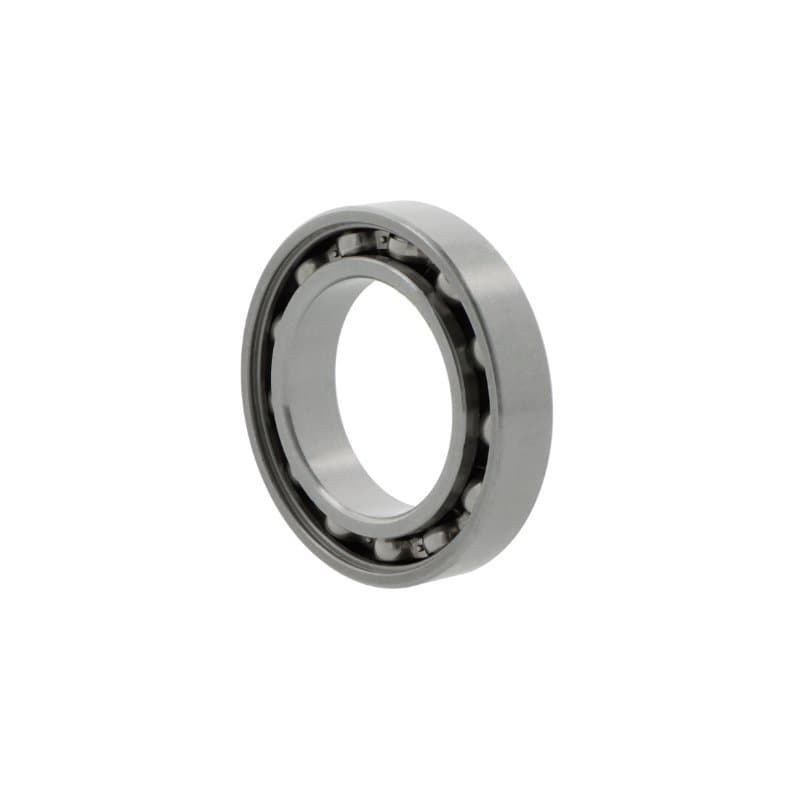

| NACHI | 6013 ZEreinforced design, higher load rating | CN | PLN 47.03PLN 57.85 gross | supplier stockdispatch in 2 working days | |
| FAG | 6013-ZRC3 | C3 | PLN 72.25PLN 88.87 gross | supplier stockdispatch in 2 working days | |
| FAG | 6013-ZR | CN | PLN 74.63PLN 91.79 gross | supplier stockdispatch in 2 working days | |
| NSK | 6013 Z | CN | PLN 84.03PLN 103.36 gross | supplier stockdispatch in 2 working days | |
| SKF | 6013-Z | CN | PLN 86.18PLN 106.00 gross | supplier stockdispatch in 2 working days | |
| SKF | 6013-ZC3 | C3 | PLN 86.18PLN 106.00 gross | supplier stockdispatch in 2 working days | |
| NTN | 6013-Z | CN | PLN 93.63PLN 115.16 gross | supplier stockdispatch in 2 working days |
▸Special designs 6013-Z (1) – stainless steel, snap ring, manufacturer specials
| NTN | 6013-ZNRsnap ring groove with snap ring | CN | PLN 88.93PLN 109.38 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6013
The same size in another design – open, shielded, tapered bore.
- 6013Open33 offers · from PLN 16.63 net
- 6013-2Z2Z – metal shields, both sides17 offers · from PLN 39.91 net
- 6013-2RS2RS – rubber contact seals, both sides15 offers · from PLN 42.66 net
- 6013-2RZ2RZ – rubber non-contact seals, both sides4 offers · from PLN 55.83 net
- 6013-RSRS – rubber contact seal, one side2 offers · from PLN 94.02 net
- 6013 KOpen · Tapered bore1 offer · from PLN 51.67 net
How manufacturers designate 6013-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6013-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6013-Z
What are the dimensions of bearing 6013-Z?
Bore 65 mm, outside diameter 100 mm, width 18 mm. Standardised dimensions – the same for every manufacturer.
Are 6013-Z bearings from different brands interchangeable?
Yes. 6013-ZRC3 FAG, 6013-Z SKF, 6013-Z NTN, 6013 ZE NACHI, 6013 Z NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6013-Z cost?
At Castomer from PLN 47.03 to PLN 93.63 net per piece depending on the manufacturer (FAG, SKF, NTN, NACHI, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6013-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
