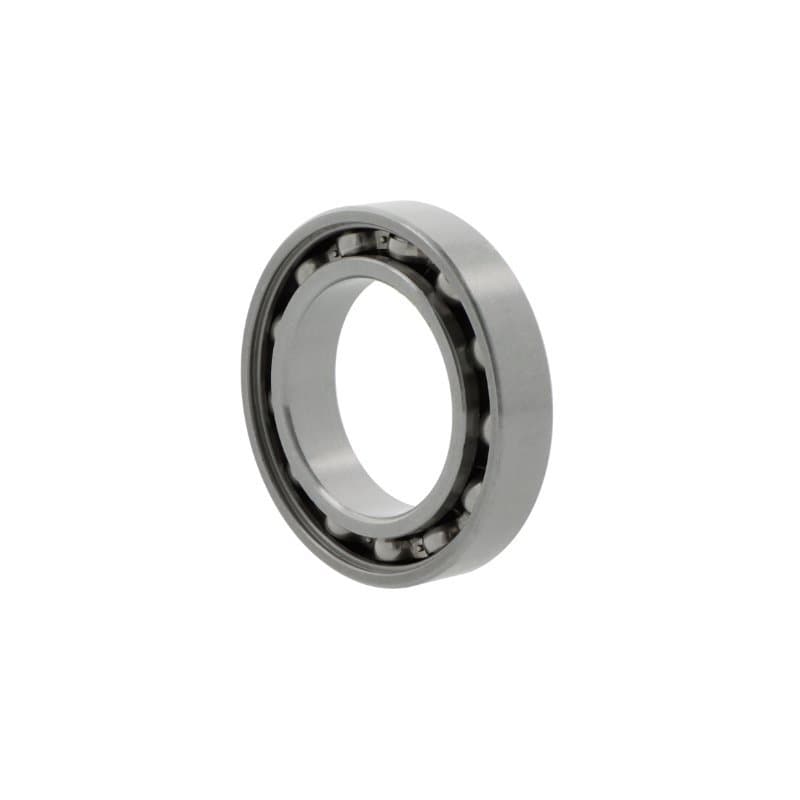

Deep groove ball bearing 6016-Z – 80×125×22 mm
4 offers · 3 manufacturers · net prices from PLN 96.50 · dispatch in 2 working days
6016-Z is a deep groove ball bearing with a 80 mm bore, 125 mm outside diameter and 22 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 80 mm
- outside D
- 125 mm
- width B
- 22 mm
- sealing
- Z
- mass
- 0.86 kg
- net price from
- PLN 96.50
Brands and prices 6016-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NACHI | 6016 Z | CN | PLN 96.50PLN 118.70 gross | supplier stockdispatch in 2 working days | |
| FAG | 6016-ZRC3 | C3 | PLN 128.25PLN 157.75 gross | supplier stockdispatch in 2 working days | |
| FAG | 6016-ZR | CN | PLN 136.02PLN 167.30 gross | supplier stockdispatch in 2 working days | |
| NSK | 6016 Z | CN | PLN 146.07PLN 179.67 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6016
The same size in another design – open, shielded, tapered bore.
- 6016Open40 offers · from PLN 76.73 net
- 6016-2Z2Z – metal shields, both sides16 offers · from PLN 58.76 net
- 6016-2RS2RS – rubber contact seals, both sides13 offers · from PLN 94.23 net
- 6016-2RZ2RZ – rubber non-contact seals, both sides1 offer · from PLN 126.15 net
- 6016-RSRS – rubber contact seal, one side1 offer · from PLN 136.13 net
How manufacturers designate 6016-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6016-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6016-Z
What are the dimensions of bearing 6016-Z?
Bore 80 mm, outside diameter 125 mm, width 22 mm. Standardised dimensions – the same for every manufacturer.
Are 6016-Z bearings from different brands interchangeable?
Yes. 6016-ZRC3 FAG, 6016 Z NACHI, 6016 Z NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6016-Z cost?
At Castomer from PLN 96.50 to PLN 146.07 net per piece depending on the manufacturer (FAG, NACHI, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6016-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
