Deep groove ball bearing 6017-Z – 85×130×22 mm
6 offers · 5 manufacturers · net prices from PLN 107.84 · dispatch in 2 working days
6017-Z is a deep groove ball bearing with a 85 mm bore, 130 mm outside diameter and 22 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 85 mm
- outside D
- 130 mm
- width B
- 22 mm
- sealing
- Z
- mass
- 0.91 kg
- net price from
- PLN 107.84
Brands and prices 6017-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

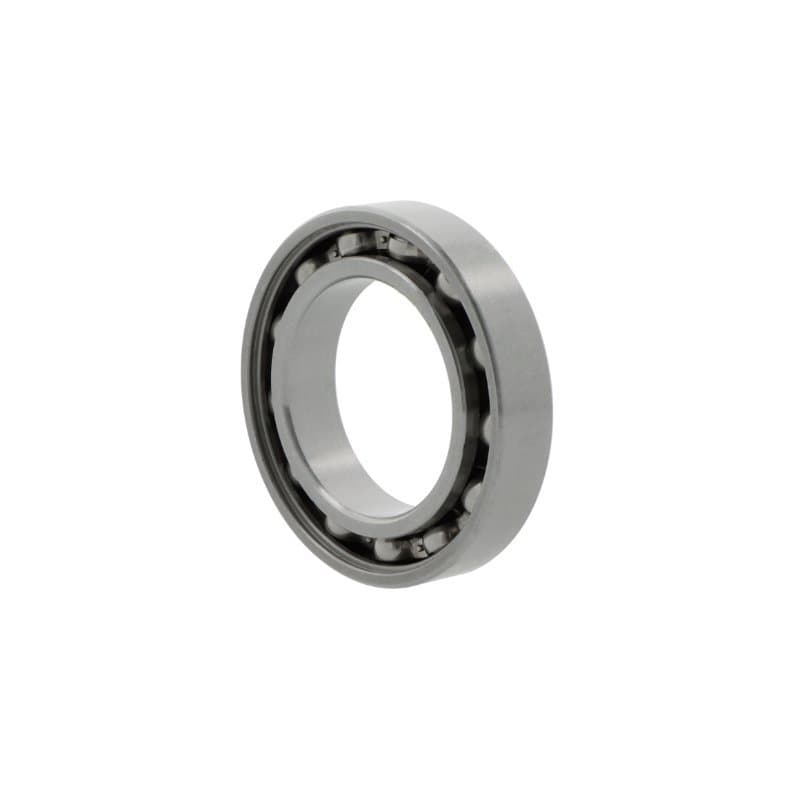

| NACHI | 6017 Z | CN | PLN 107.84PLN 132.64 gross | supplier stockdispatch in 2 working days | |
| FAG | 6017-ZRC3 | C3 | PLN 134.84PLN 165.85 gross | supplier stockdispatch in 2 working days | |
| FAG | 6017-ZR | CN | PLN 134.89PLN 165.91 gross | supplier stockdispatch in 2 working days | |
| NTN | 6017-Z | CN | PLN 151.63PLN 186.50 gross | supplier stockdispatch in 2 working days | |
| SKF | 6017-Z | CN | PLN 169.18PLN 208.09 gross | supplier stockdispatch in 2 working days | |
| NSK | 6017 Z | CN | PLN 175.07PLN 215.34 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6017
The same size in another design – open, shielded, tapered bore.
- 6017Open26 offers · from PLN 86.02 net
- 6017-2Z2Z – metal shields, both sides15 offers · from PLN 98.77 net
- 6017-2RS2RS – rubber contact seals, both sides12 offers · from PLN 109.41 net
- 6017-2RZ2RZ – rubber non-contact seals, both sides1 offer · from PLN 179.38 net
- 6017-RSRS – rubber contact seal, one side1 offer · from PLN 197.37 net
How manufacturers designate 6017-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6017-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6017-Z
What are the dimensions of bearing 6017-Z?
Bore 85 mm, outside diameter 130 mm, width 22 mm. Standardised dimensions – the same for every manufacturer.
Are 6017-Z bearings from different brands interchangeable?
Yes. 6017-ZRC3 FAG, 6017 Z NACHI, 6017-Z NTN, 6017-Z SKF, 6017 Z NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6017-Z cost?
At Castomer from PLN 107.84 to PLN 175.07 net per piece depending on the manufacturer (FAG, NACHI, NTN, SKF, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6017-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
