Deep groove ball bearing 6018-Z – 90×140×24 mm

7 offers · 5 manufacturers · net prices from PLN 134.41 · dispatch in 2 working days

6018-Z is a deep groove ball bearing with a 90 mm bore, 140 mm outside diameter and 24 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 90 mm
outside D: 140 mm
width B: 24 mm
sealing: Z
mass: 1.18 kg
net price from: PLN 134.41

Dimension drawing 6018-Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	90 mm
D – outside diameter	140 mm
B – width	24 mm
dynamic load rating C	60.5 kN (per SKF catalogue)
static load rating C₀	50 kN (per SKF catalogue)
mass	1.18 kg

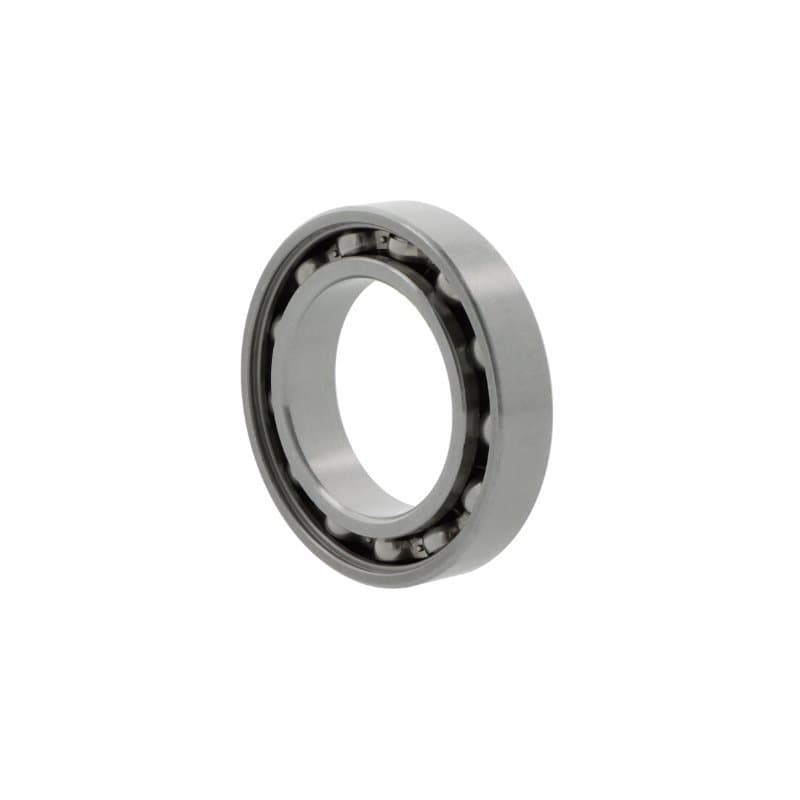

Pictured: NACHI 6018 Z. Every brand has its own product page with photo and full description.

Brands and prices 6018-Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6018 Z	CN	PLN 134.41PLN 165.32 gross	supplier stockdispatch in 2 working days
FAG	6018-ZR	CN	PLN 160.00PLN 196.80 gross	supplier stockdispatch in 2 working days
FAG	6018-ZRC3	C3	PLN 160.00PLN 196.80 gross	supplier stockdispatch in 2 working days
NTN	6018-Z	CN	PLN 168.37PLN 207.10 gross	supplier stockdispatch in 2 working days
NSK	6018-ZC3	C3	PLN 194.24PLN 238.92 gross	supplier stockdispatch in 2 working days
NSK	6018 Z	CN	PLN 194.29PLN 238.98 gross	supplier stockdispatch in 2 working days
SKF	6018-Z	CN	PLN 196.56PLN 241.77 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6018

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6018-Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6018-ZR	Z – metal shield, one side
NSK	6018-ZC3	Z – metal shield, one side
NACHI	6018 Z	Z – metal shield, one side
NTN	6018-Z	Z – metal shield, one side
SKF	6018-Z	Z – metal shield, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6018-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6018-Z

What are the dimensions of bearing 6018-Z?

Bore 90 mm, outside diameter 140 mm, width 24 mm. Standardised dimensions – the same for every manufacturer.

Are 6018-Z bearings from different brands interchangeable?

Yes. 6018-ZR FAG, 6018-ZC3 NSK, 6018 Z NACHI, 6018-Z NTN, 6018-Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6018-Z cost?

At Castomer from PLN 134.41 to PLN 196.56 net per piece depending on the manufacturer (FAG, NSK, NACHI, NTN, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6018-Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
