Deep groove ball bearing 6019-Z – 95×145×24 mm
5 offers · 5 manufacturers · net prices from PLN 149.52 · dispatch in 2 working days
6019-Z is a deep groove ball bearing with a 95 mm bore, 145 mm outside diameter and 24 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 95 mm
- outside D
- 145 mm
- width B
- 24 mm
- sealing
- Z
- mass
- 1.23 kg
- net price from
- PLN 149.52
Brands and prices 6019-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

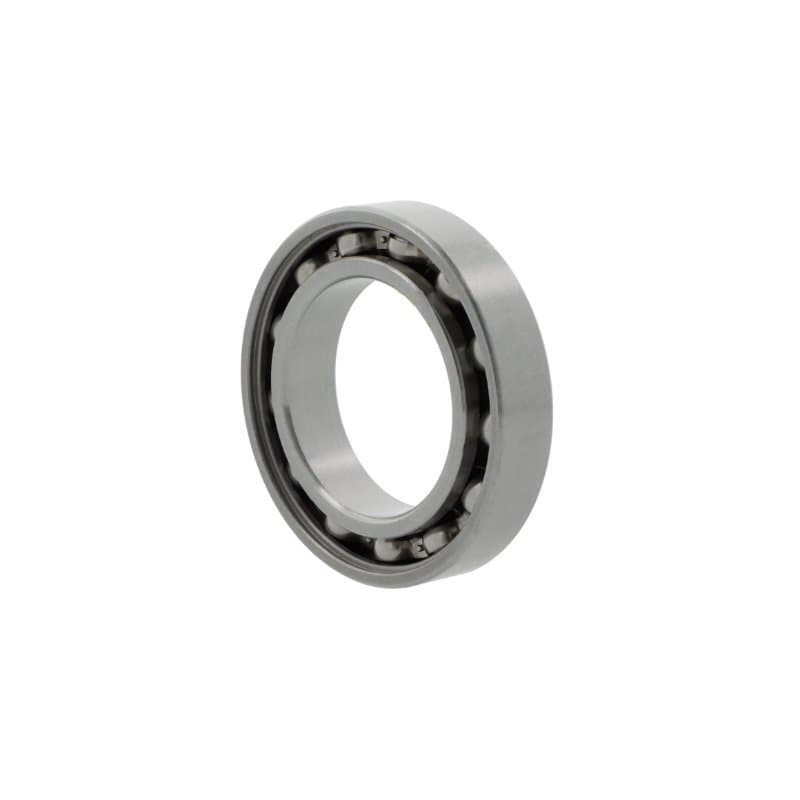

| NACHI | 6019 Z | CN | PLN 149.52PLN 183.91 gross | supplier stockdispatch in 2 working days | |
| NTN | 6019-Z | CN | PLN 203.42PLN 250.21 gross | supplier stockdispatch in 2 working days | |
| SKF | 6019-Z | CN | PLN 212.06PLN 260.83 gross | supplier stockdispatch in 2 working days | |
| FAG | 6019-ZR | CN | PLN 216.16PLN 265.88 gross | supplier stockdispatch in 2 working days | |
| NSK | 6019-Z | CN | PLN 234.79PLN 288.79 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6019
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 6019-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6019-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6019-Z
What are the dimensions of bearing 6019-Z?
Bore 95 mm, outside diameter 145 mm, width 24 mm. Standardised dimensions – the same for every manufacturer.
Are 6019-Z bearings from different brands interchangeable?
Yes. 6019 Z NACHI, 6019-Z NTN, 6019-Z SKF, 6019-ZR FAG, 6019-Z NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6019-Z cost?
At Castomer from PLN 149.52 to PLN 234.79 net per piece depending on the manufacturer (NACHI, NTN, SKF, FAG, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6019-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
