Deep groove ball bearing 6020-Z – 100×150×24 mm
8 offers · 5 manufacturers · net prices from PLN 171.23 · dispatch in 2 working days
6020-Z is a deep groove ball bearing with a 100 mm bore, 150 mm outside diameter and 24 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 100 mm
- outside D
- 150 mm
- width B
- 24 mm
- sealing
- Z
- mass
- 1.25 kg
- net price from
- PLN 171.23
Brands and prices 6020-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

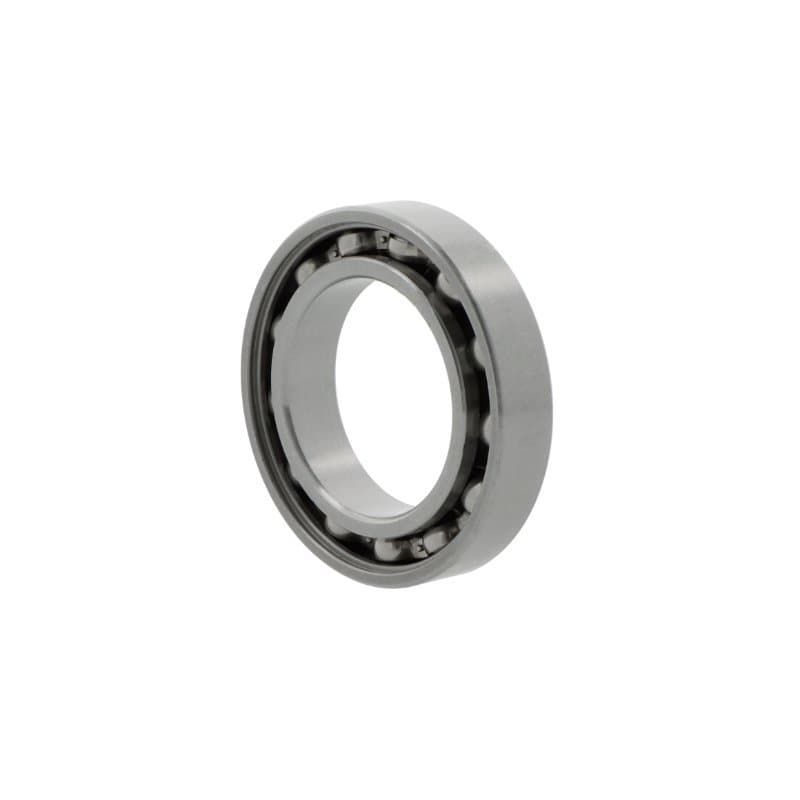

| NACHI | 6020 Z | CN | PLN 171.23PLN 210.61 gross | supplier stockdispatch in 2 working days | |
| FAG | 6020-ZR | CN | PLN 205.20PLN 252.40 gross | supplier stockdispatch in 2 working days | |
| FAG | 6020-ZRC3 | C3 | PLN 205.20PLN 252.40 gross | supplier stockdispatch in 2 working days | |
| NTN | 6020-Z | CN | PLN 214.87PLN 264.29 gross | supplier stockdispatch in 2 working days | |
| SKF | 6020-Z | CN | PLN 225.56PLN 277.44 gross | supplier stockdispatch in 2 working days | |
| NSK | 6020-Z | CN | PLN 278.75PLN 342.86 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6020
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 6020-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6020-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6020-Z
What are the dimensions of bearing 6020-Z?
Bore 100 mm, outside diameter 150 mm, width 24 mm. Standardised dimensions – the same for every manufacturer.
Are 6020-Z bearings from different brands interchangeable?
Yes. 6020-ZR FAG, 6020-Z NTN, 6020-Z NSK, 6020 Z NACHI, 6020-Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6020-Z cost?
At Castomer from PLN 171.23 to PLN 278.75 net per piece depending on the manufacturer (FAG, NTN, NSK, NACHI, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6020-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
