Deep groove ball bearing 6022-Z – 110×170×28 mm
3 offers · 3 manufacturers · net prices from PLN 264.49 · dispatch in 2 working days

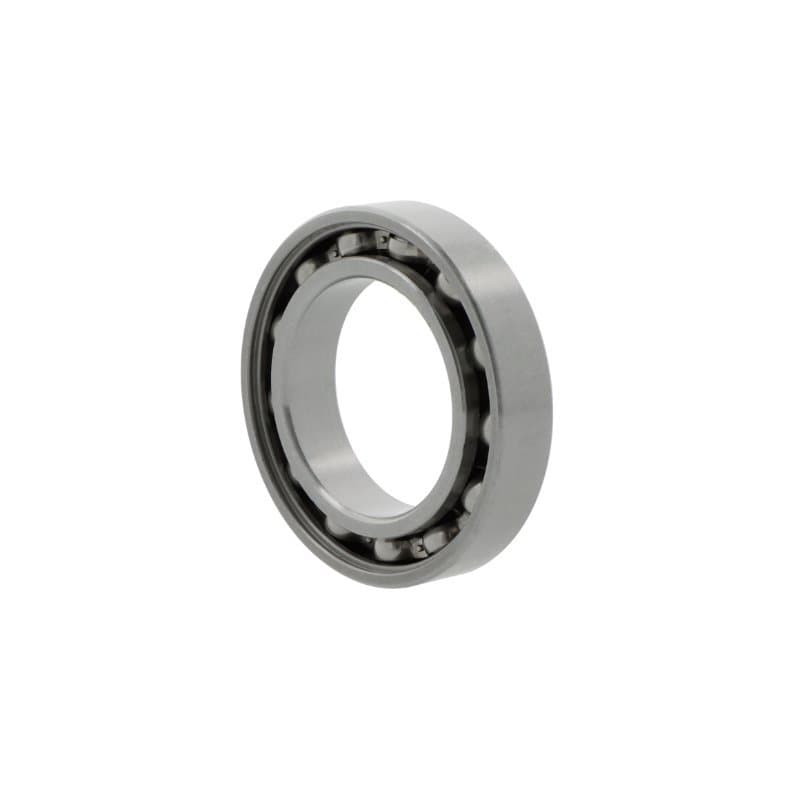

6022-Z is a deep groove ball bearing with a 110 mm bore, 170 mm outside diameter and 28 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 110 mm
- outside D
- 170 mm
- width B
- 28 mm
- sealing
- Z
- mass
- 1.97 kg
- net price from
- PLN 264.49
Brands and prices 6022-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6022
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 6022-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6022-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6022-Z
What are the dimensions of bearing 6022-Z?
Bore 110 mm, outside diameter 170 mm, width 28 mm. Standardised dimensions – the same for every manufacturer.
Are 6022-Z bearings from different brands interchangeable?
Yes. 6022 Z NACHI, 6022-ZR FAG, 6022-Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6022-Z cost?
At Castomer from PLN 264.49 to PLN 414.72 net per piece depending on the manufacturer (NACHI, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6022-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
