Deep groove ball bearing 61880 – 400×500×46 mm
6 offers · 4 manufacturers · net prices from PLN 3,128.01 · dispatch in 2 working days
61880 is a deep groove ball bearing with a 400 mm bore, 500 mm outside diameter and 46 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 400 mm
- outside D
- 500 mm
- width B
- 46 mm
- sealing
- open
- mass
- 21.5 kg
- net price from
- PLN 3,128.01
Brands and prices 61880
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

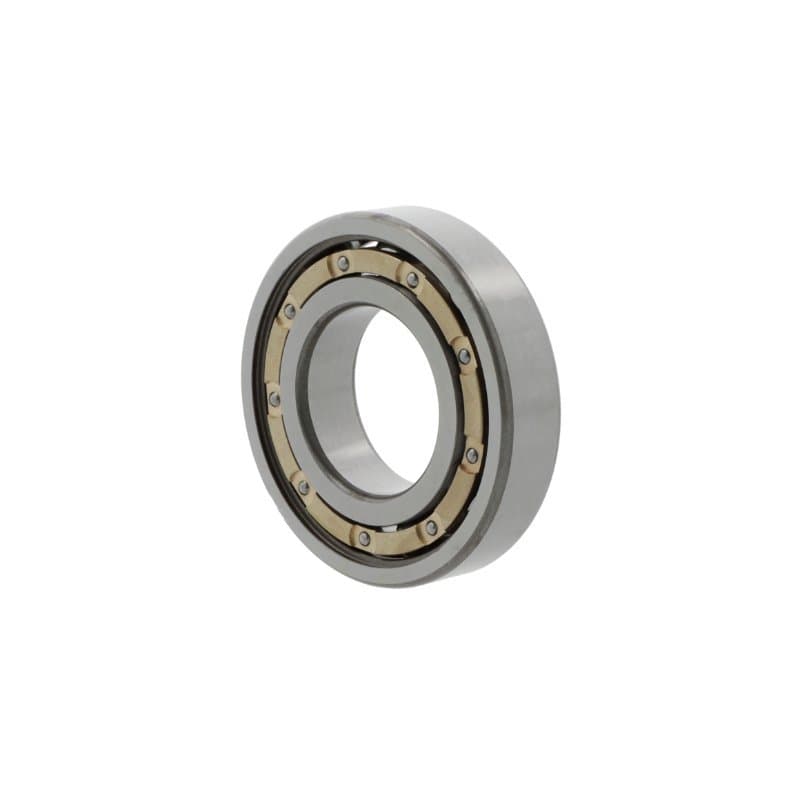

| ZEN | 61880 Mmachined brass cage | CN | PLN 3,128.01PLN 3,847.45 gross | supplier stockdispatch in 2 working days | |
| STEYR | 61880 MB.C3machined brass cage, inner ring centred | C3 | PLN 5,666.59PLN 6,969.91 gross | supplier stockdispatch in 2 working days | |
| FAG | 61880-M-C3machined brass cage | C3 | PLN 7,931.75PLN 9,756.05 gross | supplier stockdispatch in 2 working days | |
| FAG | 61880-MA-C3machined brass cage, outer ring centred | C3 | PLN 7,931.75PLN 9,756.05 gross | supplier stockdispatch in 2 working days | |
| FAG | 61880 Mmachined brass cage | CN | PLN 8,443.45PLN 10,385.44 gross | supplier stockdispatch in 2 working days | |
| SKF | 61880 MAC3machined brass cage, outer ring centred | C3 | PLN 13,243.90PLN 16,290.00 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 61880
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 61880-M-C3 | Open |
| ZEN | 61880 M | Open |
| STEYR | 61880 MB.C3 | Open |
| SKF | 61880 MAC3 | Open |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 61880 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 61880
What are the dimensions of bearing 61880?
Bore 400 mm, outside diameter 500 mm, width 46 mm. Standardised dimensions – the same for every manufacturer.
Are 61880 bearings from different brands interchangeable?
Yes. 61880-M-C3 FAG, 61880 M ZEN, 61880 MB.C3 STEYR, 61880 MAC3 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 61880 cost?
At Castomer from PLN 3,128.01 to PLN 13,243.90 net per piece depending on the manufacturer (FAG, ZEN, STEYR, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 61880?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
