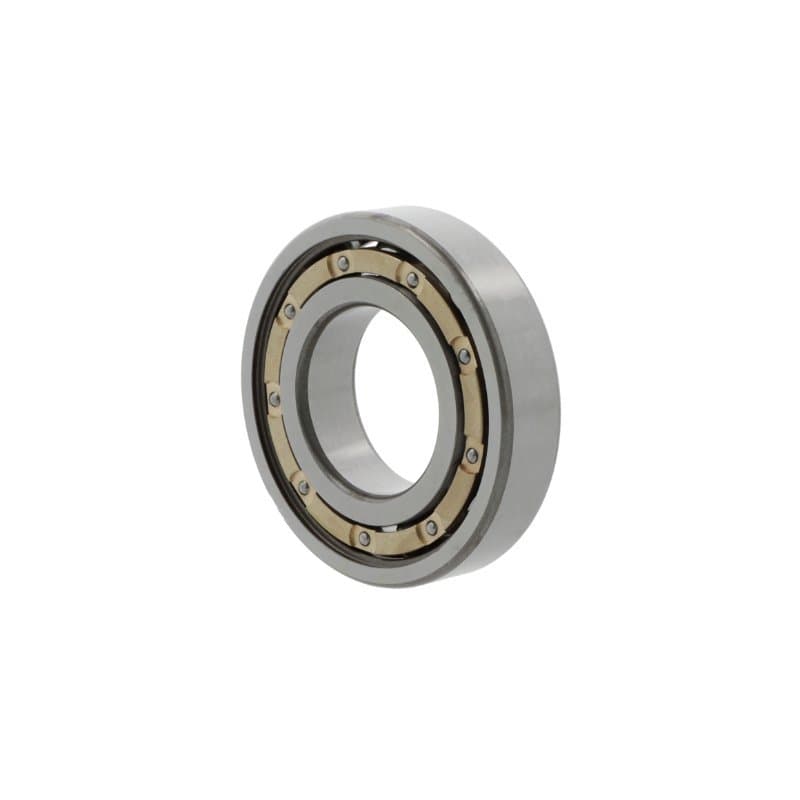

Deep groove ball bearing 61964 – 320×440×56 mm
4 offers · 3 manufacturers · net prices from PLN 2,012.04 · dispatch in 2 working days
61964 is a deep groove ball bearing with a 320 mm bore, 440 mm outside diameter and 56 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 320 mm
- outside D
- 440 mm
- width B
- 56 mm
- sealing
- open
- mass
- 24.45 kg
- net price from
- PLN 2,012.04
Brands and prices 61964
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| ZEN | 61964 Mmachined brass cage | CN | PLN 2,012.04PLN 2,474.81 gross | supplier stockdispatch in 2 working days | |
| STEYR | 61964 MA/C3machined brass cage, outer ring centred | C3 | PLN 3,333.50PLN 4,100.21 gross | supplier stockdispatch in 2 working days | |
| STEYR | 61964 MAmachined brass cage, outer ring centred | CN | PLN 3,333.50PLN 4,100.21 gross | supplier stockdispatch in 2 working days | |
| FAG | 61964 Mmachined brass cage | CN | PLN 6,827.76PLN 8,398.14 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate 61964
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| STEYR | 61964 MA/C3 | Open |
| ZEN | 61964 M | Open |
| FAG | 61964 M | Open |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 61964 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 61964
What are the dimensions of bearing 61964?
Bore 320 mm, outside diameter 440 mm, width 56 mm. Standardised dimensions – the same for every manufacturer.
Are 61964 bearings from different brands interchangeable?
Yes. 61964 MA/C3 STEYR, 61964 M ZEN, 61964 M FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 61964 cost?
At Castomer from PLN 2,012.04 to PLN 6,827.76 net per piece depending on the manufacturer (STEYR, ZEN, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 61964?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
