Deep groove ball bearing 6202-Z – 15×35×11 mm
18 offers · 7 manufacturers · net prices from PLN 6.33 · dispatch in 2 working days
6202-Z is a deep groove ball bearing with a 15 mm bore, 35 mm outside diameter and 11 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 15 mm
- outside D
- 35 mm
- width B
- 11 mm
- sealing
- Z
- mass
- 0.05 kg
- net price from
- PLN 6.33
Brands and prices 6202-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

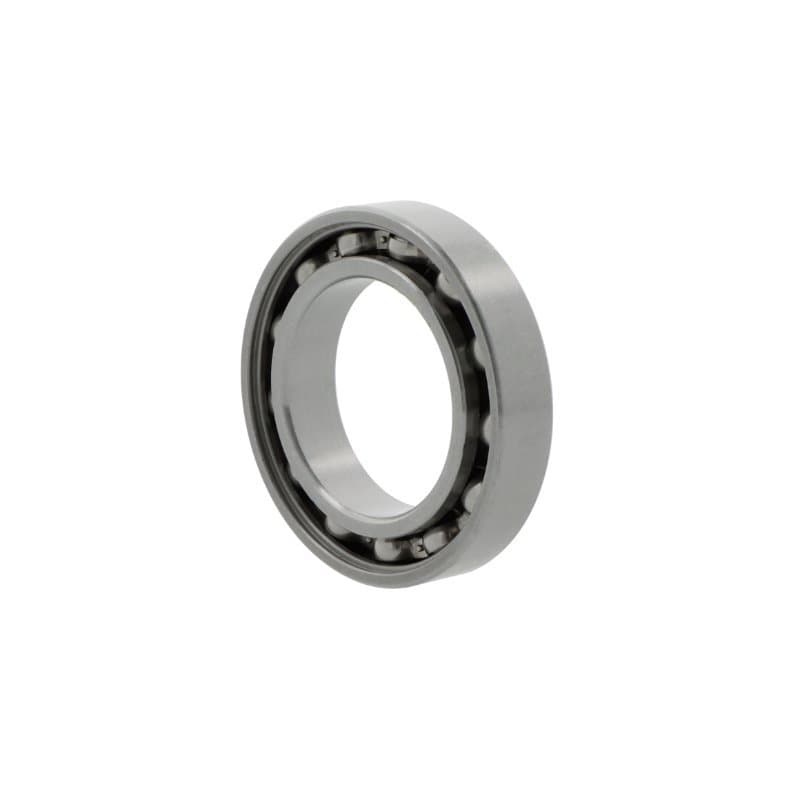

| INNE | 6202-ZEC3reinforced design, higher load rating | C3 | PLN 6.33PLN 7.79 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-C2ZC3 | C3 | PLN 6.75PLN 8.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-C2Z | C2 | PLN 6.75PLN 8.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-ZRC3 | C3 | PLN 7.02PLN 8.63 gross | supplier stockdispatch in 2 working days | |
| NKE | 6202-Z | CN | PLN 7.40PLN 9.10 gross | supplier stockdispatch in 2 working days | |
| NKE | 6202-ZC3 | C3 | PLN 7.62PLN 9.37 gross | supplier stockdispatch in 2 working days | |
| NSK | 6202 ZC3 | C3 | PLN 7.77PLN 9.56 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-CZC3 | C3 | PLN 9.23PLN 11.35 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6202 ZC3 | C3 | PLN 9.28PLN 11.41 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6202 ZCMclearance for electric motors (quiet running) | CN | PLN 9.28PLN 11.41 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-C-Z | CN | PLN 9.88PLN 12.15 gross | supplier stockdispatch in 2 working days | |
| FAG | 6202-C-Z-TVH-C2solid polyamide cage (FAG) | C2 | PLN 10.63PLN 13.07 gross | supplier stockdispatch in 2 working days | |
| SKF | 6202-Z | CN | PLN 11.56PLN 14.22 gross | supplier stockdispatch in 2 working days | |
| SKF | 6202-ZTN9glass-fibre reinforced PA66 cage (SKF) | CN | PLN 12.52PLN 15.40 gross | supplier stockdispatch in 2 working days | |
| SKF | 6202-ZTN9C3glass-fibre reinforced PA66 cage (SKF) | C3 | PLN 14.15PLN 17.40 gross | supplier stockdispatch in 2 working days | |
| SKF | 6202-ZTN9LTglass-fibre reinforced PA66 cage (SKF) | CN | PLN 14.58PLN 17.93 gross | supplier stockdispatch in 2 working days | |
| SNR | 6202 FT150ZZ | CN | PLN 22.02PLN 27.08 gross | supplier stockdispatch in 2 working days | |
| SNR | 6202 HT200ZZ | CN | PLN 42.50PLN 52.28 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6202
The same size in another design – open, shielded, tapered bore.
- 6202-2Z2Z – metal shields, both sides42 offers · from PLN 3.35 net
- 6202Open33 offers · from PLN 3.35 net
- 6202-2RS2RS – rubber contact seals, both sides30 offers · from PLN 3.35 net
- 6202-2RZ2RZ – rubber non-contact seals, both sides8 offers · from PLN 8.80 net
- 6202-RSRS – rubber contact seal, one side7 offers · from PLN 7.62 net
- 6202-RZRZ – rubber non-contact seal, one side2 offers · from PLN 25.98 net
- 6202 KOpen · Tapered bore1 offer · from PLN 7.12 net
How manufacturers designate 6202-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6202-C2ZC3 | Z – metal shield, one side |
| SKF | 6202-Z | Z – metal shield, one side |
| NKE | 6202-Z | Z – metal shield, one side |
| KOYO | 6202 ZC3 | Z – metal shield, one side |
| SNR | 6202 FT150ZZ | Z – metal shield, one side |
| INNE | 6202-ZEC3 | Z – metal shield, one side |
| NSK | 6202 ZC3 | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6202-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6202-Z
What are the dimensions of bearing 6202-Z?
Bore 15 mm, outside diameter 35 mm, width 11 mm. Standardised dimensions – the same for every manufacturer.
Are 6202-Z bearings from different brands interchangeable?
Yes. 6202-C2ZC3 FAG, 6202-Z SKF, 6202-Z NKE, 6202 ZC3 KOYO, 6202 FT150ZZ SNR are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6202-Z cost?
At Castomer from PLN 6.33 to PLN 42.50 net per piece depending on the manufacturer (FAG, SKF, NKE, KOYO, SNR, INNE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6202-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
