Deep groove ball bearing 6203-2Z – 17×40×12 mm

34 offers · 10 manufacturers · net prices from PLN 4.21 · dispatch in 2 working days

6203-2Z is a deep groove ball bearing with a 17 mm bore, 40 mm outside diameter and 12 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 17 mm
outside D: 40 mm
width B: 12 mm
sealing: 2Z
mass: 0.07 kg
net price from: PLN 4.21

Dimension drawing 6203-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	17 mm
D – outside diameter	40 mm
B – width	12 mm
dynamic load rating C	9.95 kN (per SKF catalogue)
static load rating C₀	4.75 kN (per SKF catalogue)
mass	0.07 kg

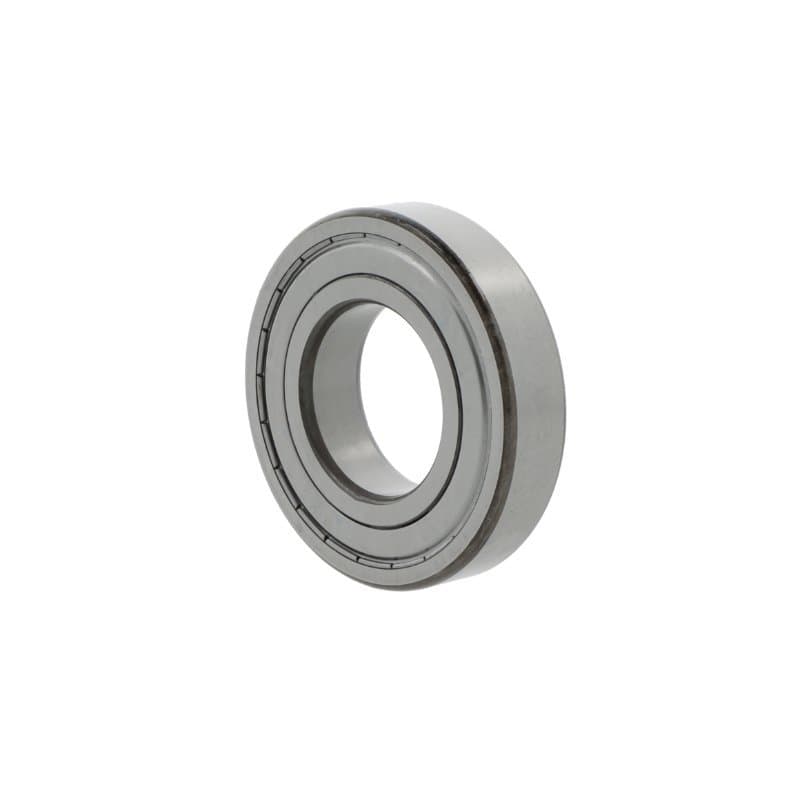

Pictured: ZEN 6203-2ZC3. Every brand has its own product page with photo and full description.

Brands and prices 6203-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	6203-2ZC3	C3	PLN 4.21PLN 5.18 gross	supplier stockdispatch in 2 working days
ZEN	6203-2Z	CN	PLN 4.21PLN 5.18 gross	supplier stockdispatch in 2 working days
NKE	6203-2ZC3	C3	PLN 5.77PLN 7.10 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZC3	C3	PLN 6.11PLN 7.52 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZ	CN	PLN 6.37PLN 7.84 gross	supplier stockdispatch in 2 working days
INNE	6203-ZZECMEC design, machined brass cage (SKF)	CN	PLN 7.08PLN 8.71 gross	supplier stockdispatch in 2 working days
NACHI	6203-ZZEC3reinforced design, higher load rating	C3	PLN 7.08PLN 8.71 gross	supplier stockdispatch in 2 working days
NSK	6203 ZZ	CN	PLN 7.46PLN 9.18 gross	supplier stockdispatch in 2 working days
TIMKEN	6203-ZZ	CN	PLN 7.50PLN 9.23 gross	supplier stockdispatch in 2 working days
TIMKEN	6203-ZZ-C3	C3	PLN 7.50PLN 9.23 gross	supplier stockdispatch in 2 working days
NTN	6203-ZZC35K	C3	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
NTN	6203 ZZCM/5Kclearance for electric motors (quiet running)	CN	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
KOYO	6203 ZZC3	C3	PLN 9.02PLN 11.09 gross	supplier stockdispatch in 2 working days
KOYO	6203 ZZCMclearance for electric motors (quiet running)	CN	PLN 9.02PLN 11.09 gross	supplier stockdispatch in 2 working days
SKF	6203-2Z/C4	C4	PLN 11.45PLN 14.08 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZC3GJNriveted pressed steel cage	C3	PLN 11.78PLN 14.49 gross	supplier stockdispatch in 2 working days
NTN	6203-ZZC45K	C4	PLN 12.58PLN 15.47 gross	supplier stockdispatch in 2 working days
NTN	6203-ZZNR5K	CN	PLN 14.31PLN 17.60 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZC3WT	C3	PLN 15.07PLN 18.54 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZWT	CN	PLN 16.09PLN 19.79 gross	supplier stockdispatch in 2 working days
SNR	6203 LTZZ	CN	PLN 19.28PLN 23.71 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZLHT23	CN	PLN 21.01PLN 25.84 gross	supplier stockdispatch in 2 working days
SKF	6203-2Z/C2	C2	PLN 22.30PLN 27.43 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZC3LHT23	C3	PLN 23.60PLN 29.03 gross	supplier stockdispatch in 2 working days
SKF	6203-2ZNR	CN	PLN 27.59PLN 33.94 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZTN9C3LHT23glass-fibre reinforced PA66 cage (SKF)	C3	PLN 29.00PLN 35.67 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZ/VA201	CN	PLN 138.41PLN 170.24 gross	supplier stockdispatch in 2 working days
SKF	6203-ZZ/VA228	CN	PLN 189.11PLN 232.61 gross	supplier stockdispatch in 2 working days

▸Special designs 6203-2Z (6) – stainless steel, snap ring, manufacturer specials

NKE	6203-2Z-NRsnap ring groove with snap ring	CN	PLN 10.10PLN 12.42 gross	supplier stockdispatch in 2 working days
NACHI	6203 ZZENRCMreinforced design, higher load rating, snap ring groove with snap ring, clearance for electric motors (quiet running)	CN	PLN 10.53PLN 12.95 gross	supplier stockdispatch in 2 working days
SKF	E2.6203-ZZC3	C3	PLN 11.45PLN 14.08 gross	supplier stockdispatch in 2 working days
SNR	6203 NRZZsnap ring groove with snap ring	CN	PLN 17.44PLN 21.45 gross	supplier stockdispatch in 2 working days
ZEN	S6203-2ZC3	C3	PLN 24.14PLN 29.69 gross	supplier stockdispatch in 2 working days
SKF	W6203-ZZ	CN	PLN 75.44PLN 92.79 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6203

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6203-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
SKF	6203-ZZC3	2Z – metal shields, both sides
NTN	6203-ZZC35K	2Z – metal shields, both sides
ZEN	6203-2ZC3	2Z – metal shields, both sides
NKE	6203-2ZC3	2Z – metal shields, both sides
NACHI	6203-ZZEC3	2Z – metal shields, both sides
TIMKEN	6203-ZZ	2Z – metal shields, both sides
KOYO	6203 ZZC3	2Z – metal shields, both sides
SNR	6203 LTZZ	2Z – metal shields, both sides
INNE	6203-ZZECM	2Z – metal shields, both sides
NSK	6203 ZZ	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6203-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6203-2Z

What are the dimensions of bearing 6203-2Z?

Bore 17 mm, outside diameter 40 mm, width 12 mm. Standardised dimensions – the same for every manufacturer.

Are 6203-2Z bearings from different brands interchangeable?

Yes. 6203-ZZC3 SKF, 6203-ZZC35K NTN, 6203-2ZC3 ZEN, 6203-2ZC3 NKE, 6203-ZZEC3 NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6203-2Z cost?

At Castomer from PLN 4.21 to PLN 189.11 net per piece depending on the manufacturer (SKF, NTN, ZEN, NKE, NACHI, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6203-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
