Deep groove ball bearing 6204 – 20×47×14 mm

40 offers · 11 manufacturers · net prices from PLN 4.27 · dispatch in 2 working days

6204 is a deep groove ball bearing with a 20 mm bore, 47 mm outside diameter and 14 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 20 mm
outside D: 47 mm
width B: 14 mm
sealing: open
mass: 0.11 kg
net price from: PLN 4.27

Dimension drawing 6204 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	20 mm
D – outside diameter	47 mm
B – width	14 mm
dynamic load rating C	13.5 kN (per SKF catalogue)
static load rating C₀	6.55 kN (per SKF catalogue)
mass	0.11 kg

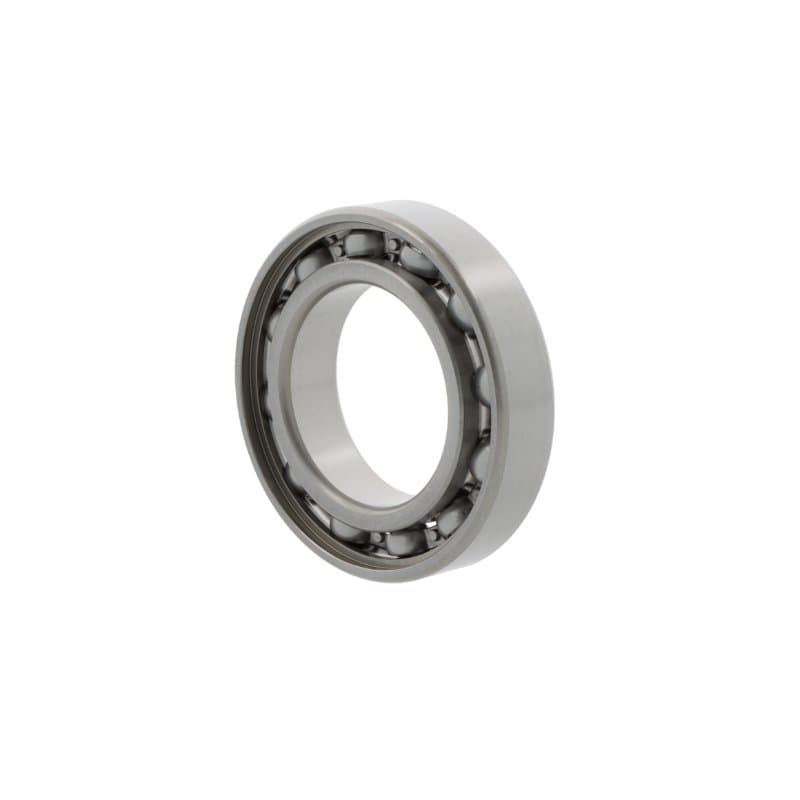

Pictured: ZEN 6204. Every brand has its own product page with photo and full description.

Brands and prices 6204

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	6204	CN	PLN 4.27PLN 5.25 gross	supplier stockdispatch in 2 working days
ZEN	6204 C3	C3	PLN 4.59PLN 5.65 gross	supplier stockdispatch in 2 working days
SNR	6204	CN	PLN 5.46PLN 6.72 gross	supplier stockdispatch in 2 working days
NKE	6204	CN	PLN 5.93PLN 7.29 gross	supplier stockdispatch in 2 working days
NKE	6204 C3	C3	PLN 5.93PLN 7.29 gross	supplier stockdispatch in 2 working days
INNE	6204 CMclearance for electric motors (quiet running)	CN	PLN 7.24PLN 8.91 gross	supplier stockdispatch in 2 working days
NACHI	6204 C3	C3	PLN 7.24PLN 8.91 gross	supplier stockdispatch in 2 working days
NSK	6204	CN	PLN 7.62PLN 9.37 gross	supplier stockdispatch in 2 working days
NSK	6204 C3	C3	PLN 7.62PLN 9.37 gross	supplier stockdispatch in 2 working days
FAG	6204-C	CN	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
FAG	6204-CC3	C3	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
TIMKEN	6204-C3	C3	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
TIMKEN	6204	CN	PLN 7.72PLN 9.50 gross	supplier stockdispatch in 2 working days
SKF	6204	CN	PLN 8.80PLN 10.82 gross	supplier stockdispatch in 2 working days
SKF	6204 C3	C3	PLN 8.80PLN 10.82 gross	supplier stockdispatch in 2 working days
NACHI	6204 C4	C4	PLN 9.23PLN 11.35 gross	supplier stockdispatch in 2 working days
KOYO	6204 CMclearance for electric motors (quiet running)	CN	PLN 9.28PLN 11.41 gross	supplier stockdispatch in 2 working days
KOYO	6204 C3	C3	PLN 9.28PLN 11.41 gross	supplier stockdispatch in 2 working days
NSK	6204 C4	C4	PLN 10.21PLN 12.56 gross	supplier stockdispatch in 2 working days
NACHI	6204-2NSE9C3reinforced design, higher load rating	CN	PLN 10.63PLN 13.07 gross	supplier stockdispatch in 2 working days
FAG	6204-CTVHC3solid polyamide cage (FAG)	C3	PLN 11.28PLN 13.87 gross	supplier stockdispatch in 2 working days
SKF	6204 C4	C4	PLN 12.26PLN 15.08 gross	supplier stockdispatch in 2 working days
SKF	6204 TN9C3glass-fibre reinforced PA66 cage (SKF)	C3	PLN 14.74PLN 18.13 gross	supplier stockdispatch in 2 working days
SKF	6204 TN9C4glass-fibre reinforced PA66 cage (SKF)	C4	PLN 17.93PLN 22.05 gross	supplier stockdispatch in 2 working days
SKF	6204 ETN9C3Hreinforced design, higher load rating, glass-fibre reinforced PA66 cage (SKF)	C3	PLN 33.21PLN 40.85 gross	supplier stockdispatch in 2 working days
SKF	6204 ETN9reinforced design, higher load rating, glass-fibre reinforced PA66 cage (SKF)	CN	PLN 35.21PLN 43.31 gross	supplier stockdispatch in 2 working days
SNR	6204 F600	CN	PLN 49.52PLN 60.91 gross	supplier stockdispatch in 2 working days
SNR	6204 HT200	CN	PLN 110.37PLN 135.76 gross	supplier stockdispatch in 2 working days

▸Special designs 6204 (12) – stainless steel, snap ring, manufacturer specials

NACHI	6204-NSE9CMsnap ring groove, reinforced design, higher load rating, machined brass cage	CN	PLN 9.40PLN 11.56 gross	supplier stockdispatch in 2 working days
NACHI	6204 NRCMsnap ring groove with snap ring, clearance for electric motors (quiet running)	CN	PLN 11.13PLN 13.69 gross	supplier stockdispatch in 2 working days
NACHI	6204 NRC3snap ring groove with snap ring	C3	PLN 11.13PLN 13.69 gross	supplier stockdispatch in 2 working days
NKE	6204-NRsnap ring groove with snap ring	CN	PLN 12.96PLN 15.94 gross	supplier stockdispatch in 2 working days
NKE	6204-NR-C3snap ring groove with snap ring	C3	PLN 13.33PLN 16.40 gross	supplier stockdispatch in 2 working days
NSK	6204 NRsnap ring groove with snap ring	CN	PLN 13.72PLN 16.88 gross	supplier stockdispatch in 2 working days
NTN	6204 NRC3snap ring groove with snap ring	C3	PLN 17.55PLN 21.59 gross	supplier stockdispatch in 2 working days
SKF	6204 NRsnap ring groove with snap ring	CN	PLN 20.89PLN 25.69 gross	supplier stockdispatch in 2 working days
ZEN	S6204	CN	PLN 21.60PLN 26.57 gross	supplier stockdispatch in 2 working days
SKF	6204 NRC3snap ring groove with snap ring	C3	PLN 27.98PLN 34.42 gross	supplier stockdispatch in 2 working days
FAG	S6204 W203	CN	PLN 48.66PLN 59.85 gross	supplier stockdispatch in 2 working days
SKF	W6204	CN	PLN 128.95PLN 158.61 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6204

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6204

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
SKF	6204	Open
NACHI	6204 C3	Open
NKE	6204	Open
NSK	6204	Open
FAG	6204-C	Open
ZEN	6204	Open
SNR	6204	Open
TIMKEN	6204-C3	Open
KOYO	6204 CM	Open
INNE	6204 CM	Open
NTN	6204 NRC3	Open

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6204 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6204

What are the dimensions of bearing 6204?

Bore 20 mm, outside diameter 47 mm, width 14 mm. Standardised dimensions – the same for every manufacturer.

Are 6204 bearings from different brands interchangeable?

Yes. 6204 SKF, 6204 C3 NACHI, 6204 NKE, 6204 NSK, 6204-C FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6204 cost?

At Castomer from PLN 4.27 to PLN 110.37 net per piece depending on the manufacturer (SKF, NACHI, NKE, NSK, FAG, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6204?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
