Deep groove ball bearing 6205-Z – 25×52×15 mm
15 offers · 7 manufacturers · net prices from PLN 9.72 · dispatch in 2 working days
6205-Z is a deep groove ball bearing with a 25 mm bore, 52 mm outside diameter and 15 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 25 mm
- outside D
- 52 mm
- width B
- 15 mm
- sealing
- Z
- mass
- 0.13 kg
- net price from
- PLN 9.72
Brands and prices 6205-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

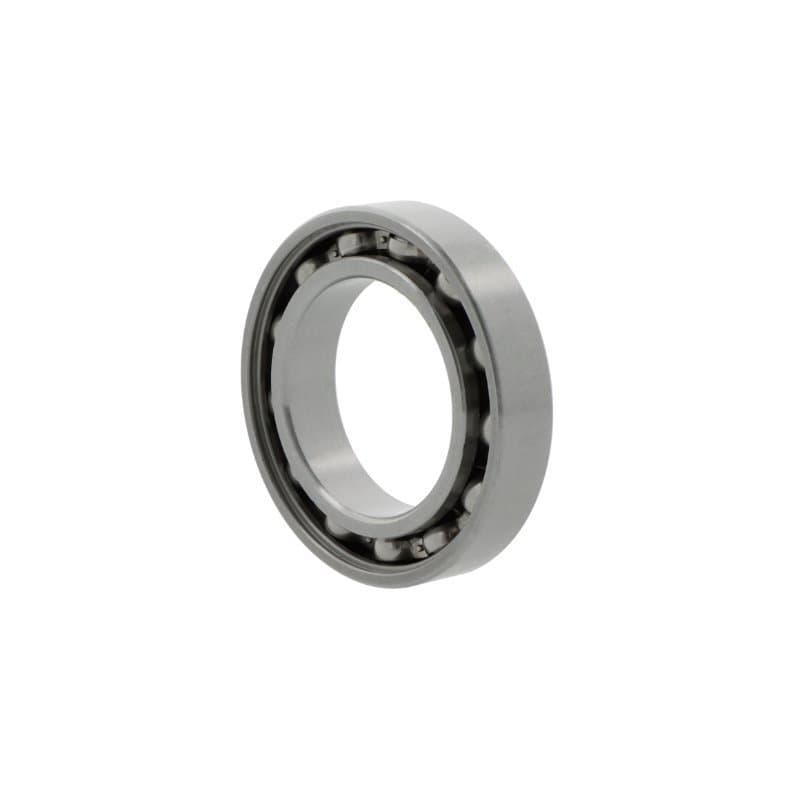

| NACHI | 6205-ZEC3reinforced design, higher load rating | C3 | PLN 9.72PLN 11.96 gross | supplier stockdispatch in 2 working days | |
| NACHI | 6205-ZECMEC design, machined brass cage (SKF) | CN | PLN 9.72PLN 11.96 gross | supplier stockdispatch in 2 working days | |
| FAG | 6205-C2ZC3 | C3 | PLN 10.37PLN 12.76 gross | supplier stockdispatch in 2 working days | |
| FAG | 6205-C2Z | C2 | PLN 10.37PLN 12.76 gross | supplier stockdispatch in 2 working days | |
| NKE | 6205-ZC3 | C3 | PLN 11.39PLN 14.01 gross | supplier stockdispatch in 2 working days | |
| NKE | 6205-Z | CN | PLN 11.72PLN 14.42 gross | supplier stockdispatch in 2 working days | |
| NSK | 6205-ZC3 | C3 | PLN 12.04PLN 14.81 gross | supplier stockdispatch in 2 working days | |
| FAG | 6205-CZC3 | C3 | PLN 13.98PLN 17.20 gross | supplier stockdispatch in 2 working days | |
| FAG | 6205-C-Z | CN | PLN 14.42PLN 17.74 gross | supplier stockdispatch in 2 working days | |
| SKF | 6205-Z | CN | PLN 14.52PLN 17.86 gross | supplier stockdispatch in 2 working days | |
| SKF | 6205-ZC3 | C3 | PLN 15.77PLN 19.40 gross | supplier stockdispatch in 2 working days | |
| SNR | 6205 FT150ZZ | CN | PLN 33.97PLN 41.78 gross | supplier stockdispatch in 2 working days |
▸Special designs 6205-Z (3) – stainless steel, snap ring, manufacturer specials
| NACHI | 6205-ZENRreinforced design, higher load rating, snap ring groove with snap ring | CN | PLN 15.87PLN 19.52 gross | supplier stockdispatch in 2 working days | |
| NTN | 6205-ZNRsnap ring groove with snap ring | CN | PLN 19.07PLN 23.46 gross | supplier stockdispatch in 2 working days | |
| SKF | 6205-ZNRsnap ring groove with snap ring | CN | PLN 27.87PLN 34.28 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6205
The same size in another design – open, shielded, tapered bore.
- 6205Open45 offers · from PLN 5.56 net
- 6205-2Z2Z – metal shields, both sides41 offers · from PLN 5.12 net
- 6205-2RS2RS – rubber contact seals, both sides38 offers · from PLN 7.18 net
- 6205-RSRS – rubber contact seal, one side8 offers · from PLN 11.67 net
- 6205-2RZ2RZ – rubber non-contact seals, both sides7 offers · from PLN 13.55 net
- 6205 KOpen · Tapered bore1 offer · from PLN 11.02 net
- 6205 K-2RS2RS – rubber contact seals, both sides · Tapered bore1 offer · from PLN 24.52 net
- 6205-RZRZ – rubber non-contact seal, one side1 offer · from PLN 72.79 net
How manufacturers designate 6205-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6205-C2ZC3 | Z – metal shield, one side |
| NACHI | 6205-ZEC3 | Z – metal shield, one side |
| SKF | 6205-Z | Z – metal shield, one side |
| NKE | 6205-ZC3 | Z – metal shield, one side |
| NSK | 6205-ZC3 | Z – metal shield, one side |
| NTN | 6205-ZNR | Z – metal shield, one side |
| SNR | 6205 FT150ZZ | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6205-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6205-Z
What are the dimensions of bearing 6205-Z?
Bore 25 mm, outside diameter 52 mm, width 15 mm. Standardised dimensions – the same for every manufacturer.
Are 6205-Z bearings from different brands interchangeable?
Yes. 6205-C2ZC3 FAG, 6205-ZEC3 NACHI, 6205-Z SKF, 6205-ZC3 NKE, 6205-ZC3 NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6205-Z cost?
At Castomer from PLN 9.72 to PLN 33.97 net per piece depending on the manufacturer (FAG, NACHI, SKF, NKE, NSK, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6205-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
