Deep groove ball bearing 6206-Z – 30×62×16 mm
15 offers · 8 manufacturers · net prices from PLN 13.02 · dispatch in 2 working days

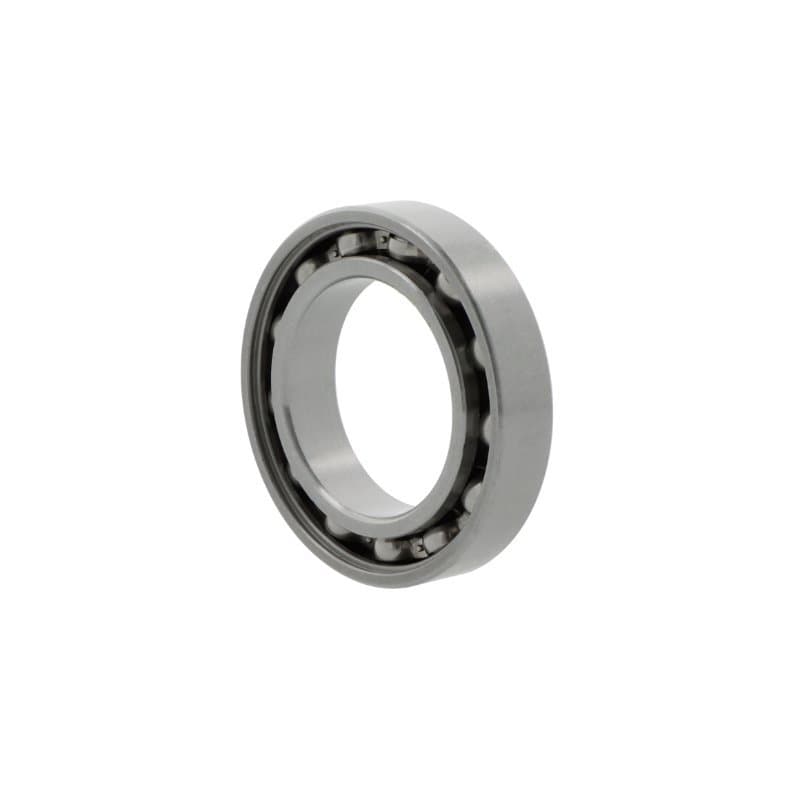

6206-Z is a deep groove ball bearing with a 30 mm bore, 62 mm outside diameter and 16 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 30 mm
- outside D
- 62 mm
- width B
- 16 mm
- sealing
- Z
- mass
- 0.19 kg
- net price from
- PLN 13.02
Brands and prices 6206-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| INNE | 6206-ZECMEC design, machined brass cage (SKF) | CN | PLN 13.02PLN 16.01 gross | supplier stockdispatch in 2 working days | |
| NACHI | 6206-ZEC3reinforced design, higher load rating | C3 | PLN 13.02PLN 16.01 gross | supplier stockdispatch in 2 working days | |
| FAG | 6206-C2ZC3 | C3 | PLN 13.87PLN 17.06 gross | supplier stockdispatch in 2 working days | |
| FAG | 6206-C2Z | C2 | PLN 13.87PLN 17.06 gross | supplier stockdispatch in 2 working days | |
| NKE | 6206-Z | CN | PLN 14.80PLN 18.20 gross | supplier stockdispatch in 2 working days | |
| NKE | 6206-ZC3 | C3 | PLN 15.18PLN 18.67 gross | supplier stockdispatch in 2 working days | |
| NSK | 6206 Z | CN | PLN 15.61PLN 19.20 gross | supplier stockdispatch in 2 working days | |
| NSK | 6206 ZC3 | C3 | PLN 15.61PLN 19.20 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6206 ZC3 | C3 | PLN 18.57PLN 22.84 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6206 ZCMclearance for electric motors (quiet running) | CN | PLN 18.57PLN 22.84 gross | supplier stockdispatch in 2 working days | |
| FAG | 6206-C-Z (-Z) | CN | PLN 18.68PLN 22.98 gross | supplier stockdispatch in 2 working days | |
| SNR | 6206 Z | CN | PLN 23.17PLN 28.50 gross | supplier stockdispatch in 2 working days | |
| SKF | 6206-ZC3 | C3 | PLN 26.02PLN 32.00 gross | supplier stockdispatch in 2 working days | |
| SKF | 6206-ZC4 | C4 | PLN 29.05PLN 35.73 gross | supplier stockdispatch in 2 working days |
▸Special designs 6206-Z (1) – stainless steel, snap ring, manufacturer specials
| SKF | 6206-ZNRsnap ring groove with snap ring | CN | PLN 37.37PLN 45.97 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6206
The same size in another design – open, shielded, tapered bore.
- 6206Open54 offers · from PLN 7.34 net
- 6206-2Z2Z – metal shields, both sides34 offers · from PLN 7.93 net
- 6206-2RS2RS – rubber contact seals, both sides28 offers · from PLN 7.34 net
- 6206-RSRS – rubber contact seal, one side10 offers · from PLN 15.66 net
- 6206-2RZ2RZ – rubber non-contact seals, both sides6 offers · from PLN 17.50 net
- 6206 KOpen · Tapered bore2 offers · from PLN 14.63 net
- 6206-RZRZ – rubber non-contact seal, one side2 offers · from PLN 34.67 net
- 6206 K-2RS2RS – rubber contact seals, both sides · Tapered bore1 offer · from PLN 53.57 net
- 6206 K-2Z2Z – metal shields, both sides · Tapered bore1 offer · from PLN 56.33 net
How manufacturers designate 6206-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6206-C2ZC3 | Z – metal shield, one side |
| SKF | 6206-ZC3 | Z – metal shield, one side |
| NKE | 6206-Z | Z – metal shield, one side |
| NSK | 6206 Z | Z – metal shield, one side |
| KOYO | 6206 ZC3 | Z – metal shield, one side |
| INNE | 6206-ZECM | Z – metal shield, one side |
| NACHI | 6206-ZEC3 | Z – metal shield, one side |
| SNR | 6206 Z | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6206-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6206-Z
What are the dimensions of bearing 6206-Z?
Bore 30 mm, outside diameter 62 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.
Are 6206-Z bearings from different brands interchangeable?
Yes. 6206-C2ZC3 FAG, 6206-ZC3 SKF, 6206-Z NKE, 6206 Z NSK, 6206 ZC3 KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6206-Z cost?
At Castomer from PLN 13.02 to PLN 29.05 net per piece depending on the manufacturer (FAG, SKF, NKE, NSK, KOYO, INNE). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6206-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
