Deep groove ball bearing 6216-Z – 80×140×26 mm
10 offers · 5 manufacturers · net prices from PLN 128.53 · dispatch in 2 working days
6216-Z is a deep groove ball bearing with a 80 mm bore, 140 mm outside diameter and 26 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 80 mm
- outside D
- 140 mm
- width B
- 26 mm
- sealing
- Z
- mass
- 1.45 kg
- net price from
- PLN 128.53
Brands and prices 6216-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

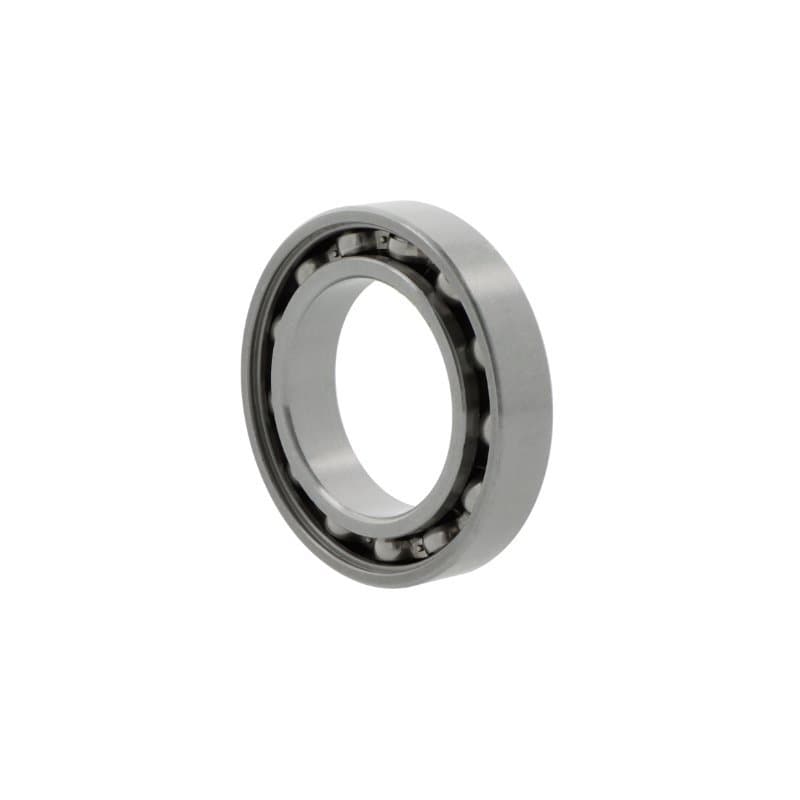

| NACHI | 6216 Z | CN | PLN 128.53PLN 158.09 gross | supplier stockdispatch in 2 working days | |
| FAG | 6216-ZR | CN | PLN 155.53PLN 191.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 6216-ZRC3 | C3 | PLN 155.53PLN 191.30 gross | supplier stockdispatch in 2 working days | |
| NTN | 6216 Z | CN | PLN 163.51PLN 201.12 gross | supplier stockdispatch in 2 working days | |
| NSK | 6216 ZC3 | C3 | PLN 187.11PLN 230.15 gross | supplier stockdispatch in 2 working days | |
| NSK | 6216 Z | CN | PLN 187.11PLN 230.15 gross | supplier stockdispatch in 2 working days | |
| SKF | 6216-Z | CN | PLN 188.57PLN 231.94 gross | supplier stockdispatch in 2 working days | |
| SKF | 6216-ZC3 | C3 | PLN 197.10PLN 242.43 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6216
The same size in another design – open, shielded, tapered bore.
- 6216Open43 offers · from PLN 99.09 net
- 6216-2Z2Z – metal shields, both sides17 offers · from PLN 65.50 net
- 6216-2RS2RS – rubber contact seals, both sides15 offers · from PLN 121.93 net
- 6216-2RZ2RZ – rubber non-contact seals, both sides1 offer · from PLN 205.20 net
- 6216-RSRS – rubber contact seal, one side1 offer · from PLN 229.98 net
- 6216-RZRZ – rubber non-contact seal, one side1 offer · from PLN 1,568.16 net
How manufacturers designate 6216-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6216-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6216-Z
What are the dimensions of bearing 6216-Z?
Bore 80 mm, outside diameter 140 mm, width 26 mm. Standardised dimensions – the same for every manufacturer.
Are 6216-Z bearings from different brands interchangeable?
Yes. 6216 ZC3 NSK, 6216-Z SKF, 6216-ZR FAG, 6216 Z NACHI, 6216 Z NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6216-Z cost?
At Castomer from PLN 128.53 to PLN 197.10 net per piece depending on the manufacturer (NSK, SKF, FAG, NACHI, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6216-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
