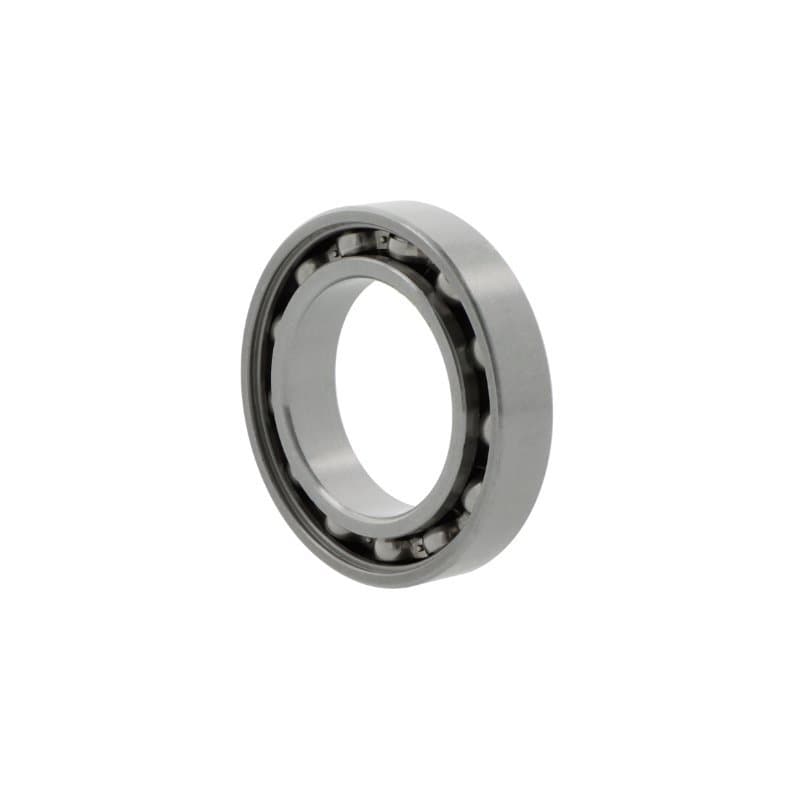

Deep groove ball bearing 6217-Z – 85×150×28 mm
5 offers · 3 manufacturers · net prices from PLN 156.49 · dispatch in 2 working days
6217-Z is a deep groove ball bearing with a 85 mm bore, 150 mm outside diameter and 28 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 85 mm
- outside D
- 150 mm
- width B
- 28 mm
- sealing
- Z
- mass
- 1.77 kg
- net price from
- PLN 156.49
Brands and prices 6217-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NACHI | 6217 Z | CN | PLN 156.49PLN 192.48 gross | supplier stockdispatch in 2 working days | |
| NSK | 6217-ZC3 | C3 | PLN 228.15PLN 280.62 gross | supplier stockdispatch in 2 working days | |
| NSK | 6217 Z | CN | PLN 228.15PLN 280.62 gross | supplier stockdispatch in 2 working days | |
| SKF | 6217-Z | CN | PLN 301.70PLN 371.09 gross | supplier stockdispatch in 2 working days | |
| SKF | 6217-ZC3 | C3 | PLN 334.32PLN 411.21 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6217
The same size in another design – open, shielded, tapered bore.
- 6217Open38 offers · from PLN 74.79 net
- 6217-2Z2Z – metal shields, both sides20 offers · from PLN 92.34 net
- 6217-2RS2RS – rubber contact seals, both sides14 offers · from PLN 161.78 net
- 6217-RZRZ – rubber non-contact seal, one side2 offers · from PLN 602.53 net
- 6217-2RZ2RZ – rubber non-contact seals, both sides1 offer · from PLN 257.48 net
- 6217-RSRS – rubber contact seal, one side1 offer · from PLN 479.41 net
How manufacturers designate 6217-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6217-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6217-Z
What are the dimensions of bearing 6217-Z?
Bore 85 mm, outside diameter 150 mm, width 28 mm. Standardised dimensions – the same for every manufacturer.
Are 6217-Z bearings from different brands interchangeable?
Yes. 6217-ZC3 NSK, 6217-Z SKF, 6217 Z NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6217-Z cost?
At Castomer from PLN 156.49 to PLN 334.32 net per piece depending on the manufacturer (NSK, SKF, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6217-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
