Deep groove ball bearing 6220-Z – 100×180×34 mm

6 offers · 4 manufacturers · net prices from PLN 267.58 · dispatch in 2 working days

6220-Z is a deep groove ball bearing with a 100 mm bore, 180 mm outside diameter and 34 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 100 mm
outside D: 180 mm
width B: 34 mm
sealing: Z
mass: 3.14 kg
net price from: PLN 267.58

Dimension drawing 6220-Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	100 mm
D – outside diameter	180 mm
B – width	34 mm
dynamic load rating C	127 kN (per SKF catalogue)
static load rating C₀	93 kN (per SKF catalogue)
mass	3.14 kg

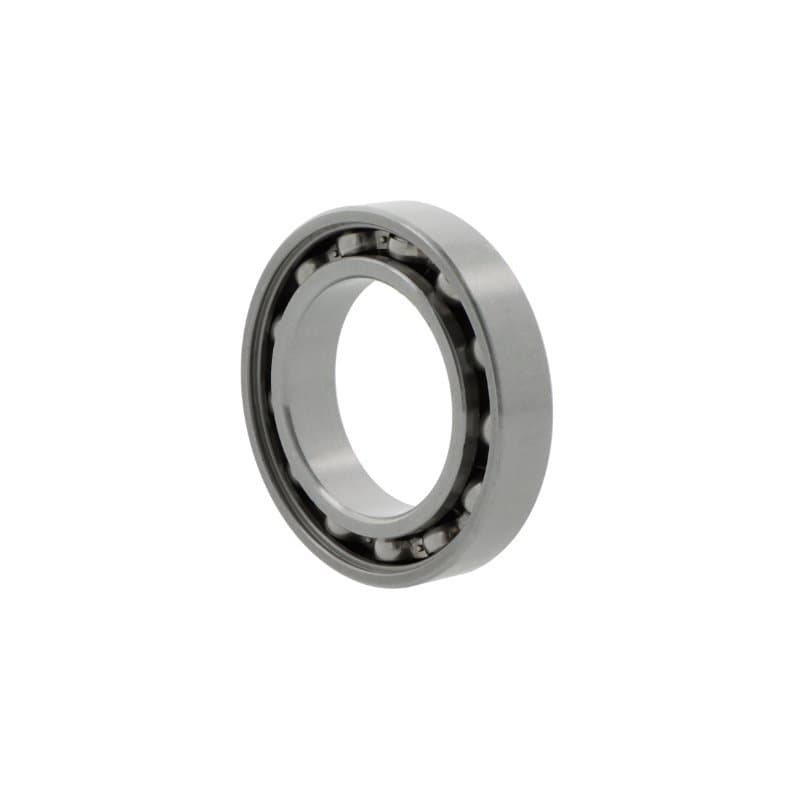

Pictured: NACHI 6220 Z. Every brand has its own product page with photo and full description.

Brands and prices 6220-Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6220 Z	CN	PLN 267.58PLN 329.12 gross	supplier stockdispatch in 2 working days
FAG	6220-ZR	CN	PLN 335.34PLN 412.47 gross	supplier stockdispatch in 2 working days
NTN	6220-Z	CN	PLN 340.85PLN 419.25 gross	supplier stockdispatch in 2 working days
FAG	6220-Z-C3	C3	PLN 346.14PLN 425.75 gross	supplier stockdispatch in 2 working days
FAG	6220-Z-C4	C4	PLN 348.95PLN 429.21 gross	supplier stockdispatch in 2 working days
SKF	6220-Z	CN	PLN 595.68PLN 732.69 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6220

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6220-Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6220-ZR	Z – metal shield, one side
NACHI	6220 Z	Z – metal shield, one side
NTN	6220-Z	Z – metal shield, one side
SKF	6220-Z	Z – metal shield, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6220-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6220-Z

What are the dimensions of bearing 6220-Z?

Bore 100 mm, outside diameter 180 mm, width 34 mm. Standardised dimensions – the same for every manufacturer.

Are 6220-Z bearings from different brands interchangeable?

Yes. 6220-ZR FAG, 6220 Z NACHI, 6220-Z NTN, 6220-Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6220-Z cost?

At Castomer from PLN 267.58 to PLN 595.68 net per piece depending on the manufacturer (FAG, NACHI, NTN, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6220-Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
