Deep groove ball bearing 6226-RZ – 130×230×40 mm
2 offers · 1 manufacturer · net prices from PLN 3,955.31 · dispatch in 2 working days
6226-RZ is a deep groove ball bearing with a 130 mm bore, 230 mm outside diameter and 40 mm width, with one non-contact rubber seal (RZ). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 130 mm
- outside D
- 230 mm
- width B
- 40 mm
- sealing
- RZ
- mass
- 5.76 kg
- net price from
- PLN 3,955.31
Brands and prices 6226-RZ
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

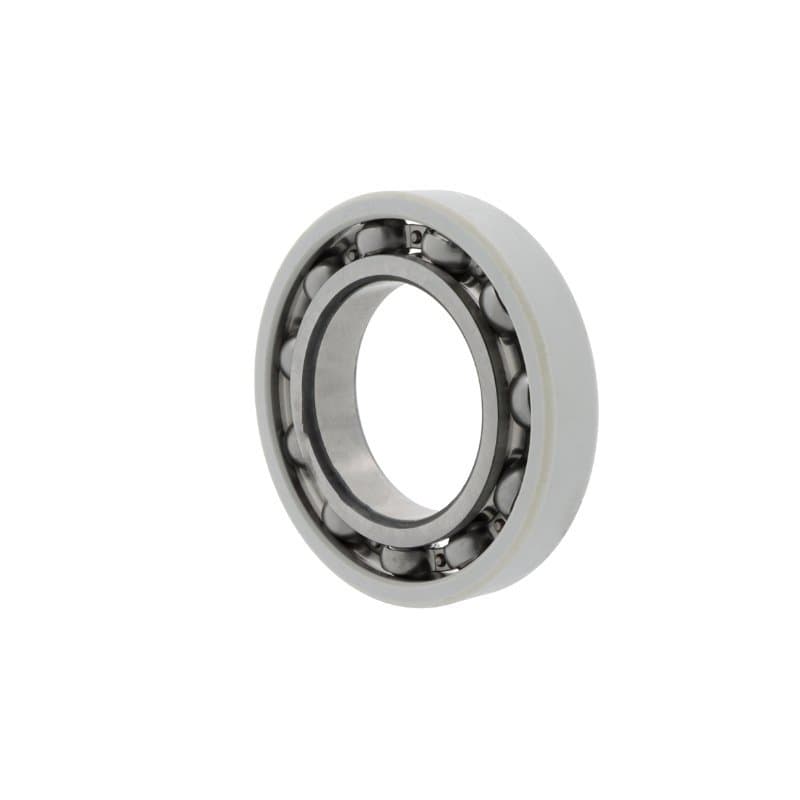

| SKF | 6226 C3VL0241 | C3 | PLN 3,955.31PLN 4,865.03 gross | supplier stockdispatch in 2 working days | |
| SKF | 6226 C3VL2071 | C3 | PLN 4,434.70PLN 5,454.68 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6226
The same size in another design – open, shielded, tapered bore.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6226-RZ are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6226-RZ
What are the dimensions of bearing 6226-RZ?
Bore 130 mm, outside diameter 230 mm, width 40 mm. Standardised dimensions – the same for every manufacturer.
How much does bearing 6226-RZ cost?
At Castomer from PLN 3,955.31 to PLN 4,434.70 net per piece depending on the manufacturer (SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6226-RZ?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
