Deep groove ball bearing 6228 – 140×250×42 mm
21 offers · 9 manufacturers · net prices from PLN 261.63 · dispatch in 2 working days
6228 is a deep groove ball bearing with a 140 mm bore, 250 mm outside diameter and 42 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 140 mm
- outside D
- 250 mm
- width B
- 42 mm
- sealing
- open
- mass
- 8.2 kg
- net price from
- PLN 261.63
Brands and prices 6228
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

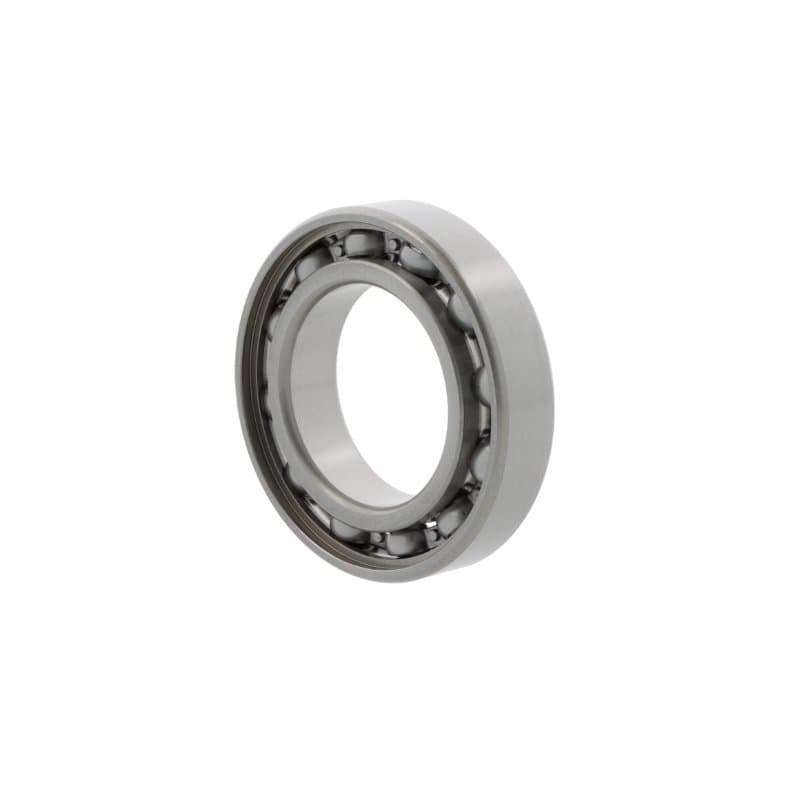

| ZEN | 6228 C3 | C3 | PLN 261.63PLN 321.80 gross | supplier stockdispatch in 2 working days | |
| ZEN | 6228 | CN | PLN 326.92PLN 402.11 gross | supplier stockdispatch in 2 working days | |
| ZEN | 6228 MC3machined brass cage | C3 | PLN 448.53PLN 551.69 gross | supplier stockdispatch in 2 working days | |
| NKE | 6228 C3 | C3 | PLN 647.41PLN 796.31 gross | supplier stockdispatch in 2 working days | |
| NACHI | 6228 | CN | PLN 698.17PLN 858.75 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6228 C3 | C3 | PLN 819.93PLN 1,008.51 gross | supplier stockdispatch in 2 working days | |
| NTN | 6228 CMclearance for electric motors (quiet running) | CN | PLN 859.89PLN 1,057.66 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228 C3 | C3 | PLN 898.62PLN 1,105.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228 | CN | PLN 898.62PLN 1,105.30 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228-C4 | C4 | PLN 972.98PLN 1,196.77 gross | supplier stockdispatch in 2 working days | |
| NSK | 6228 | CN | PLN 1,008.18PLN 1,240.06 gross | supplier stockdispatch in 2 working days | |
| NSK | 6228 C3 | C3 | PLN 1,008.18PLN 1,240.06 gross | supplier stockdispatch in 2 working days | |
| SKF | 6228 C3 | C3 | PLN 1,071.73PLN 1,318.23 gross | supplier stockdispatch in 2 working days | |
| NKE | 6228-Mmachined brass cage | CN | PLN 1,094.20PLN 1,345.87 gross | supplier stockdispatch in 2 working days | |
| SKF | 6228 | CN | PLN 1,152.15PLN 1,417.14 gross | supplier stockdispatch in 2 working days | |
| SKF | 6228 C4 | C4 | PLN 1,318.24PLN 1,621.44 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228 MC3machined brass cage | C3 | PLN 1,612.82PLN 1,983.77 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228 MAC4machined brass cage, outer ring centred | C4 | PLN 1,640.85PLN 2,018.25 gross | supplier stockdispatch in 2 working days | |
| SKF | 6228 MA/C3machined brass cage, outer ring centred | C3 | PLN 2,068.47PLN 2,544.22 gross | supplier stockdispatch in 2 working days | |
| FAG | 6228 MAC3machined brass cage, outer ring centred | C3 | PLN 2,189.48PLN 2,693.06 gross | supplier stockdispatch in 2 working days | |
| TIMKEN | 6228 Mmachined brass cage | CN | PLN 2,454.30PLN 3,018.79 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6228
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 6228
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6228 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6228
What are the dimensions of bearing 6228?
Bore 140 mm, outside diameter 250 mm, width 42 mm. Standardised dimensions – the same for every manufacturer.
Are 6228 bearings from different brands interchangeable?
Yes. 6228 C3 FAG, 6228 C3 SKF, 6228 C3 ZEN, 6228 C3 NKE, 6228 NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6228 cost?
At Castomer from PLN 261.63 to PLN 2,454.30 net per piece depending on the manufacturer (FAG, SKF, ZEN, NKE, NSK, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6228?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
