Deep groove ball bearing 626-Z – 6×19×6 mm
5 offers · 4 manufacturers · net prices from PLN 5.02 · dispatch in 2 working days
626-Z is a deep groove ball bearing with a 6 mm bore, 19 mm outside diameter and 6 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 6 mm
- outside D
- 19 mm
- width B
- 6 mm
- sealing
- Z
- mass
- 0.01 kg
- net price from
- PLN 5.02
Brands and prices 626-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

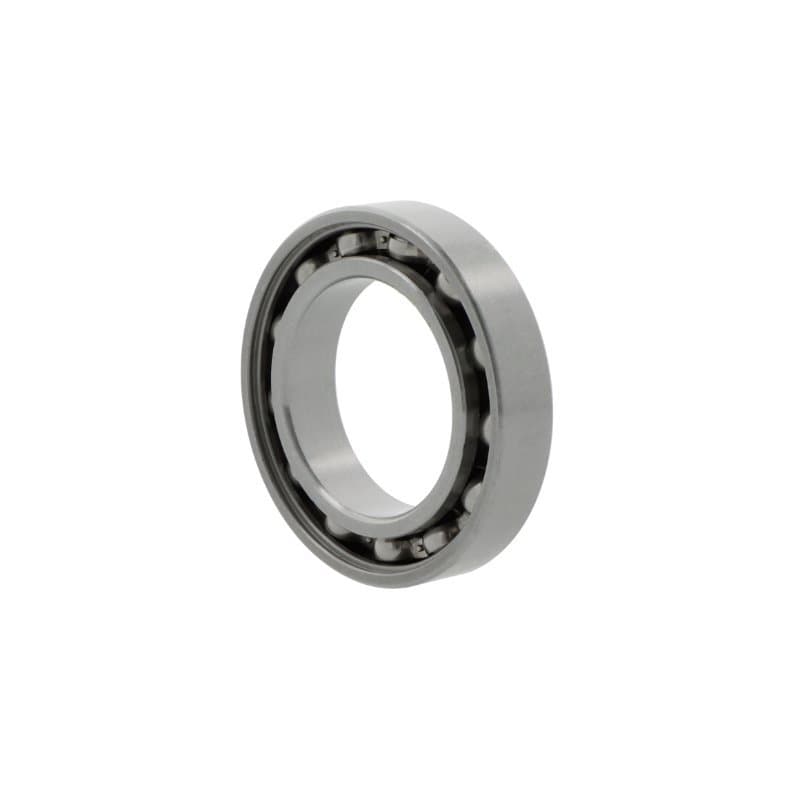

| NSK | 626 Z1MC3 | C3 | PLN 6.05PLN 7.44 gross | supplier stockdispatch in 2 working days | |
| FAG | 626-ZR | CN | PLN 8.15PLN 10.02 gross | supplier stockdispatch in 2 working days | |
| SKF | 626-Z | CN | PLN 9.93PLN 12.21 gross | supplier stockdispatch in 2 working days | |
| SKF | 626-ZTN9LTglass-fibre reinforced PA66 cage (SKF) | CN | PLN 13.02PLN 16.01 gross | supplier stockdispatch in 2 working days |
▸Special designs 626-Z (1) – stainless steel, snap ring, manufacturer specials
| ZEN | S626-Z | CN | PLN 5.02PLN 6.17 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 626
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 626-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 626-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 626-Z
What are the dimensions of bearing 626-Z?
Bore 6 mm, outside diameter 19 mm, width 6 mm. Standardised dimensions – the same for every manufacturer.
Are 626-Z bearings from different brands interchangeable?
Yes. 626-Z SKF, 626 Z1MC3 NSK, 626-ZR FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 626-Z cost?
At Castomer from PLN 5.02 to PLN 13.02 net per piece depending on the manufacturer (SKF, ZEN, NSK, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 626-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
