Deep groove ball bearing 628-2Z – 8×24×8 mm

20 offers · 6 manufacturers · net prices from PLN 4.38 · dispatch in 2 working days

628-2Z is a deep groove ball bearing with a 8 mm bore, 24 mm outside diameter and 8 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 8 mm
outside D: 24 mm
width B: 8 mm
sealing: 2Z
mass: 0 kg
net price from: PLN 4.38

Dimension drawing 628-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	8 mm
D – outside diameter	24 mm
B – width	8 mm
mass	0 kg

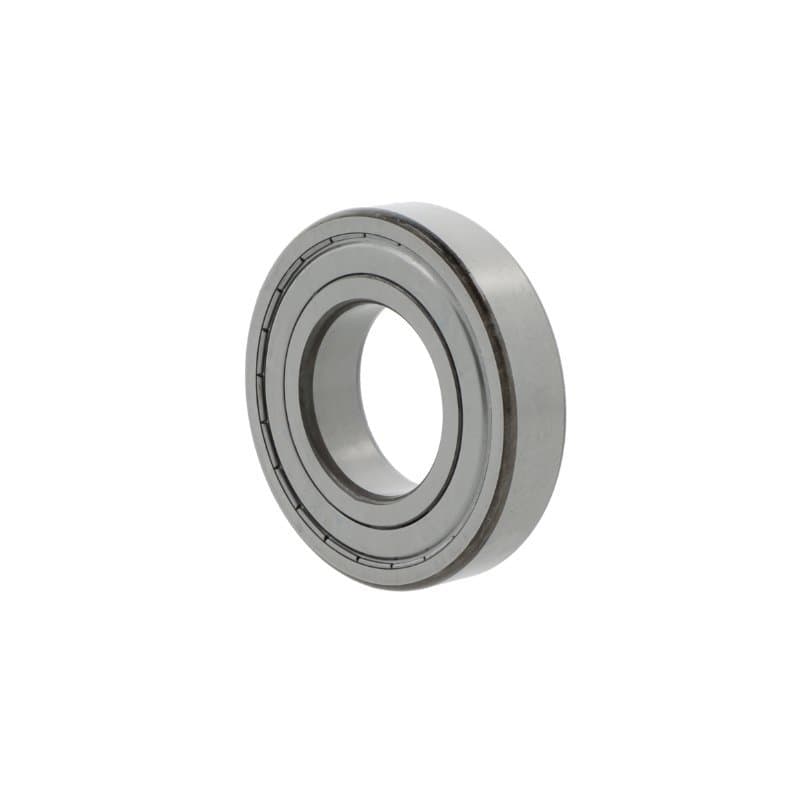

Pictured: NKE 628-2Z. Every brand has its own product page with photo and full description.

Brands and prices 628-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	628-2Z	CN	PLN 4.38PLN 5.39 gross	supplier stockdispatch in 2 working days
KOYO	628 ZZM5machined brass cage	CN	PLN 6.70PLN 8.24 gross	supplier stockdispatch in 2 working days
SKF	628-ZZ	CN	PLN 8.10PLN 9.96 gross	supplier stockdispatch in 2 working days
NTN	628-ZZ5K	CN	PLN 11.56PLN 14.22 gross	supplier stockdispatch in 2 working days
NSK	628 ZZMC3 (ZZ)machined brass cage	C3	PLN 12.74PLN 15.67 gross	supplier stockdispatch in 2 working days
SKF	628/6-ZZ	CN	PLN 17.60PLN 21.65 gross	supplier stockdispatch in 2 working days
SKF	628/8-2Z	CN	PLN 18.53PLN 22.79 gross	supplier stockdispatch in 2 working days
SKF	628/5-ZZ	CN	PLN 18.95PLN 23.31 gross	supplier stockdispatch in 2 working days
SKF	628/7-ZZ	CN	PLN 20.31PLN 24.98 gross	supplier stockdispatch in 2 working days
SKF	628/4-ZZ	CN	PLN 22.14PLN 27.23 gross	supplier stockdispatch in 2 working days
SKF	628/9-2Z	CN	PLN 24.78PLN 30.48 gross	supplier stockdispatch in 2 working days

▸Special designs 628-2Z (9) – stainless steel, snap ring, manufacturer specials

ZEN	S628-2Z	CN	PLN 7.24PLN 8.91 gross	supplier stockdispatch in 2 working days
SKF	W628/7-ZZ	CN	PLN 26.19PLN 32.21 gross	supplier stockdispatch in 2 working days
SKF	W628/8-ZZ	CN	PLN 27.76PLN 34.14 gross	supplier stockdispatch in 2 working days
SKF	W628/5-ZZ	CN	PLN 31.16PLN 38.33 gross	supplier stockdispatch in 2 working days
SKF	W628/6-2Z	CN	PLN 33.70PLN 41.45 gross	supplier stockdispatch in 2 working days
SKF	W628/6 R-2Z	CN	PLN 37.10PLN 45.63 gross	supplier stockdispatch in 2 working days
SKF	W628/9-ZZ	CN	PLN 42.22PLN 51.93 gross	supplier stockdispatch in 2 working days
SKF	W628/4-ZZ	CN	PLN 46.44PLN 57.12 gross	supplier stockdispatch in 2 working days
SKF	W628-2Z	CN	PLN 52.32PLN 64.35 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 628

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 628-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
SKF	628-ZZ	2Z – metal shields, both sides
NKE	628-2Z	2Z – metal shields, both sides
KOYO	628 ZZM5	2Z – metal shields, both sides
ZEN	S628-2Z	2Z – metal shields, both sides
NTN	628-ZZ5K	2Z – metal shields, both sides
NSK	628 ZZMC3 (ZZ)	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 628-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 628-2Z

What are the dimensions of bearing 628-2Z?

Bore 8 mm, outside diameter 24 mm, width 8 mm. Standardised dimensions – the same for every manufacturer.

Are 628-2Z bearings from different brands interchangeable?

Yes. 628-ZZ SKF, 628-2Z NKE, 628 ZZM5 KOYO, 628-ZZ5K NTN, 628 ZZMC3 (ZZ) NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 628-2Z cost?

At Castomer from PLN 4.38 to PLN 24.78 net per piece depending on the manufacturer (SKF, NKE, KOYO, ZEN, NTN, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 628-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
