Deep groove ball bearing 6303-Z – 17×47×14 mm
9 offers · 5 manufacturers · net prices from PLN 10.37 · dispatch in 2 working days
6303-Z is a deep groove ball bearing with a 17 mm bore, 47 mm outside diameter and 14 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 17 mm
- outside D
- 47 mm
- width B
- 14 mm
- sealing
- Z
- mass
- 0.11 kg
- net price from
- PLN 10.37
Brands and prices 6303-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

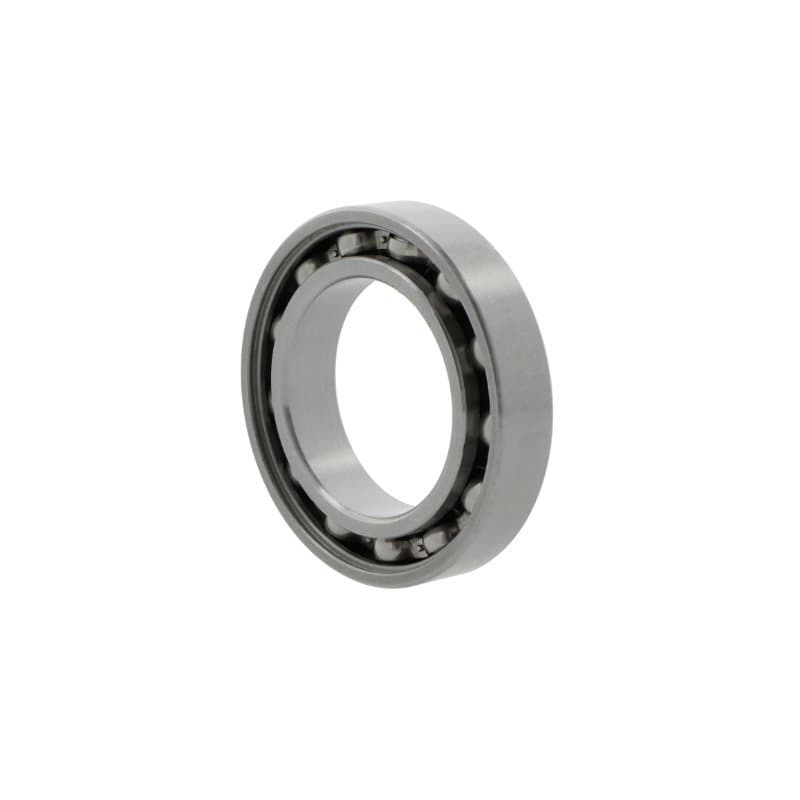

| FAG | 6303-ZRC3 | C3 | PLN 10.37PLN 12.76 gross | supplier stockdispatch in 2 working days | |
| NKE | 6303-Z | CN | PLN 10.97PLN 13.49 gross | supplier stockdispatch in 2 working days | |
| NKE | 6303-ZC3 | C3 | PLN 11.28PLN 13.87 gross | supplier stockdispatch in 2 working days | |
| NSK | 6303 Z | CN | PLN 11.50PLN 14.15 gross | supplier stockdispatch in 2 working days | |
| FAG | 6303-C-Z-C3 (-Z-C3) | C3 | PLN 13.39PLN 16.47 gross | supplier stockdispatch in 2 working days | |
| FAG | 6303-C-Z (-Z) | CN | PLN 15.12PLN 18.60 gross | supplier stockdispatch in 2 working days | |
| SKF | 6303-Z | CN | PLN 15.28PLN 18.79 gross | supplier stockdispatch in 2 working days | |
| SKF | 6303-ZC3 | C3 | PLN 17.55PLN 21.59 gross | supplier stockdispatch in 2 working days | |
| SNR | 6303 FT150ZZ | CN | PLN 33.53PLN 41.24 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6303
The same size in another design – open, shielded, tapered bore.
- 6303Open26 offers · from PLN 5.99 net
- 6303-2Z2Z – metal shields, both sides25 offers · from PLN 6.53 net
- 6303-2RS2RS – rubber contact seals, both sides17 offers · from PLN 6.53 net
- 6303-RSRS – rubber contact seal, one side8 offers · from PLN 11.23 net
- 6303-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 12.69 net
- 6303 KOpen · Tapered bore1 offer · from PLN 10.58 net
How manufacturers designate 6303-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6303-ZRC3 | Z – metal shield, one side |
| NKE | 6303-Z | Z – metal shield, one side |
| SKF | 6303-Z | Z – metal shield, one side |
| NSK | 6303 Z | Z – metal shield, one side |
| SNR | 6303 FT150ZZ | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6303-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6303-Z
What are the dimensions of bearing 6303-Z?
Bore 17 mm, outside diameter 47 mm, width 14 mm. Standardised dimensions – the same for every manufacturer.
Are 6303-Z bearings from different brands interchangeable?
Yes. 6303-ZRC3 FAG, 6303-Z NKE, 6303-Z SKF, 6303 Z NSK, 6303 FT150ZZ SNR are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6303-Z cost?
At Castomer from PLN 10.37 to PLN 33.53 net per piece depending on the manufacturer (FAG, NKE, SKF, NSK, SNR). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6303-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
