Deep groove ball bearing 6304-RS – 20×52×15 mm

9 offers · 4 manufacturers · net prices from PLN 14.26 · dispatch in 2 working days

6304-RS is a deep groove ball bearing with a 20 mm bore, 52 mm outside diameter and 15 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 20 mm
outside D: 52 mm
width B: 15 mm
sealing: RS
mass: 0.14 kg
net price from: PLN 14.26

Dimension drawing 6304-RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	20 mm
D – outside diameter	52 mm
B – width	15 mm
dynamic load rating C	15.9 kN (per SKF catalogue)
static load rating C₀	7.8 kN (per SKF catalogue)
mass	0.14 kg

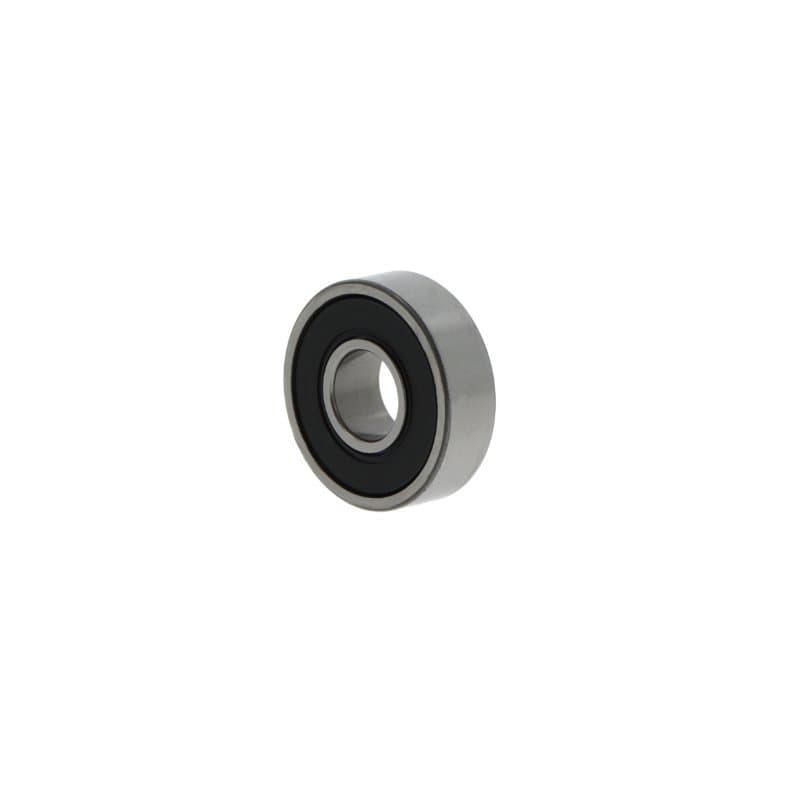

Pictured: FAG 6304-C2HRSC3. Every brand has its own product page with photo and full description.

Brands and prices 6304-RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
FAG	6304-C2HRSC3	C3	PLN 14.26PLN 17.54 gross	supplier stockdispatch in 2 working days
FAG	6304-C2HRS	C2	PLN 14.26PLN 17.54 gross	supplier stockdispatch in 2 working days
NKE	6304-RSR	CN	PLN 14.80PLN 18.20 gross	supplier stockdispatch in 2 working days
NKE	6304-RSRC3	C3	PLN 14.80PLN 18.20 gross	supplier stockdispatch in 2 working days
NSK	6304 DU	CN	PLN 15.12PLN 18.60 gross	supplier stockdispatch in 2 working days
FAG	6304-C-HRS (-RSR)	CN	PLN 19.88PLN 24.45 gross	supplier stockdispatch in 2 working days
FAG	6304-C-HRS-C3 (-RSR-C3)	C3	PLN 20.47PLN 25.18 gross	supplier stockdispatch in 2 working days
SKF	6304-RSHC3	C3	PLN 23.17PLN 28.50 gross	supplier stockdispatch in 2 working days
SKF	6304-RSH	CN	PLN 24.24PLN 29.82 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6304

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6304-RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6304-C2HRSC3	RS – rubber contact seal, one side
NKE	6304-RSR	RS – rubber contact seal, one side
SKF	6304-RSHC3	RS – rubber contact seal, one side
NSK	6304 DU	RS – rubber contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6304-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6304-RS

What are the dimensions of bearing 6304-RS?

Bore 20 mm, outside diameter 52 mm, width 15 mm. Standardised dimensions – the same for every manufacturer.

Are 6304-RS bearings from different brands interchangeable?

Yes. 6304-C2HRSC3 FAG, 6304-RSR NKE, 6304-RSHC3 SKF, 6304 DU NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6304-RS cost?

At Castomer from PLN 14.26 to PLN 24.24 net per piece depending on the manufacturer (FAG, NKE, SKF, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6304-RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
