Deep groove ball bearing 6306-RS – 30×72×19 mm

10 offers · 5 manufacturers · net prices from PLN 22.52 · dispatch in 2 working days

6306-RS is a deep groove ball bearing with a 30 mm bore, 72 mm outside diameter and 19 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 30 mm
outside D: 72 mm
width B: 19 mm
sealing: RS
mass: 0.34 kg
net price from: PLN 22.52

Dimension drawing 6306-RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	30 mm
D – outside diameter	72 mm
B – width	19 mm
dynamic load rating C	29.6 kN (per SKF catalogue)
static load rating C₀	16 kN (per SKF catalogue)
mass	0.34 kg

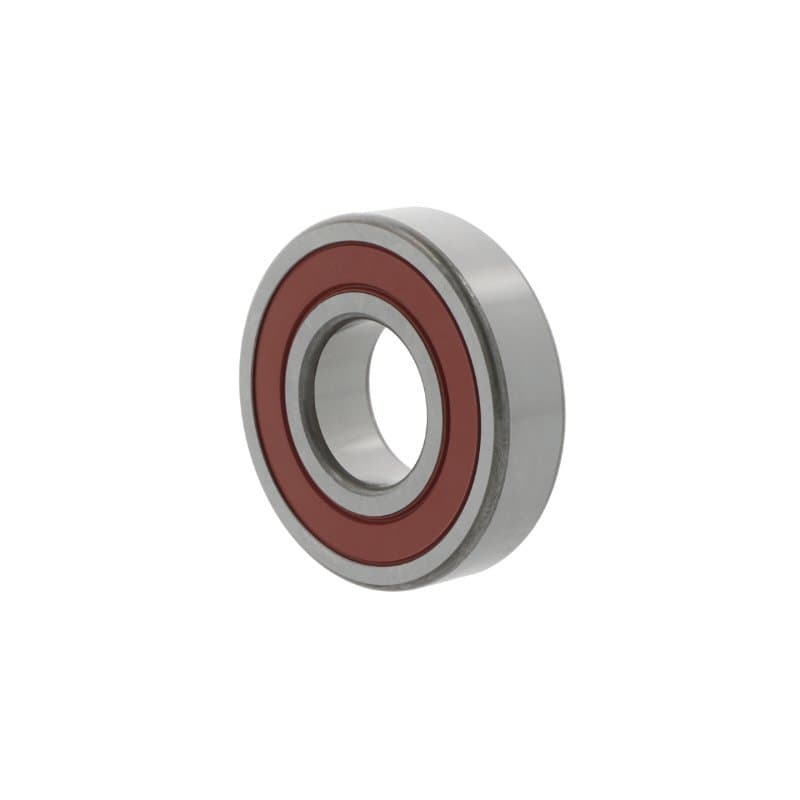

Pictured: NKE 6306-RSRC3. Every brand has its own product page with photo and full description.

Brands and prices 6306-RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	6306-RSRC3	C3	PLN 22.52PLN 27.70 gross	supplier stockdispatch in 2 working days
FAG	6306-C2HRSC3	C3	PLN 23.11PLN 28.43 gross	supplier stockdispatch in 2 working days
FAG	6306-C2HRS	C2	PLN 23.11PLN 28.43 gross	supplier stockdispatch in 2 working days
NKE	6306-RSR	CN	PLN 24.14PLN 29.69 gross	supplier stockdispatch in 2 working days
NSK	6306-DUC4	C4	PLN 29.05PLN 35.73 gross	supplier stockdispatch in 2 working days
KOYO	6306 RS	CN	PLN 30.19PLN 37.13 gross	supplier stockdispatch in 2 working days
FAG	6306-RSRC3	C3	PLN 31.21PLN 38.39 gross	supplier stockdispatch in 2 working days
FAG	6306-C-HRS (-RSR)	CN	PLN 31.21PLN 38.39 gross	supplier stockdispatch in 2 working days
SKF	6306-RS1C3	C3	PLN 33.86PLN 41.65 gross	supplier stockdispatch in 2 working days
SKF	6306-RS1	CN	PLN 35.63PLN 43.82 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6306

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6306-RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6306-C2HRSC3	RS – rubber contact seal, one side
NKE	6306-RSRC3	RS – rubber contact seal, one side
SKF	6306-RS1C3	RS – rubber contact seal, one side
NSK	6306-DUC4	RS – rubber contact seal, one side
KOYO	6306 RS	RS – rubber contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6306-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6306-RS

What are the dimensions of bearing 6306-RS?

Bore 30 mm, outside diameter 72 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.

Are 6306-RS bearings from different brands interchangeable?

Yes. 6306-C2HRSC3 FAG, 6306-RSRC3 NKE, 6306-RS1C3 SKF, 6306-DUC4 NSK, 6306 RS KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6306-RS cost?

At Castomer from PLN 22.52 to PLN 35.63 net per piece depending on the manufacturer (FAG, NKE, SKF, NSK, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6306-RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
