Deep groove ball bearing 6308 – 40×90×23 mm

43 offers · 11 manufacturers · net prices from PLN 19.72 · dispatch in 2 working days

6308 is a deep groove ball bearing with a 40 mm bore, 90 mm outside diameter and 23 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 40 mm
outside D: 90 mm
width B: 23 mm
sealing: open
mass: 0.64 kg
net price from: PLN 19.72

Dimension drawing 6308 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	40 mm
D – outside diameter	90 mm
B – width	23 mm
dynamic load rating C	42.3 kN (per SKF catalogue)
static load rating C₀	24 kN (per SKF catalogue)
mass	0.64 kg

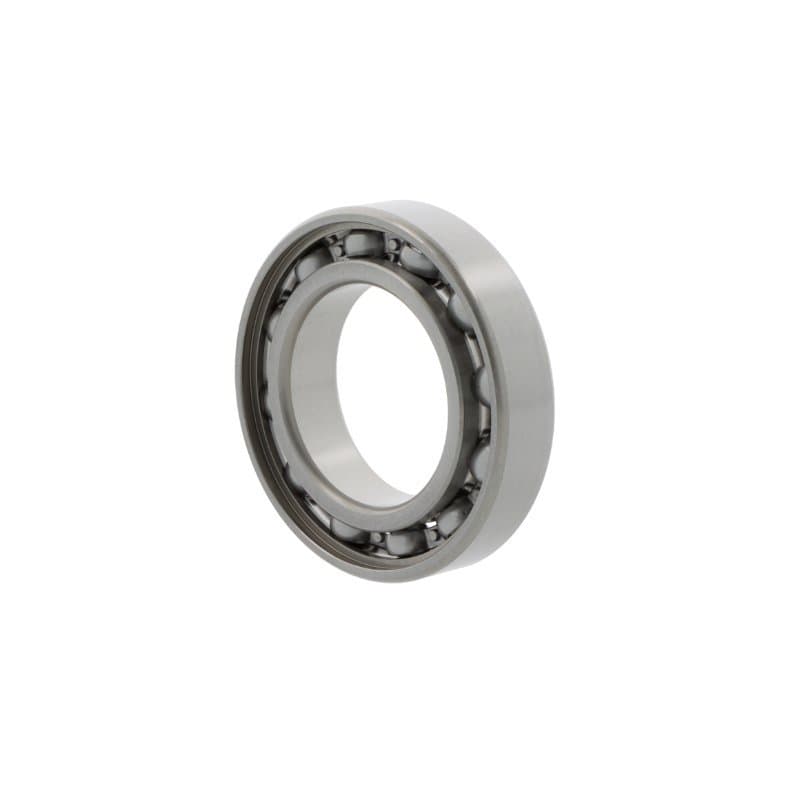

Pictured: ZEN 6308 C3. Every brand has its own product page with photo and full description.

Brands and prices 6308

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	6308 C3	C3	PLN 19.72PLN 24.26 gross	supplier stockdispatch in 2 working days
SNR	6308 C3	C3	PLN 22.14PLN 27.23 gross	supplier stockdispatch in 2 working days
NKE	6308 C3	C3	PLN 24.84PLN 30.55 gross	supplier stockdispatch in 2 working days
NKE	6308	CN	PLN 25.32PLN 31.14 gross	supplier stockdispatch in 2 working days
ZEN	6308	CN	PLN 27.59PLN 33.94 gross	supplier stockdispatch in 2 working days
SNR	6308 EEreinforced design, higher load rating	CN	PLN 28.78PLN 35.40 gross	supplier stockdispatch in 2 working days
NTN	6308 C3	C3	PLN 30.13PLN 37.06 gross	supplier stockdispatch in 2 working days
NACHI	6308 CMclearance for electric motors (quiet running)	CN	PLN 30.24PLN 37.20 gross	supplier stockdispatch in 2 working days
INNE	6308 C3	C3	PLN 30.29PLN 37.26 gross	supplier stockdispatch in 2 working days
FAG	6308 C3	C3	PLN 32.12PLN 39.51 gross	supplier stockdispatch in 2 working days
TIMKEN	6308-C3	C3	PLN 32.18PLN 39.58 gross	supplier stockdispatch in 2 working days
NSK	6308 C3	C3	PLN 33.64PLN 41.38 gross	supplier stockdispatch in 2 working days
SKF	6308 C3	C3	PLN 35.32PLN 43.44 gross	supplier stockdispatch in 2 working days
NTN	6308 CMclearance for electric motors (quiet running)	CN	PLN 36.18PLN 44.50 gross	supplier stockdispatch in 2 working days
KOYO	6308 CMclearance for electric motors (quiet running)	CN	PLN 38.72PLN 47.63 gross	supplier stockdispatch in 2 working days
NACHI	6308-2NSE9C3reinforced design, higher load rating	CN	PLN 39.32PLN 48.36 gross	supplier stockdispatch in 2 working days
NACHI	6308-2NSE9CMreinforced design, higher load rating, machined brass cage	CN	PLN 39.32PLN 48.36 gross	supplier stockdispatch in 2 working days
KOYO	6308 C4	C4	PLN 40.67PLN 50.02 gross	supplier stockdispatch in 2 working days
NSK	6308 C4	C4	PLN 42.50PLN 52.28 gross	supplier stockdispatch in 2 working days
SKF	6308	CN	PLN 43.53PLN 53.54 gross	supplier stockdispatch in 2 working days
NACHI	6308-2NSE9NRCMreinforced design, higher load rating, clearance for electric motors (quiet running)	CN	PLN 51.14PLN 62.90 gross	supplier stockdispatch in 2 working days
FAG	6308-C-C4	C4	PLN 51.30PLN 63.10 gross	supplier stockdispatch in 2 working days
NTN	6308 C4	C4	PLN 52.71PLN 64.83 gross	supplier stockdispatch in 2 working days
SKF	6308 C4	C4	PLN 62.10PLN 76.38 gross	supplier stockdispatch in 2 working days
SKF	6308 TN9C3glass-fibre reinforced PA66 cage (SKF)	C3	PLN 91.15PLN 112.11 gross	supplier stockdispatch in 2 working days
FAG	6308 TB40° contact angle	CN	PLN 118.85PLN 146.19 gross	supplier stockdispatch in 2 working days
SKF	6308 TN9/C4glass-fibre reinforced PA66 cage (SKF)	C4	PLN 126.03PLN 155.02 gross	supplier stockdispatch in 2 working days
NSK	6308 MC3machined brass cage	C3	PLN 148.33PLN 182.45 gross	supplier stockdispatch in 2 working days
NSK	6308 Mmachined brass cage	CN	PLN 148.33PLN 182.45 gross	supplier stockdispatch in 2 working days
SNR	6308 FT150	CN	PLN 183.11PLN 225.23 gross	supplier stockdispatch in 2 working days
FAG	6308-MA-C3machined brass cage, outer ring centred	C3	PLN 296.94PLN 365.24 gross	supplier stockdispatch in 2 working days
FAG	6308-M-C3machined brass cage	C3	PLN 316.07PLN 388.77 gross	supplier stockdispatch in 2 working days
FAG	6308 MC4J20AAmachined brass cage, two-piece pressed steel cage	C4	PLN 1,519.28PLN 1,868.71 gross	supplier stockdispatch in 2 working days

▸Special designs 6308 (10) – stainless steel, snap ring, manufacturer specials

FAG	6308-C (open)reinforced design, higher load rating, snap ring groove	CN	PLN 32.12PLN 39.51 gross	supplier stockdispatch in 2 working days
NACHI	6308 NRsnap ring groove with snap ring	CN	PLN 45.15PLN 55.53 gross	supplier stockdispatch in 2 working days
NKE	6308-NR-C3snap ring groove with snap ring	C3	PLN 47.31PLN 58.19 gross	supplier stockdispatch in 2 working days
FAG	6308-N-C3snap ring groove	C3	PLN 58.38PLN 71.81 gross	supplier stockdispatch in 2 working days
FAG	6308-C-Nsnap ring groove	CN	PLN 58.42PLN 71.86 gross	supplier stockdispatch in 2 working days
NTN	6308 NRC3snap ring groove with snap ring	C3	PLN 62.21PLN 76.52 gross	supplier stockdispatch in 2 working days
NTN	6308 NRsnap ring groove with snap ring	CN	PLN 62.21PLN 76.52 gross	supplier stockdispatch in 2 working days
FAG	6308-NRsnap ring groove with snap ring	CN	PLN 66.85PLN 82.23 gross	supplier stockdispatch in 2 working days
SKF	6308 Nsnap ring groove	CN	PLN 94.28PLN 115.96 gross	supplier stockdispatch in 2 working days
ZEN	S6308	CN	PLN 106.43PLN 130.91 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6308

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6308

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6308 C3	Open
SKF	6308 C3	Open
NTN	6308 C3	Open
NACHI	6308 CM	Open
NSK	6308 C3	Open
ZEN	6308 C3	Open
SNR	6308 C3	Open
NKE	6308 C3	Open
KOYO	6308 CM	Open
INNE	6308 C3	Open
TIMKEN	6308-C3	Open

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6308 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6308

What are the dimensions of bearing 6308?

Bore 40 mm, outside diameter 90 mm, width 23 mm. Standardised dimensions – the same for every manufacturer.

Are 6308 bearings from different brands interchangeable?

Yes. 6308 C3 FAG, 6308 C3 SKF, 6308 C3 NTN, 6308 CM NACHI, 6308 C3 NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6308 cost?

At Castomer from PLN 19.72 to PLN 1,519.28 net per piece depending on the manufacturer (FAG, SKF, NTN, NACHI, NSK, ZEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6308?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
