Deep groove ball bearing 6309-RS – 45×100×25 mm

8 offers · 5 manufacturers · net prices from PLN 43.58 · dispatch in 2 working days

6309-RS is a deep groove ball bearing with a 45 mm bore, 100 mm outside diameter and 25 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 45 mm
outside D: 100 mm
width B: 25 mm
sealing: RS
mass: 0.83 kg
net price from: PLN 43.58

Dimension drawing 6309-RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	45 mm
D – outside diameter	100 mm
B – width	25 mm
dynamic load rating C	55.3 kN (per SKF catalogue)
static load rating C₀	31.5 kN (per SKF catalogue)
mass	0.83 kg

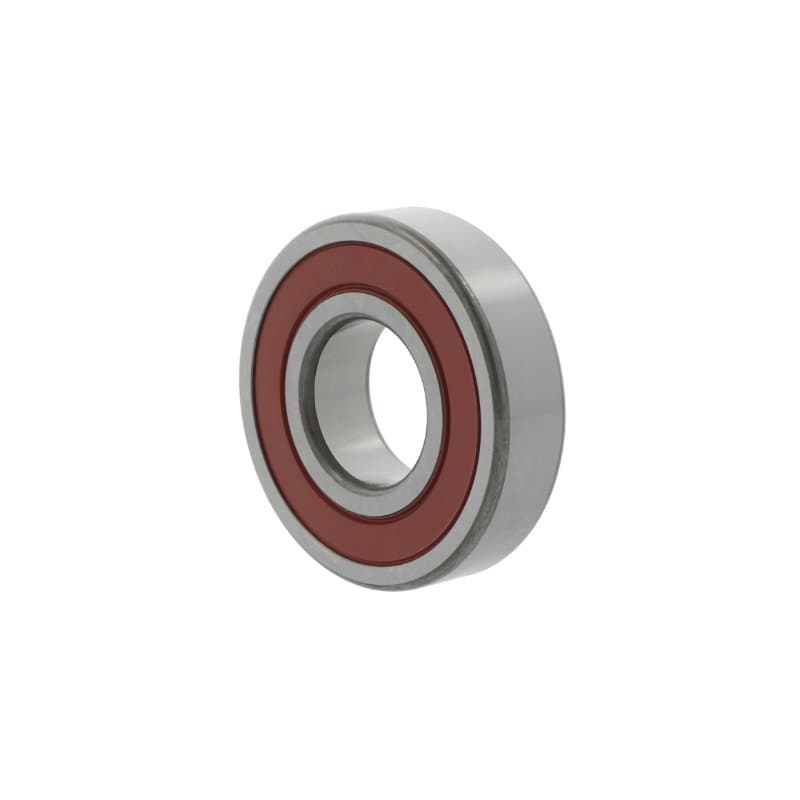

Pictured: NSK 6309-DU. Every brand has its own product page with photo and full description.

Brands and prices 6309-RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NSK	6309-DU	CN	PLN 43.58PLN 53.60 gross	supplier stockdispatch in 2 working days
NKE	6309-RSRC3	C3	PLN 54.00PLN 66.42 gross	supplier stockdispatch in 2 working days
NKE	6309-RSR	CN	PLN 54.00PLN 66.42 gross	supplier stockdispatch in 2 working days
FAG	6309-RSRC3	C3	PLN 72.15PLN 88.74 gross	supplier stockdispatch in 2 working days
FAG	6309-RSR	CN	PLN 73.28PLN 90.13 gross	supplier stockdispatch in 2 working days
SKF	6309-RS1C3	C3	PLN 78.95PLN 97.11 gross	supplier stockdispatch in 2 working days
SKF	6309-RS1	CN	PLN 83.11PLN 102.23 gross	supplier stockdispatch in 2 working days
NTN	6309-LU	CN	PLN 93.52PLN 115.03 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6309

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6309-RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NKE	6309-RSRC3	RS – rubber contact seal, one side
FAG	6309-RSRC3	RS – rubber contact seal, one side
SKF	6309-RS1C3	RS – rubber contact seal, one side
NSK	6309-DU	RS – rubber contact seal, one side
NTN	6309-LU	RS – rubber contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6309-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6309-RS

What are the dimensions of bearing 6309-RS?

Bore 45 mm, outside diameter 100 mm, width 25 mm. Standardised dimensions – the same for every manufacturer.

Are 6309-RS bearings from different brands interchangeable?

Yes. 6309-RSRC3 NKE, 6309-RSRC3 FAG, 6309-RS1C3 SKF, 6309-DU NSK, 6309-LU NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6309-RS cost?

At Castomer from PLN 43.58 to PLN 93.52 net per piece depending on the manufacturer (NKE, FAG, SKF, NSK, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6309-RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
