Deep groove ball bearing 6313-Z – 65×140×33 mm
11 offers · 4 manufacturers · net prices from PLN 127.12 · dispatch in 2 working days
6313-Z is a deep groove ball bearing with a 65 mm bore, 140 mm outside diameter and 33 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 65 mm
- outside D
- 140 mm
- width B
- 33 mm
- sealing
- Z
- mass
- 2.06 kg
- net price from
- PLN 127.12
Brands and prices 6313-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

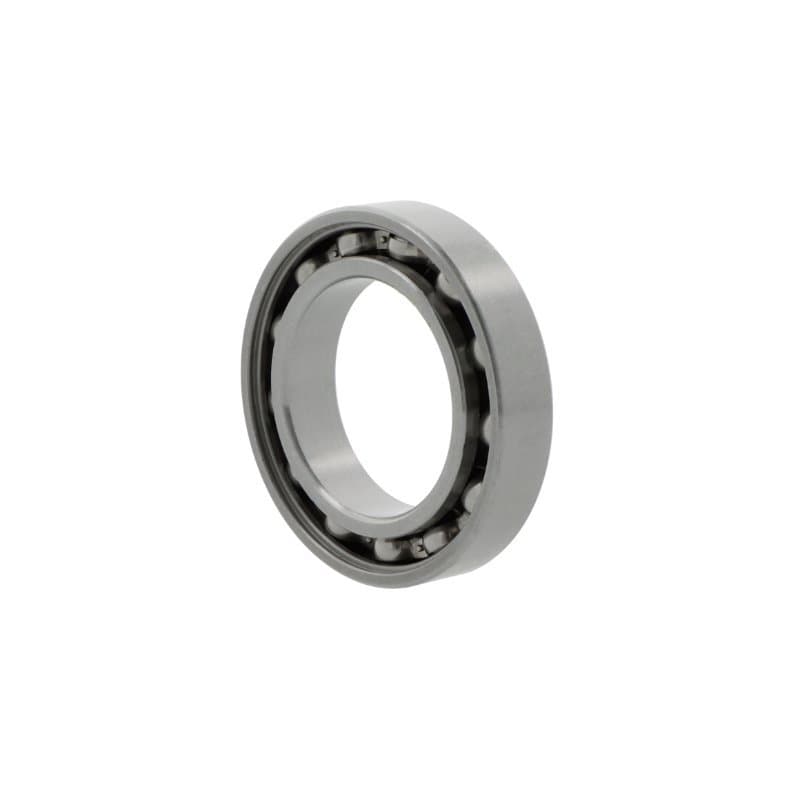

| NACHI | 6313 ZEreinforced design, higher load rating | CN | PLN 127.12PLN 156.36 gross | supplier stockdispatch in 2 working days | |
| FAG | 6313-C-Z (-Z) | CN | PLN 189.43PLN 233.00 gross | supplier stockdispatch in 2 working days | |
| FAG | 6313-C-Z-C3 (-Z-C3) | C3 | PLN 200.02PLN 246.02 gross | supplier stockdispatch in 2 working days | |
| FAG | 6313-C2Z | C2 | PLN 207.20PLN 254.86 gross | supplier stockdispatch in 2 working days | |
| FAG | 6313-C2ZC3 | C3 | PLN 207.20PLN 254.86 gross | supplier stockdispatch in 2 working days | |
| NSK | 6313 ZC3 | C3 | PLN 220.59PLN 271.33 gross | supplier stockdispatch in 2 working days | |
| NSK | 6313 Z | CN | PLN 220.59PLN 271.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 6313-Z | CN | PLN 237.17PLN 291.72 gross | supplier stockdispatch in 2 working days | |
| SKF | 6313-ZC3 | C3 | PLN 237.17PLN 291.72 gross | supplier stockdispatch in 2 working days |
▸Special designs 6313-Z (2) – stainless steel, snap ring, manufacturer specials
| NSK | 6313-ZNRsnap ring groove with snap ring | CN | PLN 182.20PLN 224.11 gross | supplier stockdispatch in 2 working days | |
| NSK | 6313-ZNRC3snap ring groove with snap ring | C3 | PLN 182.20PLN 224.11 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6313
The same size in another design – open, shielded, tapered bore.
- 6313Open42 offers · from PLN 68.09 net
- 6313-2Z2Z – metal shields, both sides20 offers · from PLN 88.67 net
- 6313-2RS2RS – rubber contact seals, both sides14 offers · from PLN 143.69 net
- 6313-RSRS – rubber contact seal, one side6 offers · from PLN 200.93 net
- 6313-RZRZ – rubber non-contact seal, one side3 offers · from PLN 511.93 net
- 6313-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 189.65 net
How manufacturers designate 6313-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NSK | 6313 ZC3 | Z – metal shield, one side |
| FAG | 6313-C-Z (-Z) | Z – metal shield, one side |
| SKF | 6313-Z | Z – metal shield, one side |
| NACHI | 6313 ZE | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6313-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6313-Z
What are the dimensions of bearing 6313-Z?
Bore 65 mm, outside diameter 140 mm, width 33 mm. Standardised dimensions – the same for every manufacturer.
Are 6313-Z bearings from different brands interchangeable?
Yes. 6313 ZC3 NSK, 6313-C-Z (-Z) FAG, 6313-Z SKF, 6313 ZE NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6313-Z cost?
At Castomer from PLN 127.12 to PLN 237.17 net per piece depending on the manufacturer (NSK, FAG, SKF, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6313-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
