Deep groove ball bearing 6314-Z – 70×150×35 mm
11 offers · 5 manufacturers · net prices from PLN 152.66 · dispatch in 2 working days
6314-Z is a deep groove ball bearing with a 70 mm bore, 150 mm outside diameter and 35 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 70 mm
- outside D
- 150 mm
- width B
- 35 mm
- sealing
- Z
- mass
- 2.6 kg
- net price from
- PLN 152.66
Brands and prices 6314-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

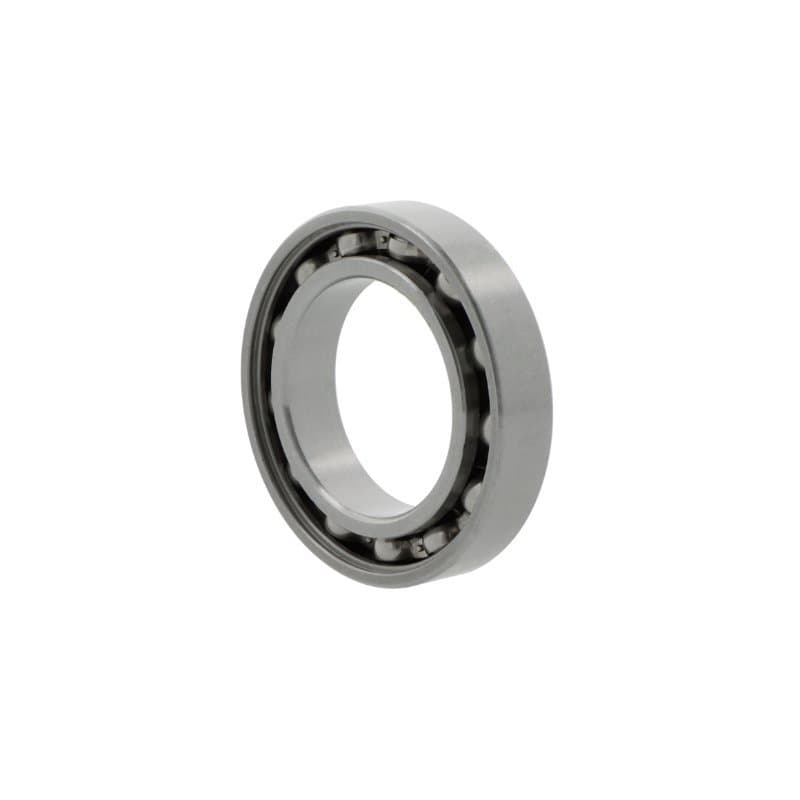

| NACHI | 6314 ZEreinforced design, higher load rating | CN | PLN 152.66PLN 187.77 gross | supplier stockdispatch in 2 working days | |
| FAG | 6314-ZRC3 | C3 | PLN 214.59PLN 263.95 gross | supplier stockdispatch in 2 working days | |
| FAG | 6314-ZR | CN | PLN 218.05PLN 268.20 gross | supplier stockdispatch in 2 working days | |
| NTN | 6314-ZC3 | C3 | PLN 231.61PLN 284.88 gross | supplier stockdispatch in 2 working days | |
| NTN | 6314-Z | CN | PLN 231.61PLN 284.88 gross | supplier stockdispatch in 2 working days | |
| SKF | 6314-ZC3 | C3 | PLN 241.76PLN 297.36 gross | supplier stockdispatch in 2 working days | |
| SKF | 6314-Z | CN | PLN 241.76PLN 297.36 gross | supplier stockdispatch in 2 working days | |
| NSK | 6314-Z | CN | PLN 264.93PLN 325.86 gross | supplier stockdispatch in 2 working days | |
| NSK | 6314 ZC3 | C3 | PLN 264.93PLN 325.86 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6314
The same size in another design – open, shielded, tapered bore.
- 6314Open41 offers · from PLN 79.81 net
- 6314-2Z2Z – metal shields, both sides24 offers · from PLN 100.98 net
- 6314-2RS2RS – rubber contact seals, both sides15 offers · from PLN 105.02 net
- 6314-RZRZ – rubber non-contact seal, one side4 offers · from PLN 547.72 net
- 6314-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 276.11 net
- 6314-RSRS – rubber contact seal, one side2 offers · from PLN 282.04 net
How manufacturers designate 6314-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6314-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6314-Z
What are the dimensions of bearing 6314-Z?
Bore 70 mm, outside diameter 150 mm, width 35 mm. Standardised dimensions – the same for every manufacturer.
Are 6314-Z bearings from different brands interchangeable?
Yes. 6314-ZC3 SKF, 6314-Z NSK, 6314-ZRC3 FAG, 6314-ZC3 NTN, 6314 ZE NACHI are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6314-Z cost?
At Castomer from PLN 152.66 to PLN 264.93 net per piece depending on the manufacturer (SKF, NSK, FAG, NTN, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6314-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
