Deep groove ball bearing 6315-Z – 75×160×37 mm
7 offers · 4 manufacturers · net prices from PLN 252.88 · dispatch in 2 working days
6315-Z is a deep groove ball bearing with a 75 mm bore, 160 mm outside diameter and 37 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 75 mm
- outside D
- 160 mm
- width B
- 37 mm
- sealing
- Z
- mass
- 3.15 kg
- net price from
- PLN 252.88
Brands and prices 6315-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

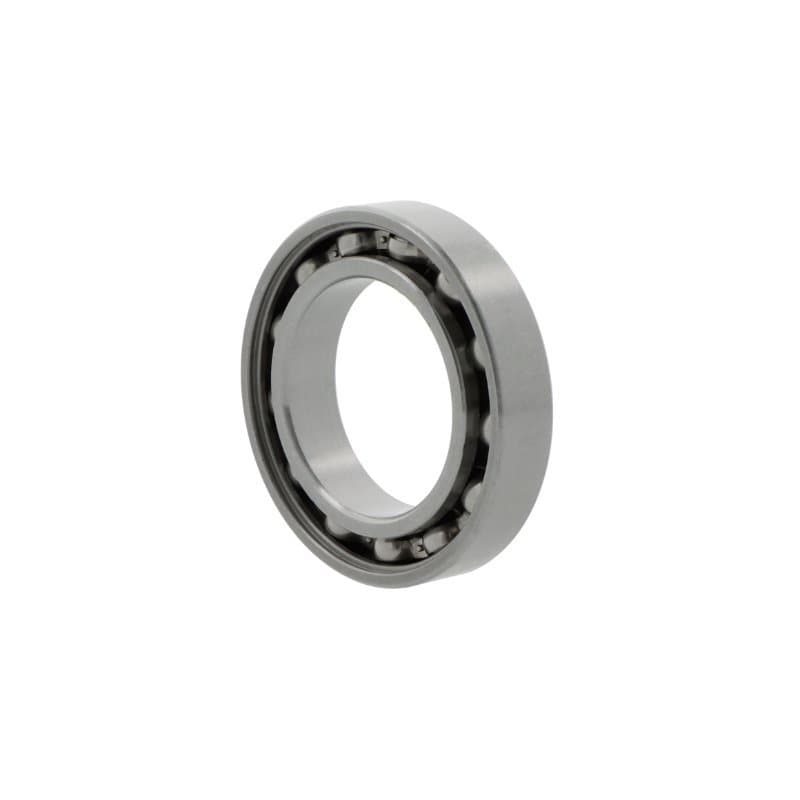

| KOYO | 6315 Z | CN | PLN 252.88PLN 311.04 gross | supplier stockdispatch in 2 working days | |
| FAG | 6315-Z-C4 | C4 | PLN 273.24PLN 336.09 gross | supplier stockdispatch in 2 working days | |
| FAG | 6315-ZR | CN | PLN 278.91PLN 343.06 gross | supplier stockdispatch in 2 working days | |
| FAG | 6315-ZRC3 | C3 | PLN 295.87PLN 363.92 gross | supplier stockdispatch in 2 working days | |
| NSK | 6315 Z | CN | PLN 314.18PLN 386.44 gross | supplier stockdispatch in 2 working days | |
| SKF | 6315-ZC3 | C3 | PLN 337.67PLN 415.33 gross | supplier stockdispatch in 2 working days |
▸Special designs 6315-Z (1) – stainless steel, snap ring, manufacturer specials
| NSK | 6315-ZNRsnap ring groove with snap ring | CN | PLN 408.41PLN 502.34 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6315
The same size in another design – open, shielded, tapered bore.
- 6315Open36 offers · from PLN 91.37 net
- 6315-2Z2Z – metal shields, both sides21 offers · from PLN 116.59 net
- 6315-2RS2RS – rubber contact seals, both sides15 offers · from PLN 216.54 net
- 6315-RZRZ – rubber non-contact seal, one side3 offers · from PLN 698.06 net
- 6315-RSRS – rubber contact seal, one side2 offers · from PLN 295.59 net
- 6315-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 344.85 net
How manufacturers designate 6315-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6315-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6315-Z
What are the dimensions of bearing 6315-Z?
Bore 75 mm, outside diameter 160 mm, width 37 mm. Standardised dimensions – the same for every manufacturer.
Are 6315-Z bearings from different brands interchangeable?
Yes. 6315-Z-C4 FAG, 6315 Z NSK, 6315 Z KOYO, 6315-ZC3 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6315-Z cost?
At Castomer from PLN 252.88 to PLN 337.67 net per piece depending on the manufacturer (FAG, NSK, KOYO, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6315-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
