Deep groove ball bearing 6317-Z – 85×180×41 mm

6 offers · 4 manufacturers · net prices from PLN 306.93 · dispatch in 2 working days

6317-Z is a deep groove ball bearing with a 85 mm bore, 180 mm outside diameter and 41 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 85 mm
outside D: 180 mm
width B: 41 mm
sealing: Z
mass: 4.2 kg
net price from: PLN 306.93

Dimension drawing 6317-Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	85 mm
D – outside diameter	180 mm
B – width	41 mm
dynamic load rating C	140 kN (per SKF catalogue)
static load rating C₀	96.5 kN (per SKF catalogue)
mass	4.2 kg

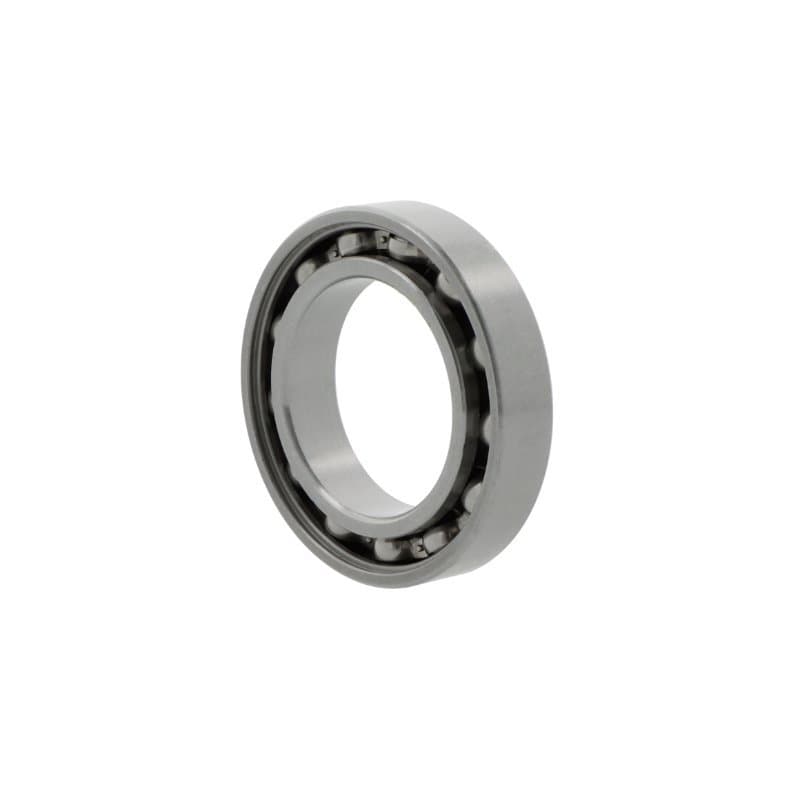

Pictured: NACHI 6317 ZC3. Every brand has its own product page with photo and full description.

Brands and prices 6317-Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6317 ZC3	C3	PLN 306.93PLN 377.52 gross	supplier stockdispatch in 2 working days
FAG	6317-ZRC3	C3	PLN 372.54PLN 458.22 gross	supplier stockdispatch in 2 working days
FAG	6317-ZR	CN	PLN 420.61PLN 517.35 gross	supplier stockdispatch in 2 working days
SKF	6317-Z	CN	PLN 427.89PLN 526.30 gross	supplier stockdispatch in 2 working days
NSK	6317-Z	CN	PLN 479.47PLN 589.75 gross	supplier stockdispatch in 2 working days
NSK	6317-ZC3	C3	PLN 479.53PLN 589.82 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6317

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6317-Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6317-ZRC3	Z – metal shield, one side
NSK	6317-Z	Z – metal shield, one side
NACHI	6317 ZC3	Z – metal shield, one side
SKF	6317-Z	Z – metal shield, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6317-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6317-Z

What are the dimensions of bearing 6317-Z?

Bore 85 mm, outside diameter 180 mm, width 41 mm. Standardised dimensions – the same for every manufacturer.

Are 6317-Z bearings from different brands interchangeable?

Yes. 6317-ZRC3 FAG, 6317-Z NSK, 6317 ZC3 NACHI, 6317-Z SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6317-Z cost?

At Castomer from PLN 306.93 to PLN 479.53 net per piece depending on the manufacturer (FAG, NSK, NACHI, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6317-Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
