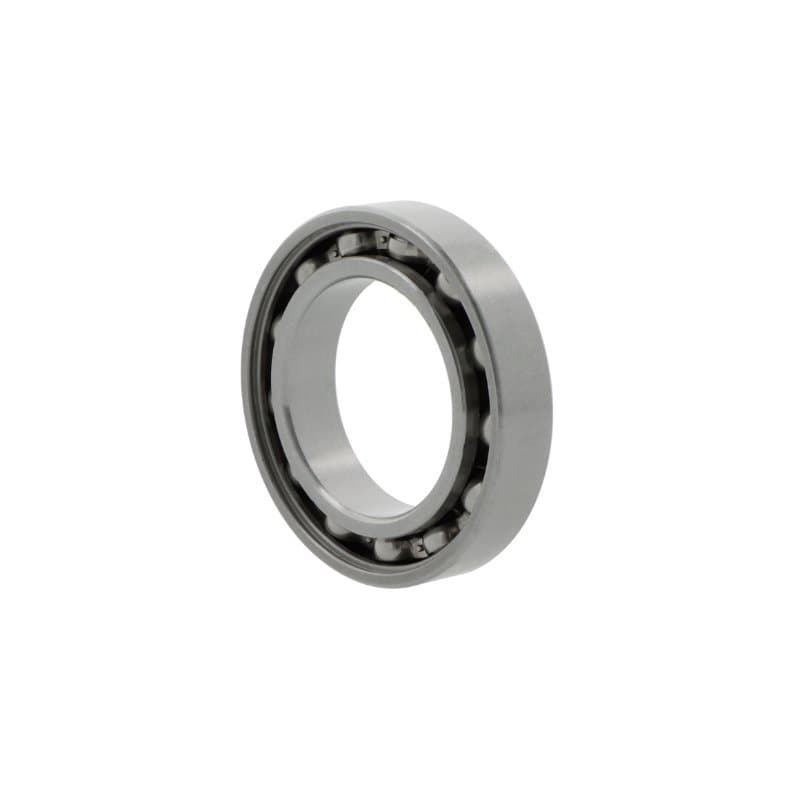

Deep groove ball bearing 6318-Z – 90×190×43 mm
4 offers · 3 manufacturers · net prices from PLN 389.72 · dispatch in 2 working days
6318-Z is a deep groove ball bearing with a 90 mm bore, 190 mm outside diameter and 43 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 90 mm
- outside D
- 190 mm
- width B
- 43 mm
- sealing
- Z
- mass
- 5.2 kg
- net price from
- PLN 389.72
Brands and prices 6318-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NACHI | 6318 Z | CN | PLN 389.72PLN 479.36 gross | supplier stockdispatch in 2 working days | |
| FAG | 6318-ZR | CN | PLN 437.51PLN 538.14 gross | supplier stockdispatch in 2 working days | |
| FAG | 6318-ZRC3 | C3 | PLN 437.51PLN 538.14 gross | supplier stockdispatch in 2 working days | |
| SKF | 6318-ZC3 | C3 | PLN 597.57PLN 735.01 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6318
The same size in another design – open, shielded, tapered bore.
- 6318Open33 offers · from PLN 174.20 net
- 6318-2Z2Z – metal shields, both sides17 offers · from PLN 155.14 net
- 6318-2RS2RS – rubber contact seals, both sides11 offers · from PLN 186.14 net
- 6318-RZRZ – rubber non-contact seal, one side2 offers · from PLN 2,311.47 net
- 6318-2RZ2RZ – rubber non-contact seals, both sides1 offer · from PLN 635.58 net
How manufacturers designate 6318-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6318-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6318-Z
What are the dimensions of bearing 6318-Z?
Bore 90 mm, outside diameter 190 mm, width 43 mm. Standardised dimensions – the same for every manufacturer.
Are 6318-Z bearings from different brands interchangeable?
Yes. 6318-ZR FAG, 6318 Z NACHI, 6318-ZC3 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6318-Z cost?
At Castomer from PLN 389.72 to PLN 597.57 net per piece depending on the manufacturer (FAG, NACHI, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6318-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
