Deep groove ball bearing 6804-2Z – 20×32×7 mm

5 offers · 3 manufacturers · net prices from PLN 21.76 · dispatch in 2 working days

6804-2Z is a deep groove ball bearing with a 20 mm bore, 32 mm outside diameter and 7 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 20 mm
outside D: 32 mm
width B: 7 mm
sealing: 2Z
mass: 0.02 kg
net price from: PLN 21.76

Dimension drawing 6804-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	20 mm
D – outside diameter	32 mm
B – width	7 mm
mass	0.02 kg

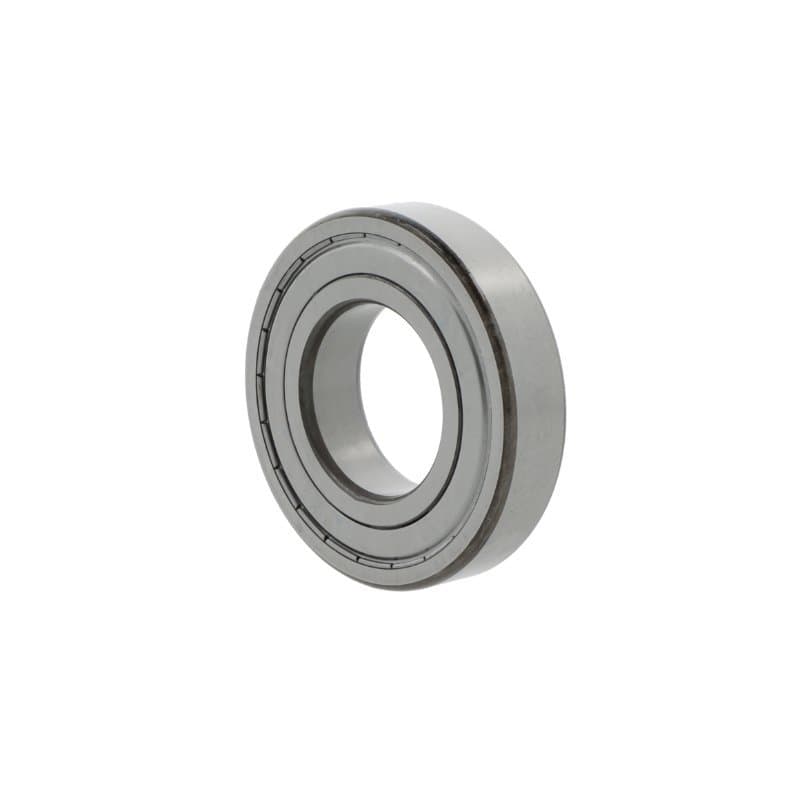

Pictured: NACHI 6804-ZZE. Every brand has its own product page with photo and full description.

Brands and prices 6804-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6804-ZZEreinforced design, higher load rating	CN	PLN 21.76PLN 26.76 gross	supplier stockdispatch in 2 working days
NSK	6804-ZZ	CN	PLN 31.21PLN 38.39 gross	supplier stockdispatch in 2 working days
KOYO	6804 ZZ	CN	PLN 34.83PLN 42.84 gross	supplier stockdispatch in 2 working days
NSK	6804-ZZC3	C3	PLN 35.10PLN 43.17 gross	supplier stockdispatch in 2 working days
NSK	6804-ZZNR	CN	PLN 41.37PLN 50.89 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6804

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6804-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NSK	6804-ZZ	2Z – metal shields, both sides
NACHI	6804-ZZE	2Z – metal shields, both sides
KOYO	6804 ZZ	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6804-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6804-2Z

What are the dimensions of bearing 6804-2Z?

Bore 20 mm, outside diameter 32 mm, width 7 mm. Standardised dimensions – the same for every manufacturer.

Are 6804-2Z bearings from different brands interchangeable?

Yes. 6804-ZZ NSK, 6804-ZZE NACHI, 6804 ZZ KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6804-2Z cost?

At Castomer from PLN 21.76 to PLN 41.37 net per piece depending on the manufacturer (NSK, NACHI, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6804-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
