Deep groove ball bearing 6814-2Z – 70×90×10 mm

4 offers · 4 manufacturers · net prices from PLN 103.95 · dispatch in 2 working days

6814-2Z is a deep groove ball bearing with a 70 mm bore, 90 mm outside diameter and 10 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 70 mm
outside D: 90 mm
width B: 10 mm
sealing: 2Z
net price from: PLN 103.95

Dimension drawing 6814-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	70 mm
D – outside diameter	90 mm
B – width	10 mm

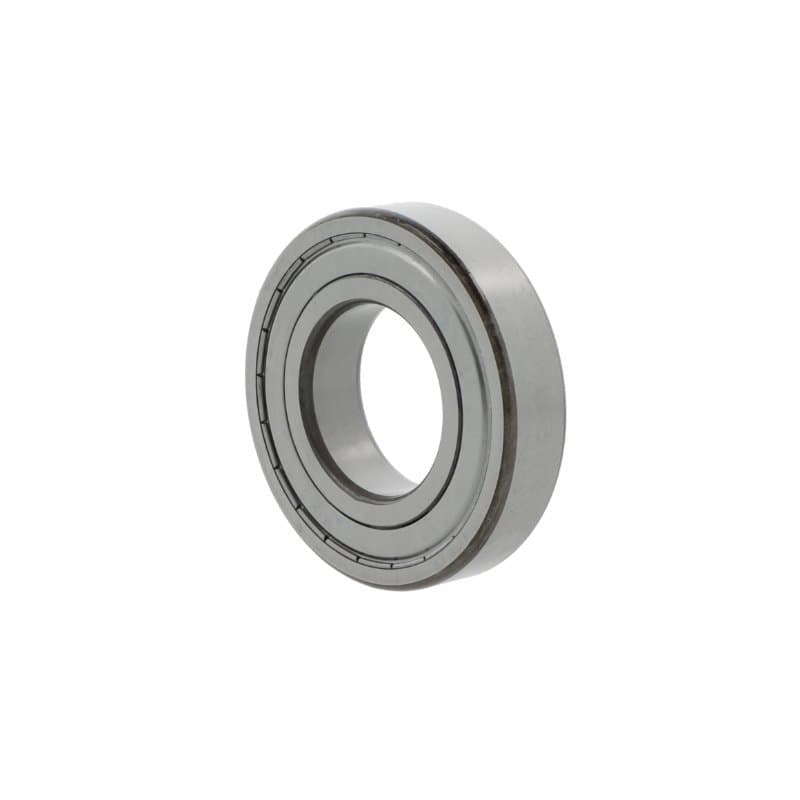

Pictured: NACHI 6814 ZZ. Every brand has its own product page with photo and full description.

Brands and prices 6814-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6814 ZZ	CN	PLN 103.95PLN 127.86 gross	supplier stockdispatch in 2 working days
NTN	6814-ZZ5K	CN	PLN 111.41PLN 137.03 gross	supplier stockdispatch in 2 working days
KOYO	6814 ZZ	CN	PLN 150.44PLN 185.04 gross	supplier stockdispatch in 2 working days
NSK	6814 ZZ	CN	PLN 153.09PLN 188.30 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6814

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6814-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NACHI	6814 ZZ	2Z – metal shields, both sides
NTN	6814-ZZ5K	2Z – metal shields, both sides
KOYO	6814 ZZ	2Z – metal shields, both sides
NSK	6814 ZZ	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6814-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6814-2Z

What are the dimensions of bearing 6814-2Z?

Bore 70 mm, outside diameter 90 mm, width 10 mm. Standardised dimensions – the same for every manufacturer.

Are 6814-2Z bearings from different brands interchangeable?

Yes. 6814 ZZ NACHI, 6814-ZZ5K NTN, 6814 ZZ KOYO, 6814 ZZ NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6814-2Z cost?

At Castomer from PLN 103.95 to PLN 153.09 net per piece depending on the manufacturer (NACHI, NTN, KOYO, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6814-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
