Deep groove ball bearing 687-2Z – 7×14×5 mm
4 offers · 3 manufacturers · net prices from PLN 5.02 · dispatch in 2 working days
687-2Z is a deep groove ball bearing with a 7 mm bore, 14 mm outside diameter and 5 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 7 mm
- outside D
- 14 mm
- width B
- 5 mm
- sealing
- 2Z
- net price from
- PLN 5.02
Brands and prices 687-2Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

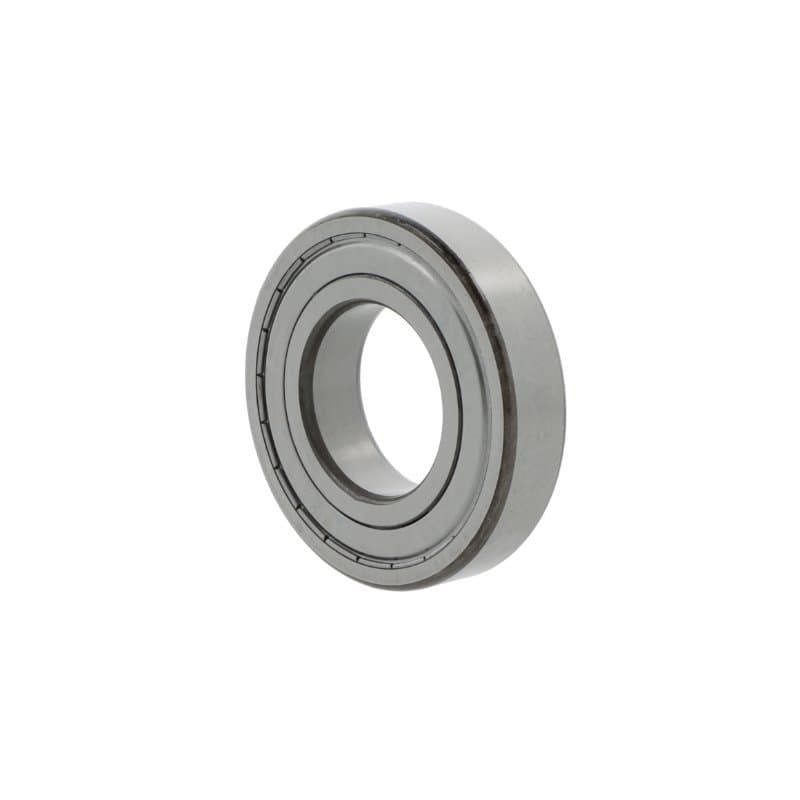

| NSK | 687 ZZ1MC3 (ZZ) | C3 | PLN 12.42PLN 15.28 gross | supplier stockdispatch in 2 working days | |
| FAG | 687-2Z | CN | PLN 12.91PLN 15.88 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 687
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 687-2Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 687-2Z | 2Z – metal shields, both sides |
| ZEN | S687-2Z | 2Z – metal shields, both sides |
| NSK | 687 ZZ1MC3 (ZZ) | 2Z – metal shields, both sides |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 687-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 687-2Z
What are the dimensions of bearing 687-2Z?
Bore 7 mm, outside diameter 14 mm, width 5 mm. Standardised dimensions – the same for every manufacturer.
Are 687-2Z bearings from different brands interchangeable?
Yes. 687-2Z FAG, 687 ZZ1MC3 (ZZ) NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 687-2Z cost?
At Castomer from PLN 5.02 to PLN 12.91 net per piece depending on the manufacturer (FAG, ZEN, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 687-2Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
