Deep groove ball bearing 6932 – 160×220×28 mm

5 offers · 3 manufacturers · net prices from PLN 1,063.43 · dispatch in 2 working days

6932 is a deep groove ball bearing with a 160 mm bore, 220 mm outside diameter and 28 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 160 mm
outside D: 220 mm
width B: 28 mm
sealing: open
mass: 2.71 kg
net price from: PLN 1,063.43

Dimension drawing 6932 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	160 mm
D – outside diameter	220 mm
B – width	28 mm
mass	2.71 kg

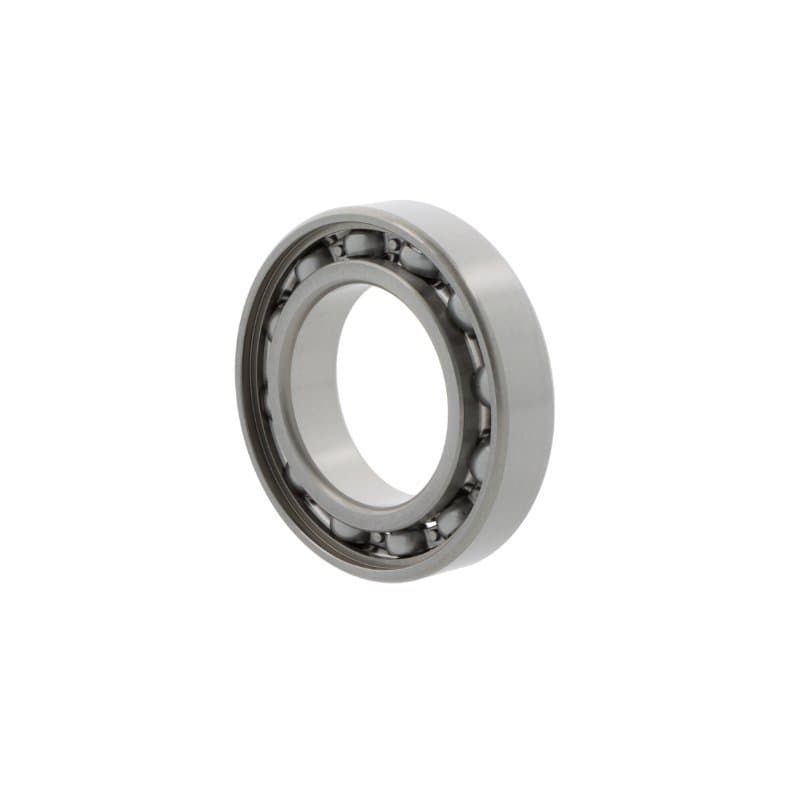

Pictured: NACHI 6932. Every brand has its own product page with photo and full description.

Brands and prices 6932

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NACHI	6932	CN	PLN 1,063.43PLN 1,308.02 gross	supplier stockdispatch in 2 working days
NTN	6932	CN	PLN 1,226.13PLN 1,508.14 gross	supplier stockdispatch in 2 working days
NSK	6932 C3	C3	PLN 1,625.83PLN 1,999.77 gross	supplier stockdispatch in 2 working days
NSK	6932	CN	PLN 1,625.83PLN 1,999.77 gross	supplier stockdispatch in 2 working days
NSK	6932 Mmachined brass cage	CN	PLN 1,866.29PLN 2,295.54 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate 6932

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NSK	6932 C3	Open
NACHI	6932	Open
NTN	6932	Open

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6932 are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6932

What are the dimensions of bearing 6932?

Bore 160 mm, outside diameter 220 mm, width 28 mm. Standardised dimensions – the same for every manufacturer.

Are 6932 bearings from different brands interchangeable?

Yes. 6932 C3 NSK, 6932 NACHI, 6932 NTN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6932 cost?

At Castomer from PLN 1,063.43 to PLN 1,866.29 net per piece depending on the manufacturer (NSK, NACHI, NTN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6932?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
