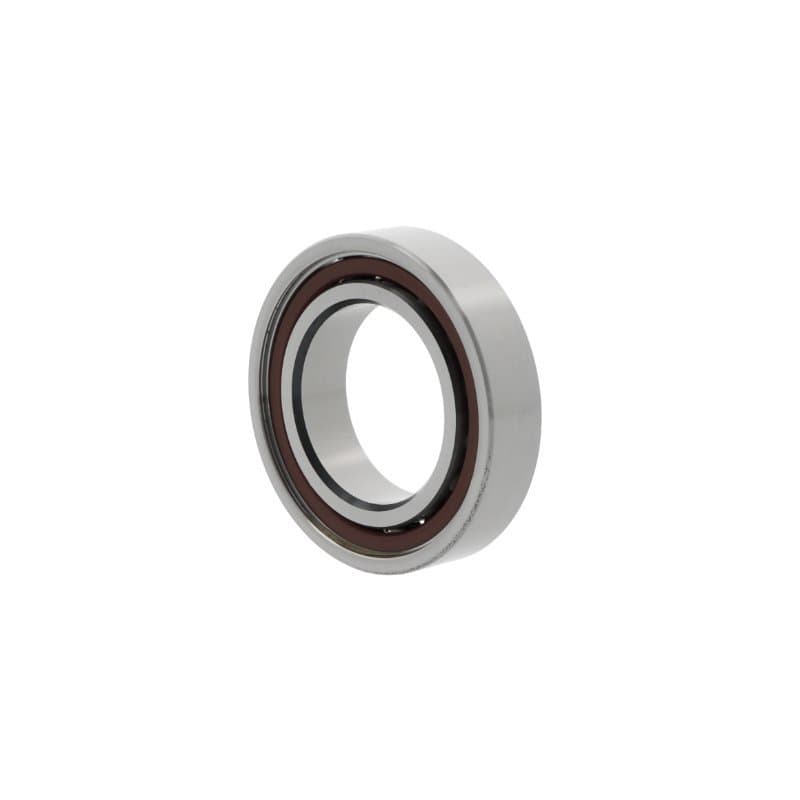

Spindle bearing 7004 – 20×42×12 mm
9 offers · 5 manufacturers · net prices from PLN 201.69 · dispatch in 2 working days
7004 is a spindle bearing with a 20 mm bore, 42 mm outside diameter and 12 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 20 mm
- outside D
- 42 mm
- width B
- 12 mm
- sealing
- open
- net price from
- PLN 201.69
Brands and prices 7004
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NACHI | 7004 CYU/GLP4tolerance class P4 (precision) | CN | PLN 201.69PLN 248.08 gross | supplier stockdispatch in 2 working days | |
| NACHI | 7004 ACYU/GLP425° contact angle, tolerance class P4 (precision) | CN | PLN 201.69PLN 248.08 gross | supplier stockdispatch in 2 working days | |
| NTN | 7004 UCGGLP42U3Gtolerance class P4 (precision) | CN | PLN 267.14PLN 328.58 gross | supplier stockdispatch in 2 working days | |
| SKF | 7004 ACDGA/P4A25° contact angle, design D (SKF), tolerance class P4 (precision) | CN | PLN 379.13PLN 466.33 gross | supplier stockdispatch in 2 working days | |
| SKF | 7004 CDGB/P4A40° contact angle, tolerance class P4 (precision) | CN | PLN 390.48PLN 480.29 gross | supplier stockdispatch in 2 working days |
▸Special designs 7004 (4) – stainless steel, snap ring, manufacturer specials
| NSK | 7004 CTYNSULP4snap ring groove, tolerance class P4 (precision) | CN | PLN 204.18PLN 251.14 gross | supplier stockdispatch in 2 working days | |
| NTN | 7004 UADGGNP42snap ring groove, tolerance class P4 (precision) | CN | PLN 250.99PLN 308.72 gross | supplier stockdispatch in 2 working days | |
| FAG | HC7004 ETP4SULreinforced design, higher load rating, tolerance class P4 (precision) | CN | PLN 599.40PLN 737.26 gross | supplier stockdispatch in 2 working days | |
| FAG | HC7004 CTP4SULtolerance class P4 (precision) | CN | PLN 618.41PLN 760.64 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 7004
The same size in another design – open, shielded, tapered bore.
How manufacturers designate 7004
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NACHI | 7004 CYU/GLP4 | Open |
| NTN | 7004 UCGGLP42U3G | Open |
| SKF | 7004 ACDGA/P4A | Open |
| FAG | HC7004 ETP4SUL | Open |
| NSK | 7004 CTYNSULP4 | Open |
Questions about 7004
What are the dimensions of bearing 7004?
Bore 20 mm, outside diameter 42 mm, width 12 mm. Standardised dimensions – the same for every manufacturer.
Are 7004 bearings from different brands interchangeable?
Yes. 7004 CYU/GLP4 NACHI, 7004 UCGGLP42U3G NTN, 7004 ACDGA/P4A SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 7004 cost?
At Castomer from PLN 201.69 to PLN 390.48 net per piece depending on the manufacturer (NACHI, NTN, SKF, FAG, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 7004?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
