Adapter/withdrawal sleeve AH24136 – 170×190×145 mm
3 offers · 3 manufacturers · net prices from PLN 1,105.00 · dispatch in 2 working days

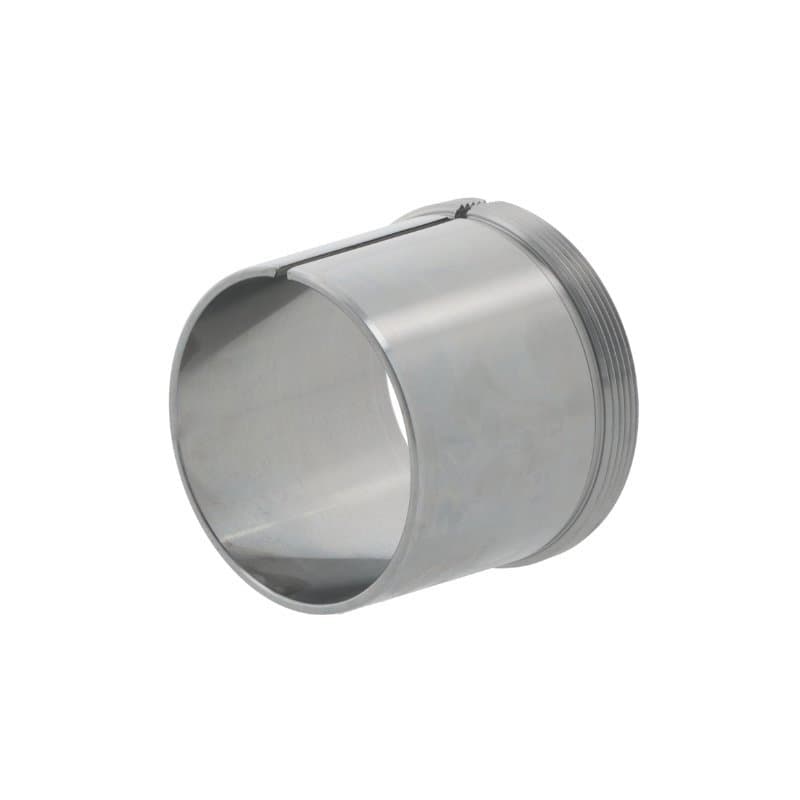

AH24136 is a adapter/withdrawal sleeve with a 170 mm bore, 190 mm outside diameter and 145 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 170 mm
- outside D
- 190 mm
- width B
- 145 mm
- sealing
- open
- mass
- 3.75 kg
- net price from
- PLN 1,105.00
Brands and prices AH24136
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| NKE | AH24136 | CN | PLN 1,105.00PLN 1,359.15 gross | supplier stockdispatch in 2 working days | |
| SKF | AH24136 | CN | PLN 1,260.09PLN 1,549.91 gross | supplier stockdispatch in 2 working days | |
| FAG | AH24136 | CN | PLN 1,511.89PLN 1,859.62 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Questions about AH24136
What are the dimensions of bearing AH24136?
Bore 170 mm, outside diameter 190 mm, width 145 mm. Standardised dimensions – the same for every manufacturer.
Are AH24136 bearings from different brands interchangeable?
Yes. AH24136 NKE, AH24136 SKF, AH24136 FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing AH24136 cost?
At Castomer from PLN 1,105.00 to PLN 1,511.89 net per piece depending on the manufacturer (NKE, SKF, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for AH24136?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
