Deep groove ball bearing BSN4090-2RS – 40×90×46 mm
2 offers · 1 manufacturer · net prices from PLN 1,850.15 · dispatch in 2 working days
BSN4090-2RS is a deep groove ball bearing with a 40 mm bore, 90 mm outside diameter and 46 mm width, with two rubber contact seals (2RS) – greased for life, maintenance-free. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 40 mm
- outside D
- 90 mm
- width B
- 46 mm
- sealing
- 2RS
- net price from
- PLN 1,850.15
Brands and prices BSN4090-2RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

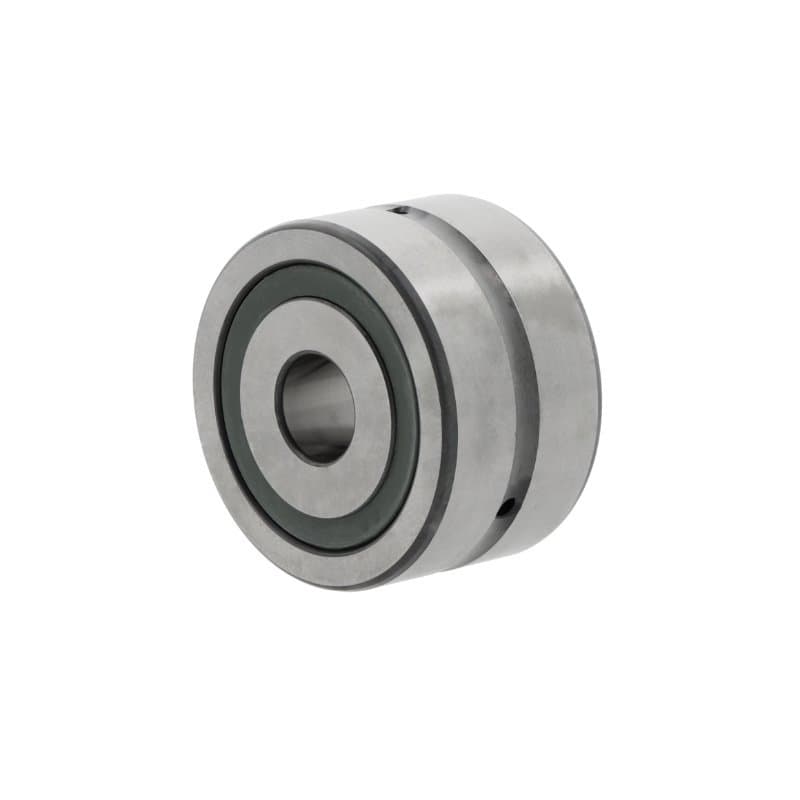

| NSK | BSN4090 DDUHP2Btolerance class P2 (highest), 40° contact angle | CN | PLN 1,850.15PLN 2,275.68 gross | supplier stockdispatch in 2 working days | |
| NSK | BSN4090 DDUHP2BDTtolerance class P2 (highest), 40° contact angle | CN | PLN 2,492.80PLN 3,066.14 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of BSN4090-2RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about BSN4090-2RS
What are the dimensions of bearing BSN4090-2RS?
Bore 40 mm, outside diameter 90 mm, width 46 mm. Standardised dimensions – the same for every manufacturer.
How much does bearing BSN4090-2RS cost?
At Castomer from PLN 1,850.15 to PLN 2,492.80 net per piece depending on the manufacturer (NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for BSN4090-2RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
