Spherical plain bearing DGE110 – 110×160×70 mm

4 offers · 2 manufacturers · net prices from PLN 482.17 · dispatch in 2 working days

DGE110 is a spherical plain bearing with a 110 mm bore, 160 mm outside diameter and 70 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 110 mm
outside D: 160 mm
width B: 70 mm
sealing: open
mass: 3.7 kg
net price from: PLN 482.17

Dimension drawing DGE110 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	110 mm
D – outside diameter	160 mm
B – width	70 mm
C – outer ring	55 mm
mass	3.7 kg

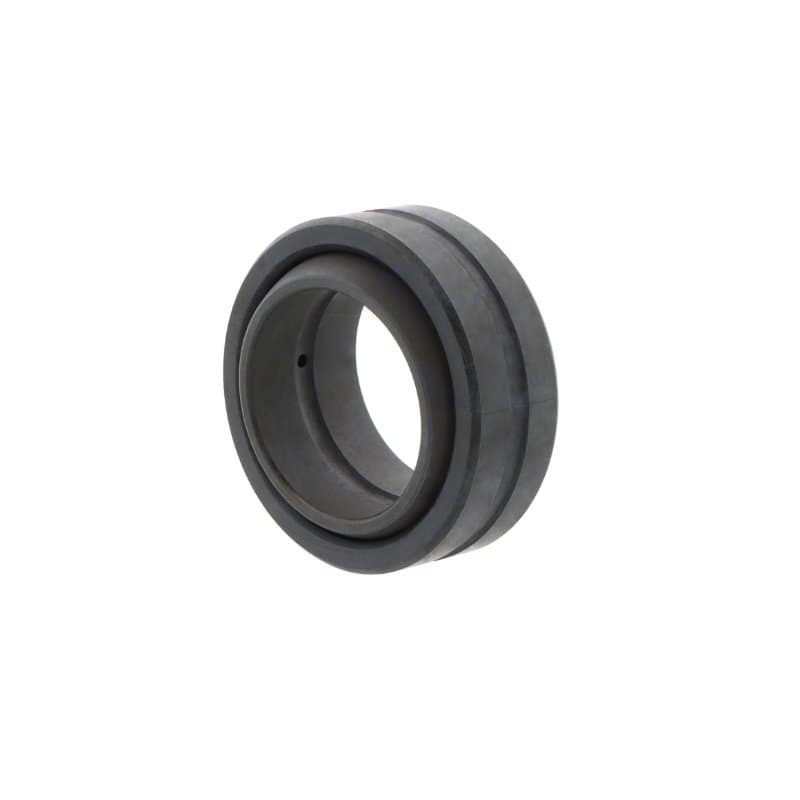

Pictured: DURBAL DGE110 ES. Every brand has its own product page with photo and full description.

Brands and prices DGE110

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
DURBAL	DGE110 ESreinforced design, higher load rating	CN	PLN 482.17PLN 593.07 gross	supplier stockdispatch in 2 working days
INNE	DGE110 SX	CN	PLN 509.01PLN 626.08 gross	supplier stockdispatch in 2 working days
INNE	DGE110 LO	CN	PLN 664.09PLN 816.83 gross	supplier stockdispatch in 2 working days
INNE	DGE110 SW	CN	PLN 1,039.02PLN 1,277.99 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of DGE110

The same size in another design – open, shielded, tapered bore.

DGE110 K-2RS2RS – rubber contact seals, both sides · Tapered bore1 offer · from PLN 936.25 net

How manufacturers designate DGE110

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
INNE	DGE110 SX	Open
DURBAL	DGE110 ES	Open

Questions about DGE110

What are the dimensions of bearing DGE110?

Bore 110 mm, outside diameter 160 mm, width 70 mm. Standardised dimensions – the same for every manufacturer.

Are DGE110 bearings from different brands interchangeable?

Yes. DGE110 SX INNE, DGE110 ES DURBAL are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing DGE110 cost?

At Castomer from PLN 482.17 to PLN 1,039.02 net per piece depending on the manufacturer (INNE, DURBAL). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for DGE110?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
