Rod end GAR70 UK2RS – 70×160×49 mm

2 offers · 2 manufacturers · net prices from PLN 701.41 · dispatch in 2 working days

GAR70 UK2RS is a rod end with a 70 mm bore, 160 mm outside diameter and 49 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 70 mm
outside D: 160 mm
width B: 49 mm
sealing: open
mass: 8.2 kg
net price from: PLN 701.41

Dimension drawing GAR70 UK2RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	70 mm
D – outside diameter	160 mm
B – width	49 mm
C – outer ring	42 mm
dynamic load rating C	440 kN
static load rating C₀	610 kN
mass	8.2 kg

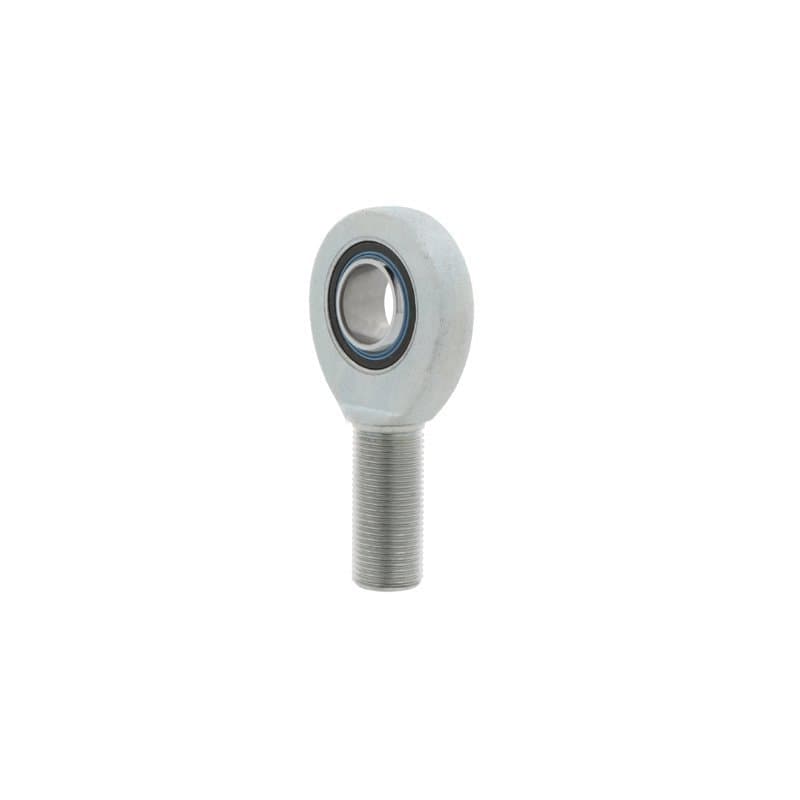

Pictured: ZEN GAR70 UK2RS. Every brand has its own product page with photo and full description.

Brands and prices GAR70 UK2RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	GAR70 UK2RS	CN	PLN 701.41PLN 862.73 gross	supplier stockdispatch in 2 working days
INA	GAR70 UK2RS	CN	PLN 1,798.03PLN 2,211.58 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate GAR70 UK2RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
ZEN	GAR70 UK2RS	Open
INA	GAR70 UK2RS	Open

Questions about GAR70 UK2RS

What are the dimensions of bearing GAR70 UK2RS?

Bore 70 mm, outside diameter 160 mm, width 49 mm. Standardised dimensions – the same for every manufacturer.

Are GAR70 UK2RS bearings from different brands interchangeable?

Yes. GAR70 UK2RS ZEN, GAR70 UK2RS INA are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing GAR70 UK2RS cost?

At Castomer from PLN 701.41 to PLN 1,798.03 net per piece depending on the manufacturer (ZEN, INA). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for GAR70 UK2RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
