Tapered roller bearing HM903249 – 44.45×95.25×30.96 mm

2 offers · 2 manufacturers · net prices from PLN 128.20 · dispatch in 2 working days

HM903249 is a tapered roller bearing with a 44.45 mm bore, 95.25 mm outside diameter and 30.96 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 44.45 mm
outside D: 95.25 mm
width B: 30.96 mm
sealing: open
net price from: PLN 128.20

Dimension drawing HM903249 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	44.45 mm
D – outside diameter	95.25 mm
T – total width	30.96 mm
B – inner ring	28.58 mm
C – outer ring	22.23 mm

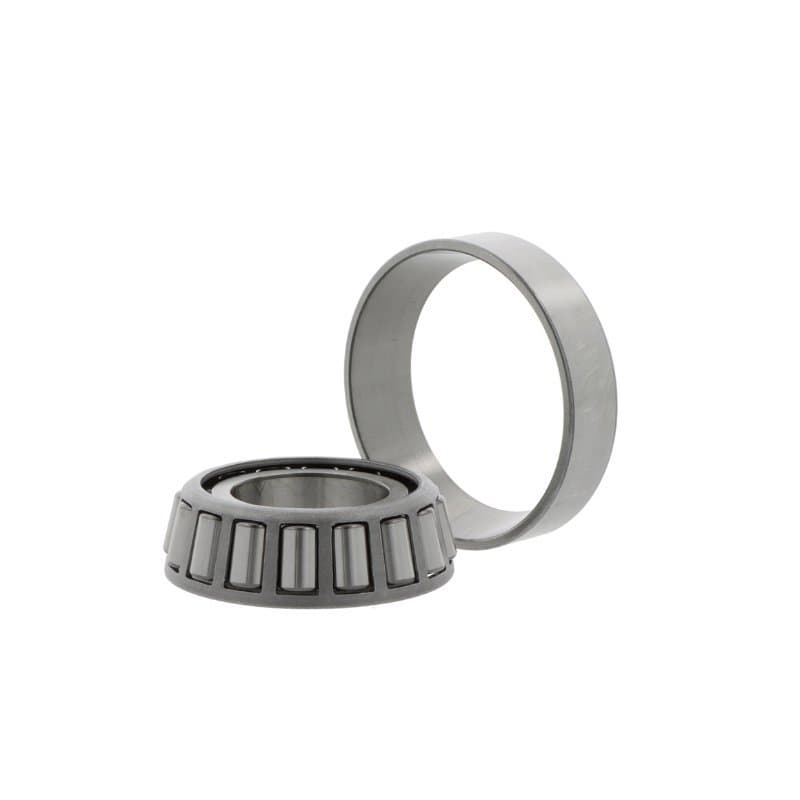

Pictured: KOYO HM903249/10. Every brand has its own product page with photo and full description.

Brands and prices HM903249

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
KOYO	HM903249/10	CN	PLN 128.20PLN 157.69 gross	supplier stockdispatch in 2 working days
TIMKEN	HM903249-99401	CN	PLN 240.52PLN 295.84 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate HM903249

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
KOYO	HM903249/10	Open
TIMKEN	HM903249-99401	Open

Questions about HM903249

What are the dimensions of bearing HM903249?

Bore 44.45 mm, outside diameter 95.25 mm, width 30.96 mm. Standardised dimensions – the same for every manufacturer.

Are HM903249 bearings from different brands interchangeable?

Yes. HM903249/10 KOYO, HM903249-99401 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing HM903249 cost?

At Castomer from PLN 128.20 to PLN 240.52 net per piece depending on the manufacturer (KOYO, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for HM903249?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
