Tapered roller bearing JM515649 – 80×130×35 mm

2 offers · 2 manufacturers · net prices from PLN 231.61 · dispatch in 2 working days

JM515649 is a tapered roller bearing with a 80 mm bore, 130 mm outside diameter and 35 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 80 mm
outside D: 130 mm
width B: 35 mm
sealing: open
net price from: PLN 231.61

Dimension drawing JM515649 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	80 mm
D – outside diameter	130 mm
T – total width	35 mm
B – inner ring	34 mm
C – outer ring	28.5 mm

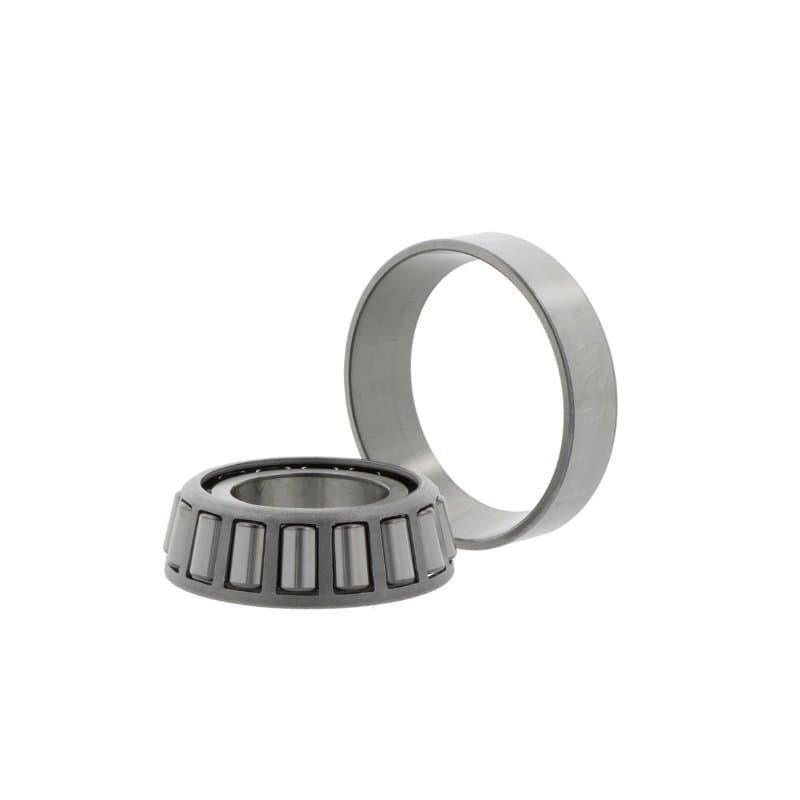

Pictured: KOYO JM515649/10. Every brand has its own product page with photo and full description.

Brands and prices JM515649

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
KOYO	JM515649/10	CN	PLN 231.61PLN 284.88 gross	supplier stockdispatch in 2 working days
TIMKEN	JM515649-99403	CN	PLN 550.80PLN 677.48 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate JM515649

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
KOYO	JM515649/10	Open
TIMKEN	JM515649-99403	Open

Questions about JM515649

What are the dimensions of bearing JM515649?

Bore 80 mm, outside diameter 130 mm, width 35 mm. Standardised dimensions – the same for every manufacturer.

Are JM515649 bearings from different brands interchangeable?

Yes. JM515649/10 KOYO, JM515649-99403 TIMKEN are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing JM515649 cost?

At Castomer from PLN 231.61 to PLN 550.80 net per piece depending on the manufacturer (KOYO, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for JM515649?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
