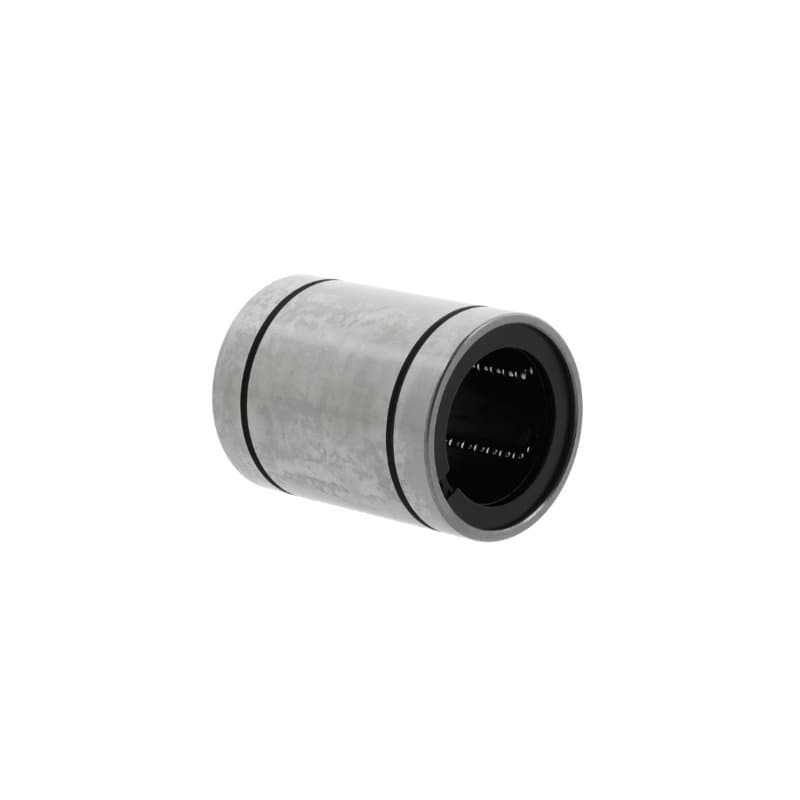

Linear bushing LM35 – 35×52×70 mm
3 offers · 3 manufacturers · net prices from PLN 33.53 · dispatch in 2 working days
LM35 is a linear bushing with a 35 mm bore, 52 mm outside diameter and 70 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 35 mm
- outside D
- 52 mm
- width B
- 70 mm
- sealing
- open
- mass
- 0.39 kg
- net price from
- PLN 33.53
Brands and prices LM35
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
Can't see your brand? Ask for an offer – we reply within 24 h.
Questions about LM35
What are the dimensions of bearing LM35?
Bore 35 mm, outside diameter 52 mm, width 70 mm. Standardised dimensions – the same for every manufacturer.
Are LM35 bearings from different brands interchangeable?
Yes. LM35 ZEN, LM35 SAMICK, LM35 THK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing LM35 cost?
At Castomer from PLN 33.53 to PLN 232.42 net per piece depending on the manufacturer (ZEN, SAMICK, THK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for LM35?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
