Needle roller bearing NKI100 – 100×130×30 mm

7 offers · 3 manufacturers · net prices from PLN 271.63 · dispatch in 2 working days

NKI100 is a needle roller bearing with a 100 mm bore, 130 mm outside diameter and 30 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 100 mm
outside D: 130 mm
width B: 30 mm
sealing: open
mass: 1.33 kg
net price from: PLN 271.63

Dimension drawing NKI100 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	100 mm
D – outside diameter	130 mm
B – width	30 mm
mass	1.33 kg

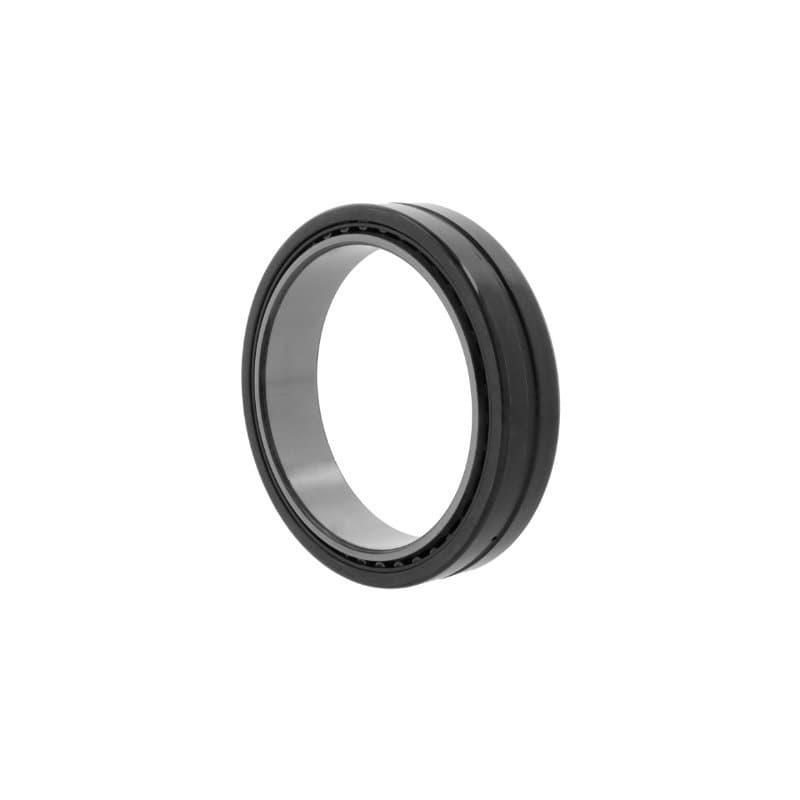

Pictured: NKE NKI100/30. Every brand has its own product page with photo and full description.

Brands and prices NKI100

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	NKI100/30	CN	PLN 271.63PLN 334.10 gross	supplier stockdispatch in 2 working days
NKE	NKI100/40	CN	PLN 320.87PLN 394.67 gross	supplier stockdispatch in 2 working days
INA	NKI100/30	CN	PLN 522.82PLN 643.07 gross	supplier stockdispatch in 2 working days
INA	NKI100/40	CN	PLN 618.46PLN 760.71 gross	supplier stockdispatch in 2 working days
INA	NKI100/40-C3	C3	PLN 618.46PLN 760.71 gross	supplier stockdispatch in 2 working days
SKF	NKI100/30	CN	PLN 767.82PLN 944.42 gross	supplier stockdispatch in 2 working days
SKF	NKI100/40	CN	PLN 876.63PLN 1,078.25 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate NKI100

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
INA	NKI100/30	Open
NKE	NKI100/30	Open
SKF	NKI100/30	Open

Questions about NKI100

What are the dimensions of bearing NKI100?

Bore 100 mm, outside diameter 130 mm, width 30 mm. Standardised dimensions – the same for every manufacturer.

Are NKI100 bearings from different brands interchangeable?

Yes. NKI100/30 INA, NKI100/30 NKE, NKI100/30 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing NKI100 cost?

At Castomer from PLN 271.63 to PLN 876.63 net per piece depending on the manufacturer (INA, NKE, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for NKI100?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
