Needle roller bearing NKIA59/22 – 22×39×23 mm

4 offers · 4 manufacturers · net prices from PLN 76.30 · dispatch in 2 working days

NKIA59/22 is a needle roller bearing with a 22 mm bore, 39 mm outside diameter and 23 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 22 mm
outside D: 39 mm
width B: 23 mm
sealing: open
mass: 0.12 kg
net price from: PLN 76.30

Dimension drawing NKIA59/22 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	22 mm
D – outside diameter	39 mm
B – width	23 mm
mass	0.12 kg

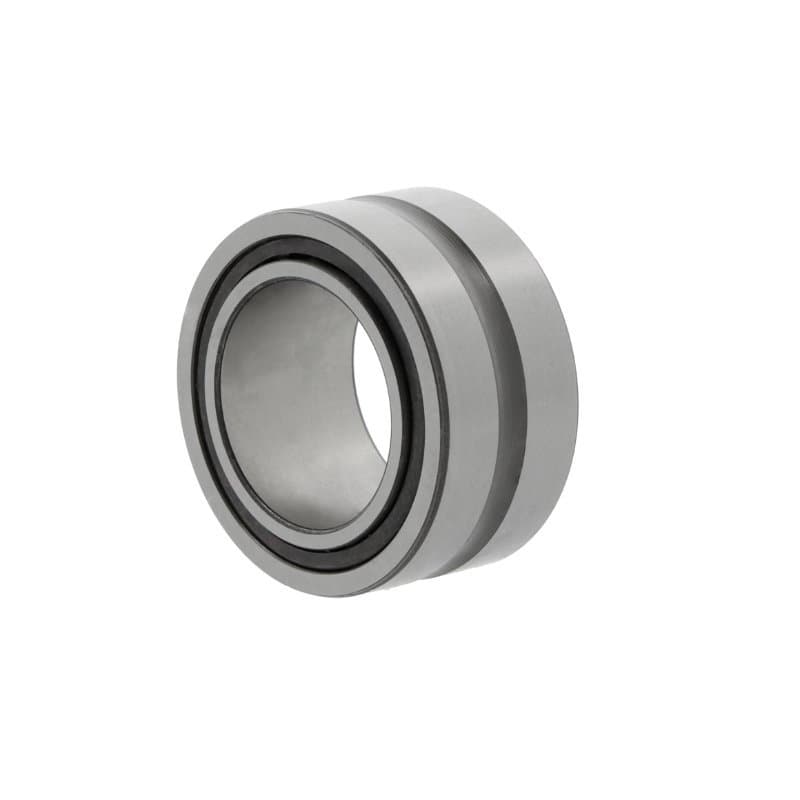

Pictured: NKE NKIA59/22. Every brand has its own product page with photo and full description.

Brands and prices NKIA59/22

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	NKIA59/22	CN	PLN 76.30PLN 93.85 gross	supplier stockdispatch in 2 working days
ZEN	NKIA59/22	CN	PLN 102.66PLN 126.27 gross	supplier stockdispatch in 2 working days
INA	NKIA59/22	CN	PLN 145.80PLN 179.33 gross	supplier stockdispatch in 2 working days
SKF	NKIA59/22	CN	PLN 192.29PLN 236.52 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate NKIA59/22

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NKE	NKIA59/22	Open
ZEN	NKIA59/22	Open
INA	NKIA59/22	Open
SKF	NKIA59/22	Open

Questions about NKIA59/22

What are the dimensions of bearing NKIA59/22?

Bore 22 mm, outside diameter 39 mm, width 23 mm. Standardised dimensions – the same for every manufacturer.

Are NKIA59/22 bearings from different brands interchangeable?

Yes. NKIA59/22 NKE, NKIA59/22 ZEN, NKIA59/22 INA, NKIA59/22 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing NKIA59/22 cost?

At Castomer from PLN 76.30 to PLN 192.29 net per piece depending on the manufacturer (NKE, ZEN, INA, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for NKIA59/22?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
