Cylindrical roller bearing NN3024 K – 120×180×46 mm
4 offers · 3 manufacturers · net prices from PLN 2,127.38 · dispatch in 2 working days
NN3024 K is a cylindrical roller bearing with a 120 mm bore, 180 mm outside diameter and 46 mm width, open design (no seals) – for externally lubricated arrangements with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 180 mm
- width B
- 46 mm
- sealing
- open
- mass
- 4.1 kg
- net price from
- PLN 2,127.38
Brands and prices NN3024 K
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

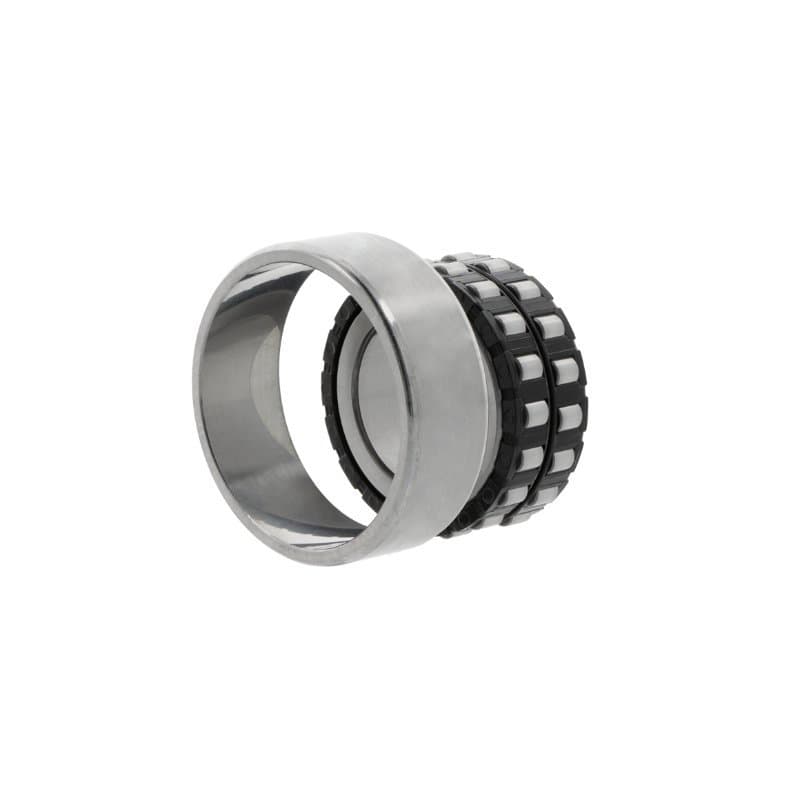

| FAG | NN3024 K.DTVSPtapered bore, taper 1:12, glass-fibre reinforced polyamide cage (FAG) | CN | PLN 2,127.38PLN 2,616.68 gross | supplier stockdispatch in 2 working days | |
| SKF | NN3024 K.TN9SPtapered bore, taper 1:12, glass-fibre reinforced PA66 cage (SKF) | CN | PLN 2,315.67PLN 2,848.27 gross | supplier stockdispatch in 2 working days | |
| SKF | NN3024 K.TN9SPW33tapered bore, taper 1:12, glass-fibre reinforced PA66 cage (SKF), lubrication groove and holes in the outer ring | CN | PLN 2,315.73PLN 2,848.35 gross | supplier stockdispatch in 2 working days | |
| NSK | NN3024 MBKRE44CC1P4machined brass cage, inner ring centred, tapered bore, taper 1:12, reinforced design, higher load rating | CN | PLN 2,396.53PLN 2,947.73 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of NN3024
The same size in another design – open, shielded, tapered bore.
How manufacturers designate NN3024 K
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | NN3024 K.TN9SP | Open |
| FAG | NN3024 K.DTVSP | Open |
| NSK | NN3024 MBKRE44CC1P4 | Open |
Questions about NN3024 K
What are the dimensions of bearing NN3024 K?
Bore 120 mm, outside diameter 180 mm, width 46 mm. Standardised dimensions – the same for every manufacturer.
Are NN3024 K bearings from different brands interchangeable?
Yes. NN3024 K.TN9SP SKF, NN3024 K.DTVSP FAG, NN3024 MBKRE44CC1P4 NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing NN3024 K cost?
At Castomer from PLN 2,127.38 to PLN 2,396.53 net per piece depending on the manufacturer (SKF, FAG, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for NN3024 K?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
