Cylindrical roller bearing NU1028 – 140×210×33 mm

7 offers · 3 manufacturers · net prices from PLN 1,224.93 · dispatch in 2 working days

NU1028 is a cylindrical roller bearing with a 140 mm bore, 210 mm outside diameter and 33 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 140 mm
outside D: 210 mm
width B: 33 mm
sealing: open
mass: 4 kg
net price from: PLN 1,224.93

Dimension drawing NU1028 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	140 mm
D – outside diameter	210 mm
B – width	33 mm
mass	4 kg

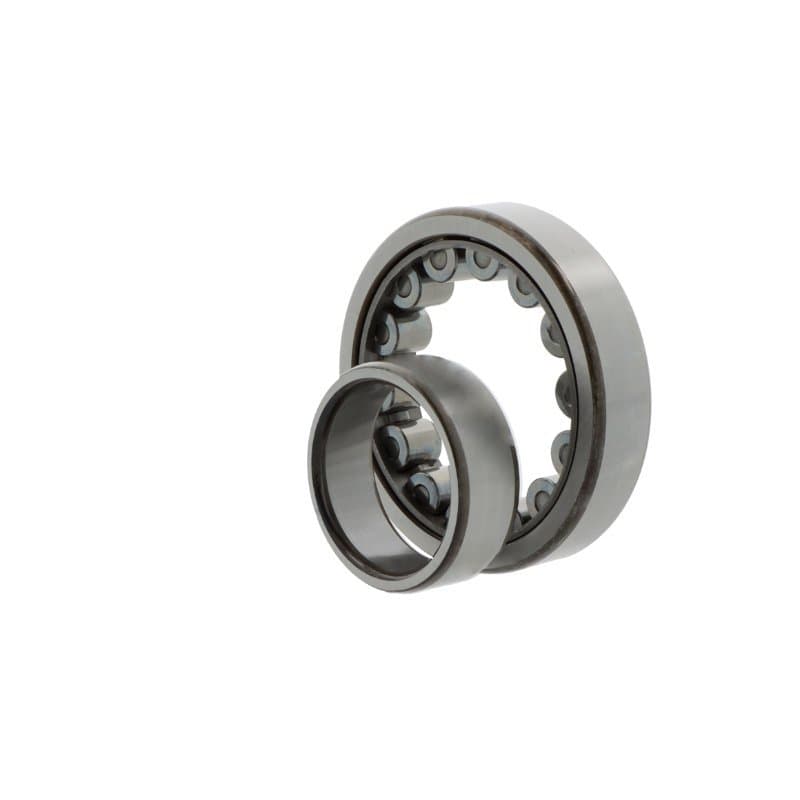

Pictured: KOYO NU1028 C3. Every brand has its own product page with photo and full description.

Brands and prices NU1028

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
KOYO	NU1028 C3	C3	PLN 1,224.93PLN 1,506.66 gross	supplier stockdispatch in 2 working days
FAG	NU1028 M1machined brass cage	CN	PLN 1,380.94PLN 1,698.56 gross	supplier stockdispatch in 2 working days
FAG	NU1028 M1Amachined brass cage	CN	PLN 1,380.94PLN 1,698.56 gross	supplier stockdispatch in 2 working days
FAG	NU1028 M1C3machined brass cage	CN	PLN 1,380.94PLN 1,698.56 gross	supplier stockdispatch in 2 working days
FAG	NU1028 M1AC3machined brass cage	C3	PLN 1,380.94PLN 1,698.56 gross	supplier stockdispatch in 2 working days
SKF	NU1028 MLone-piece machined brass cage	CN	PLN 1,490.40PLN 1,833.19 gross	supplier stockdispatch in 2 working days
SKF	NU1028 MC3machined brass cage	C3	PLN 1,526.74PLN 1,877.89 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate NU1028

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	NU1028 M1	Open
SKF	NU1028 ML	Open
KOYO	NU1028 C3	Open

Questions about NU1028

What are the dimensions of bearing NU1028?

Bore 140 mm, outside diameter 210 mm, width 33 mm. Standardised dimensions – the same for every manufacturer.

Are NU1028 bearings from different brands interchangeable?

Yes. NU1028 M1 FAG, NU1028 ML SKF, NU1028 C3 KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing NU1028 cost?

At Castomer from PLN 1,224.93 to PLN 1,526.74 net per piece depending on the manufacturer (FAG, SKF, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for NU1028?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
