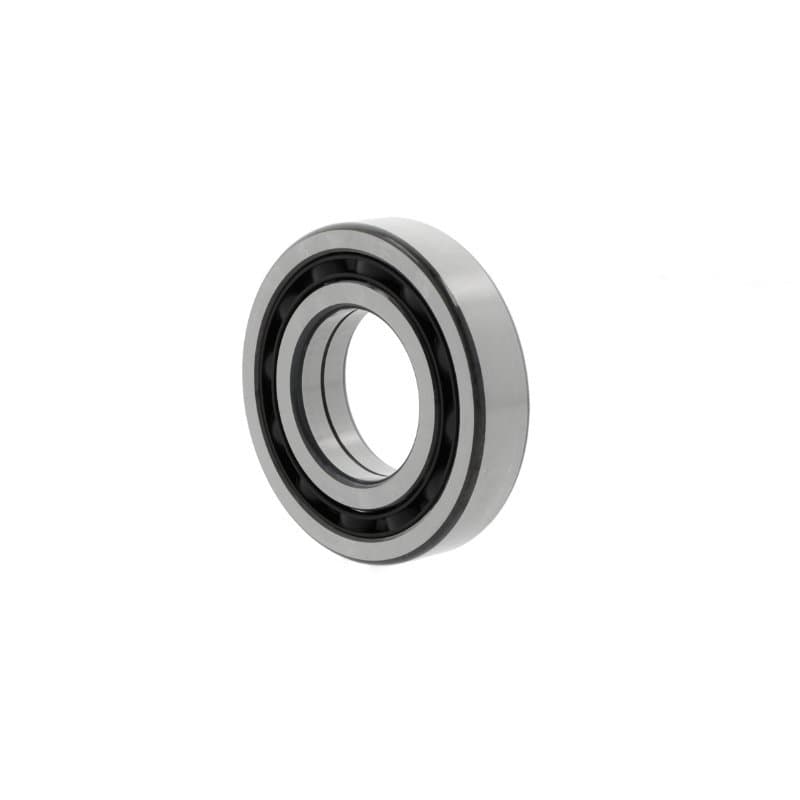

Angular contact ball bearing QJ214 – 70×125×24 mm
8 offers · 2 manufacturers · net prices from PLN 329.07 · dispatch in 2 working days
QJ214 is a angular contact ball bearing with a 70 mm bore, 125 mm outside diameter and 24 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 70 mm
- outside D
- 125 mm
- width B
- 24 mm
- sealing
- open
- mass
- 1.3 kg
- net price from
- PLN 329.07
Brands and prices QJ214
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| FAG | QJ214 TVPC3polyamide window cage (FAG) | C3 | PLN 329.07PLN 404.76 gross | supplier stockdispatch in 2 working days | |
| FAG | QJ214 TVPpolyamide window cage (FAG) | CN | PLN 329.07PLN 404.76 gross | supplier stockdispatch in 2 working days | |
| FAG | QJ214 MPAmachined brass cage | CN | PLN 450.79PLN 554.47 gross | supplier stockdispatch in 2 working days | |
| FAG | QJ214 MPAC3machined brass cage | C3 | PLN 450.79PLN 554.47 gross | supplier stockdispatch in 2 working days | |
| SKF | QJ214 MAC3machined brass cage, outer ring centred | C3 | PLN 722.95PLN 889.23 gross | supplier stockdispatch in 2 working days |
▸Special designs QJ214 (3) – stainless steel, snap ring, manufacturer specials
| FAG | QJ214-N2-MPA-C3snap ring groove, machined brass cage | C3 | PLN 457.87PLN 563.18 gross | supplier stockdispatch in 2 working days | |
| SKF | QJ214 N2PHAS/C2Lsnap ring groove | C2 | PLN 548.10PLN 674.16 gross | supplier stockdispatch in 2 working days | |
| SKF | QJ214 N2MAsnap ring groove | CN | PLN 588.23PLN 723.52 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate QJ214
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | QJ214 TVPC3 | Open |
| SKF | QJ214 MAC3 | Open |
Questions about QJ214
What are the dimensions of bearing QJ214?
Bore 70 mm, outside diameter 125 mm, width 24 mm. Standardised dimensions – the same for every manufacturer.
Are QJ214 bearings from different brands interchangeable?
Yes. QJ214 TVPC3 FAG, QJ214 MAC3 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing QJ214 cost?
At Castomer from PLN 329.07 to PLN 722.95 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for QJ214?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
