Angular contact ball bearing QJ218 – 90×160×30 mm

4 offers · 2 manufacturers · net prices from PLN 840.72 · dispatch in 2 working days

QJ218 is a angular contact ball bearing with a 90 mm bore, 160 mm outside diameter and 30 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 90 mm
outside D: 160 mm
width B: 30 mm
sealing: open
mass: 2.72 kg
net price from: PLN 840.72

Dimension drawing QJ218 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	90 mm
D – outside diameter	160 mm
B – width	30 mm
mass	2.72 kg

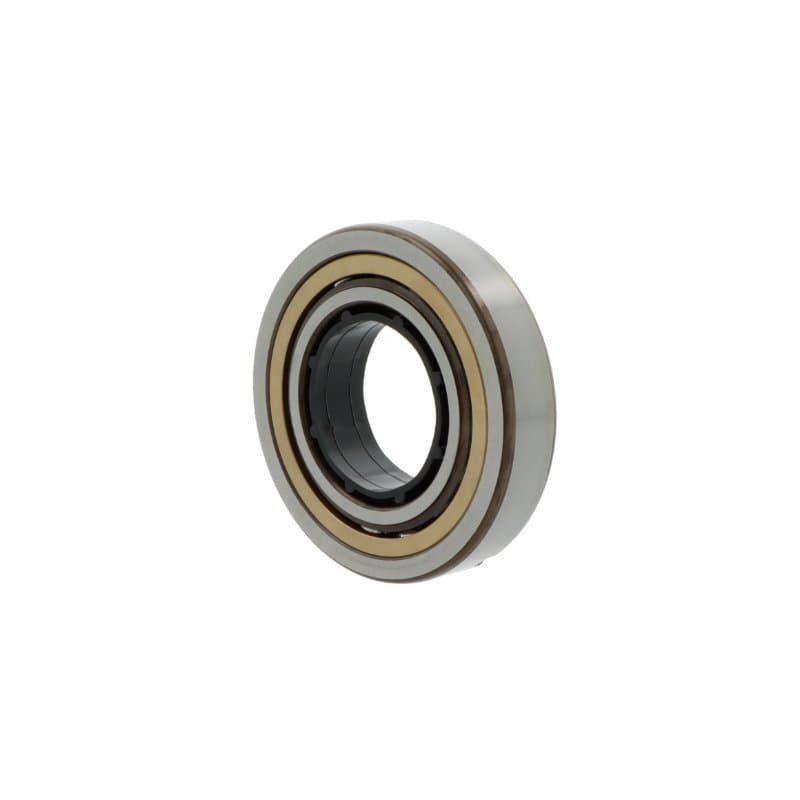

Pictured: FAG QJ218 N2MPA. Every brand has its own product page with photo and full description.

Brands and prices QJ218

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

No standard items with this clearance – see the special designs below.

▸Special designs QJ218 (4) – stainless steel, snap ring, manufacturer specials

FAG	QJ218 N2MPAsnap ring groove	CN	PLN 840.72PLN 1,034.09 gross	supplier stockdispatch in 2 working days
FAG	QJ218 N2MPAC3snap ring groove	C3	PLN 840.72PLN 1,034.09 gross	supplier stockdispatch in 2 working days
SKF	QJ218 N2MAsnap ring groove	CN	PLN 1,164.41PLN 1,432.22 gross	supplier stockdispatch in 2 working days
SKF	QJ218 N2MAC3snap ring groove	C3	PLN 1,247.56PLN 1,534.50 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate QJ218

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	QJ218 N2MPA	Open
SKF	QJ218 N2MA	Open

Questions about QJ218

What are the dimensions of bearing QJ218?

Bore 90 mm, outside diameter 160 mm, width 30 mm. Standardised dimensions – the same for every manufacturer.

How much does bearing QJ218 cost?

At Castomer from PLN 840.72 to PLN 1,247.56 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for QJ218?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
